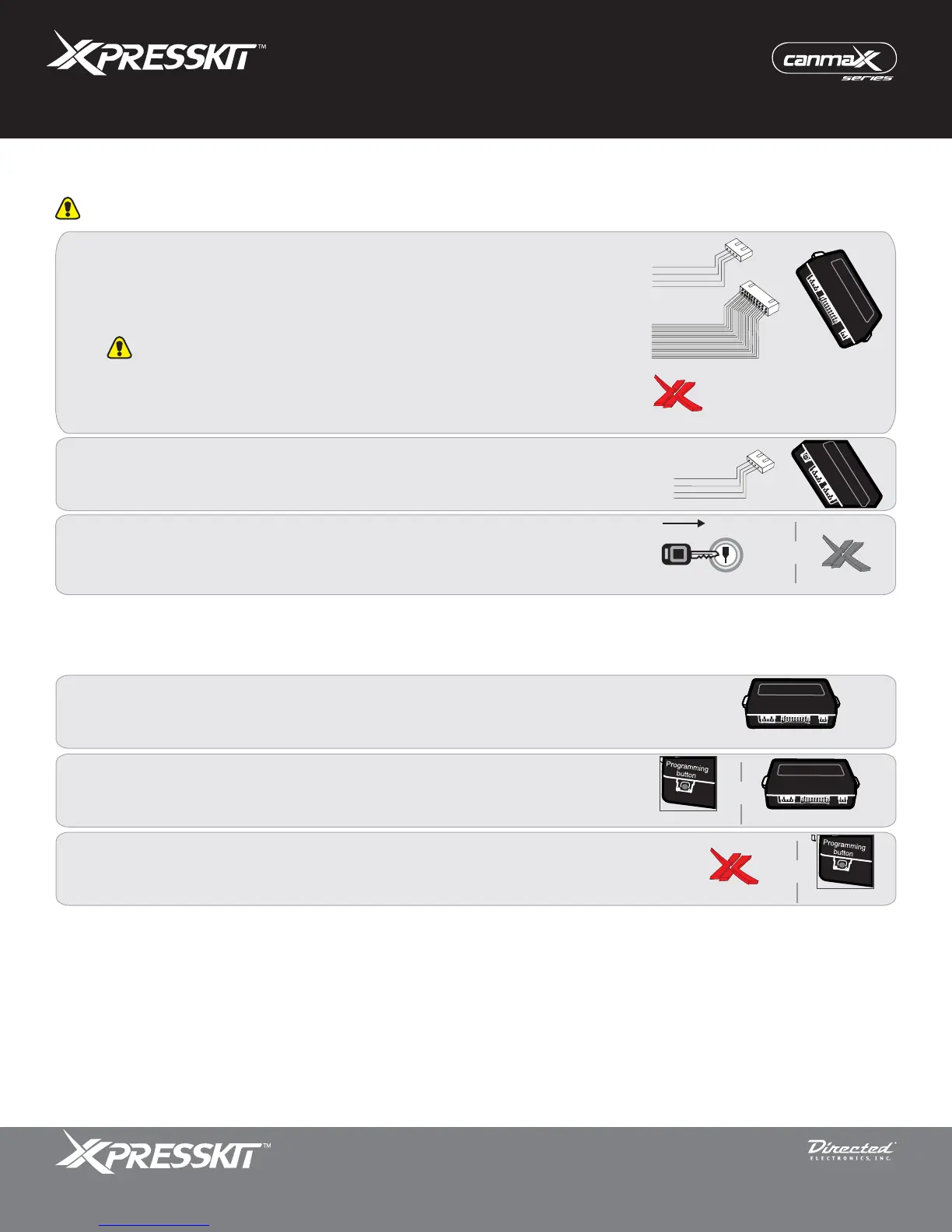

Vehicle Canbus Integration System
The Mobile Integration Systems
Page 10
1
2
3
Disconnect the module from any power source.
Press and HOLD the Integrated Programming Button (IPB).
While holding the button, connect the module to the power source.
Wait until the red LED flashes once and release the Integrated Programming
Button (IPB).
Flashes Once
&
Release
Disconnect from Power
&
Press & Hold
Connect to Power
Module Reset
3
Insert the key into the ignition barrel and turn it to ON. Wait for the LED
to turn OFF (it could take up to 10 seconds). The module is now
programmed and ready to use.
1
The LED turns ON solid.
If connected in D2D:
Connect the 4-pin D2D and the 20-pin harnesses.
If connected in W2W:
Connect the 20-pin harness.
Caution! The 20-pin connector can be easily plugged in backwards.
4-pin
20-pin
On Solid
&
Off
KEY
KeyatON
START
OFF
ON
Module Programming for Types 5 and 6
Refer to the LED Diagnostics section on page 11 for more information and for troubleshooting purposes.
