Xpresskit XK09 User Manual

Rev.: 20110111
Platform: XK09
Firmware: CHRYSLER
© 2011 Directed Electronics. All rights reserved.
Vehicle Canbus Integration System
The Mobile Integration Systems
Page 6

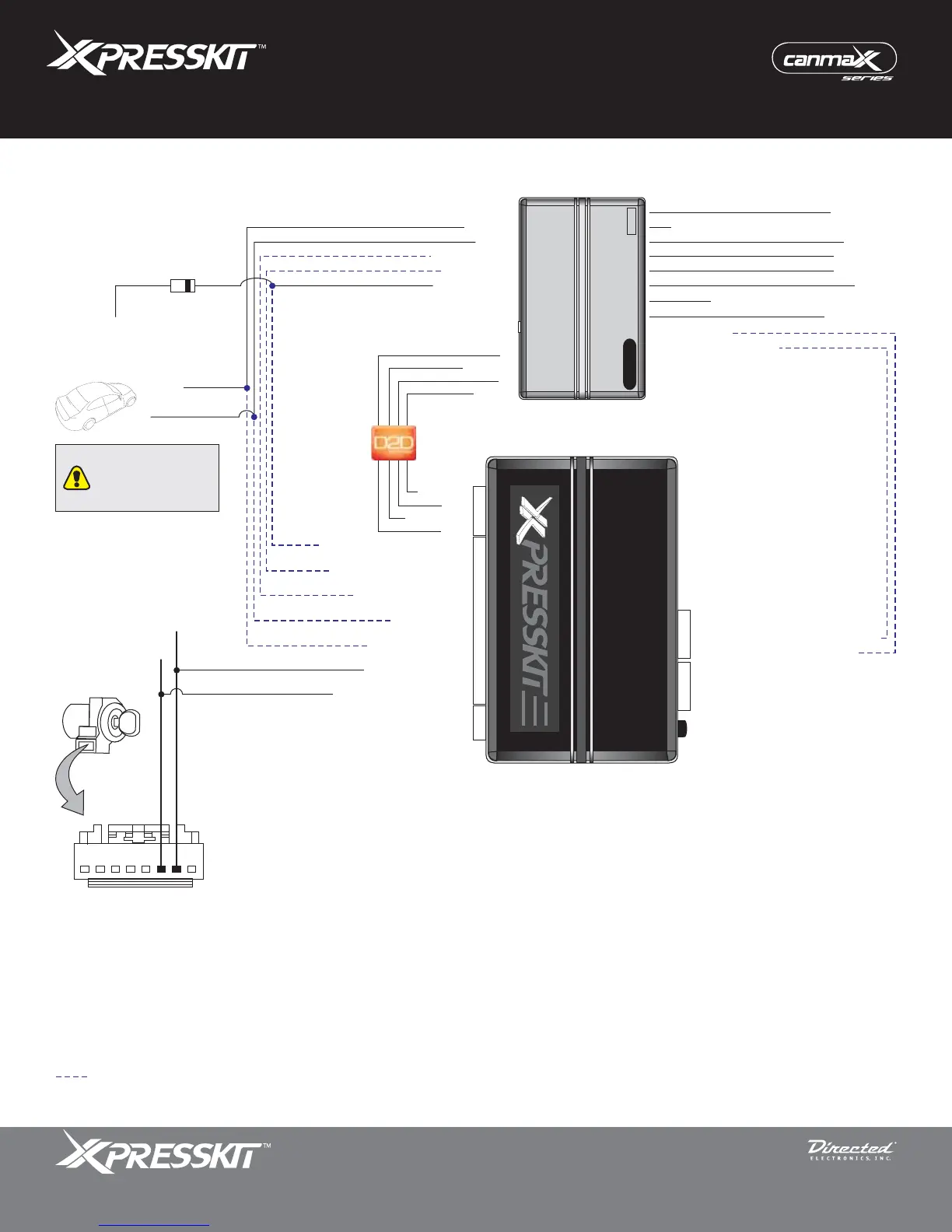

Installation Type 4
* The Tach wire is an optional connection required on some remote starters not supporting tach signal in D2D.
Not required in D2D mode.
18
Facing view
CAN Low, Pin 7
CAN High, Pin 6
Programming Button
4
20
2
1: (+) 12 V
2: RX
3: (-) Ground
4: TX
2: Green: (-) Door/Trunk Sense Output
1: Violet/White: (AC) Tach Output*
Remote
Starter
3: -
4: -
(AC) Tach Input*
(-) Door/Trunk Sense Input
Parking Lights
(-) Neutral Safety (DEI platforms only)
(-) Hood
(+) Ignition 2
(+) Ignition 1
(+) Starter
(+) Accessory 1x (2x for Dodge Durango only)
(-) Accessory
(+) 12 V
RX
(-) Ground
(-) Ground
TX
(+) 12 V
(-) Unlock Output
(-) Lock Output
(-) GWR (status)
9: Red: (+) 12 V
1: Blue/White: (-) GWR (status)
3: Light Green: (-) Lock Input
5: Blue: (-) Unlock Input
10: Black: (-) Ground
19: Tan: FTCAN Low
20: Tan/Black: FTCAN High
(+) 12 V
(-) Ground
(-) Key Sense
XK09
Connect Key Sense
wire only if vehicle is
equipped with OEM
alarm.
