Xpresskit XK09 User Manual

Rev.: 20110111
Platform: XK09
Firmware: CHRYSLER
© 2011 Directed Electronics. All rights reserved.
Vehicle Canbus Integration System
The Mobile Integration Systems
Installation Type 3
Page 5
Programming Button
4
4
4
20
2

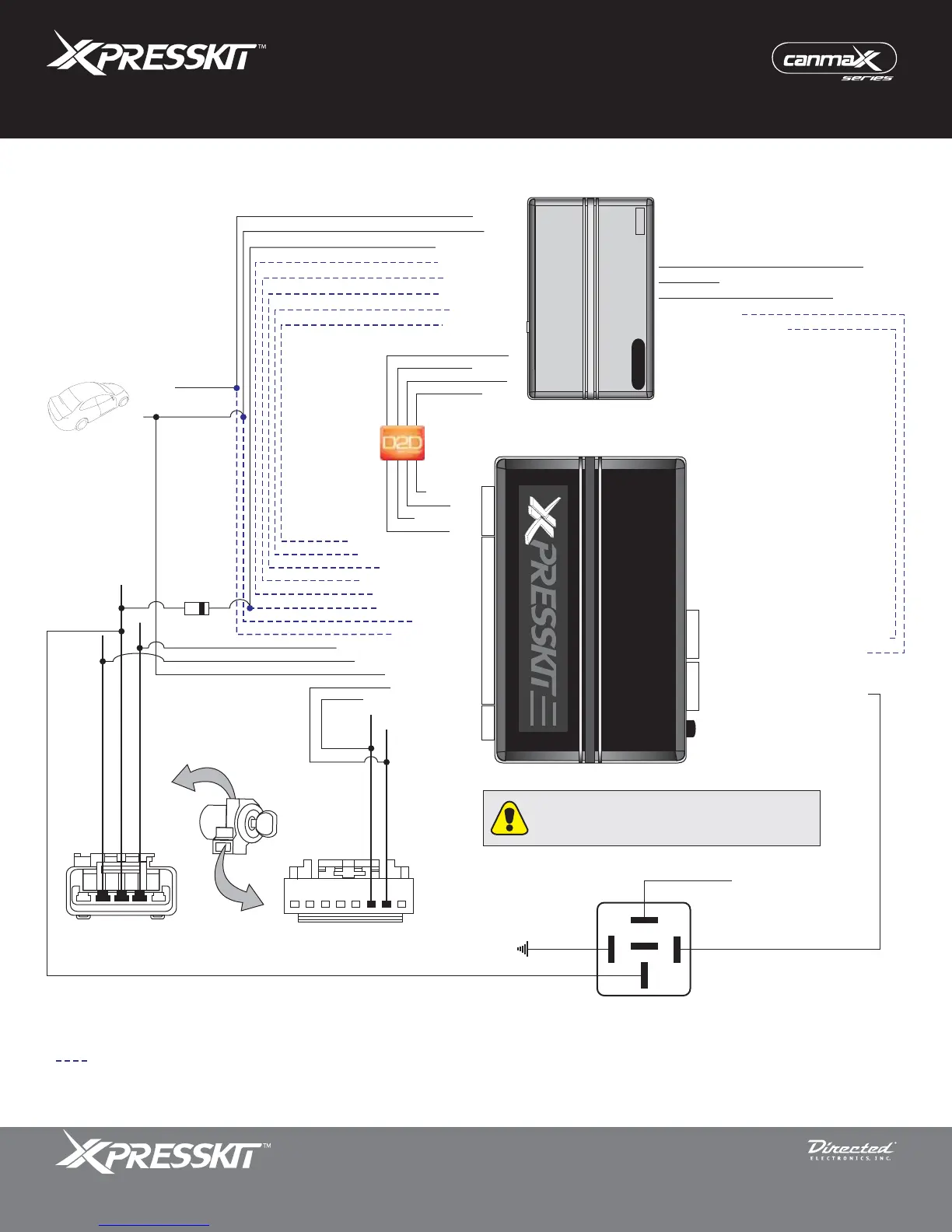

1: (+) 12 V
2: RX
3: (-) Ground
4: TX
2: Green: (-) Door/Trunk Sense Output
1: Violet/White: (AC) Tach Output*
Remote
Starter
3: -
4: -
(AC) Tach Input*
(-) Door/Trunk Sense Input
Parking Lights
(-) Neutral Safety (DEI platforms only)
(-) Hood
9: Red: (+) 12 V
1: Blue/White: (-) GWR (status)
3: Light Green: (-) Lock Input
5: Blue: (-) Unlock Input
6: Red/White: (-) Trunk Input
7: Violet: (+) Starter Input
8: Pink: (+) Ignition Input
(+) 12 V
RX
(-) Ground
TX
10: Black: (-) Ground
19: Tan: FTCAN Low
16: Brown: (+) 12 V***
20: Tan/Black: FTCAN High
(+) 12 V
(-) Ground
13: Violet/Brown: Multiplex Output
15: Yellow: (+) Start Output***
Violet/Brown, Pin 2
(+) Ignition, Pin 3
(+) Start, Pin 4
51
Facing view
18
Facing view
CAN Low, Pin 7
CAN High, Pin 6
(-) Ground
(+) 12 V
(+) Ignition Output
(-) Trunk Output
(+) Starter Output
(-) Unlock Output
(-) Lock Output
(-) GWR (status)
XK09
1: -
2: Pink/White: (+) Ignition Output**
3: -
4: -
** If the kit you have purchased does not include a 4-pin black harness to accommodate the Ignition wire, use a D2D or relay pack harness.
* The Tach wire is an optional connection required on some remote starters not supporting tach signal in D2D.
Not required in D2D mode.
*** Only connect the Brown and the Yellow wires
if a (+) Start wire is present at the ignition switch
connector, on pin 4.
30
86
85
87
87a
(+) 12 V
(-) Ground
