Xpresskit XK09 User Manual

Rev.: 20110111
Platform: XK09
Firmware: CHRYSLER
© 2011 Directed Electronics. All rights reserved.
Vehicle Canbus Integration System
The Mobile Integration Systems

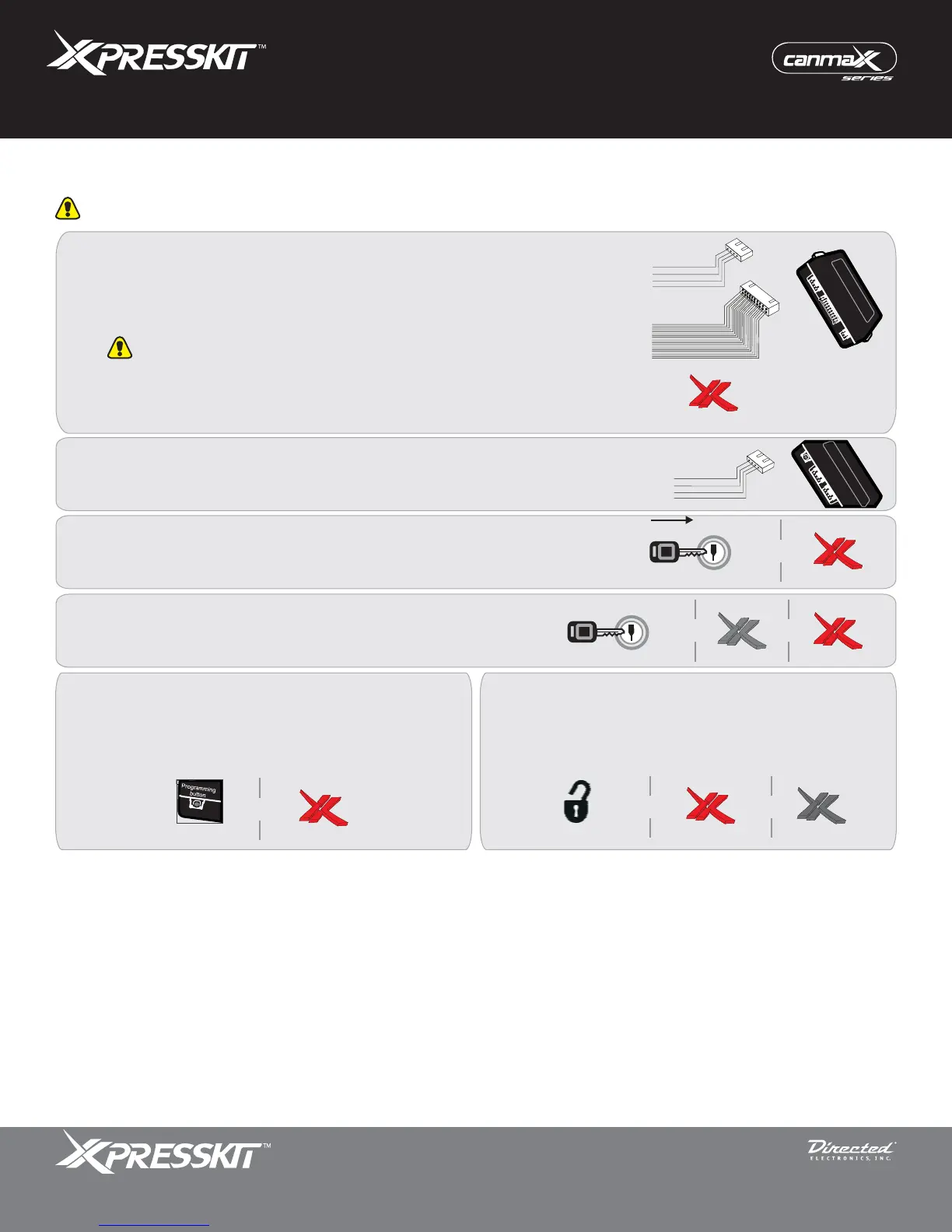

Module Programming for Types 1 to 4
Page 9
3
4
Turn the key back to the OFF position.
Insert the key into the ignition barrel and turn it to ON. Wait for the LED
to start flashing slowly.
&&
START
OFF
KEY
KeyatOFF
ON
Flashes
&
KEY
KeyatON
START
OFF
ON
Flashes
Off
1
The LED turns ON solid or flashes rapidly.
4-pin
20-pin
On Solid or Flashes
5
& &
Press Unlock
On 3 secs
Off
Press the UNLOCK button on the factory keyless
remote. The LED turns ON solid for 3 seconds
and then turns OFF. The module is now
programmed and ready to operate.
5
Press the module Integrated Programming
Button (IPB). The LED turns ON solid for 3
seconds, then turns OFF. The module is now
programmed.
&
FlashesPress
If connected in D2D:
Connect the 4-pin D2D and the 20-pin harnesses.
If connected in W2W:
Connect the 20-pin harness.
Caution! The 20-pin connector can be easily plugged in backwards.
WITHOUT Factory Keyless Remote
WITH Factory Keyless Remote
Refer to the LED Diagnostics section on page 11 for more information and for troubleshooting purposes.
2
Connect one or both of the other 4-pin harnesses, depending on the
requirements of each installation types.
4-pin
