901304
SB M3x4
901304
SB M3x4
303123-K
SHIM 3x6x2
303122-K
SHIM 3x6x1

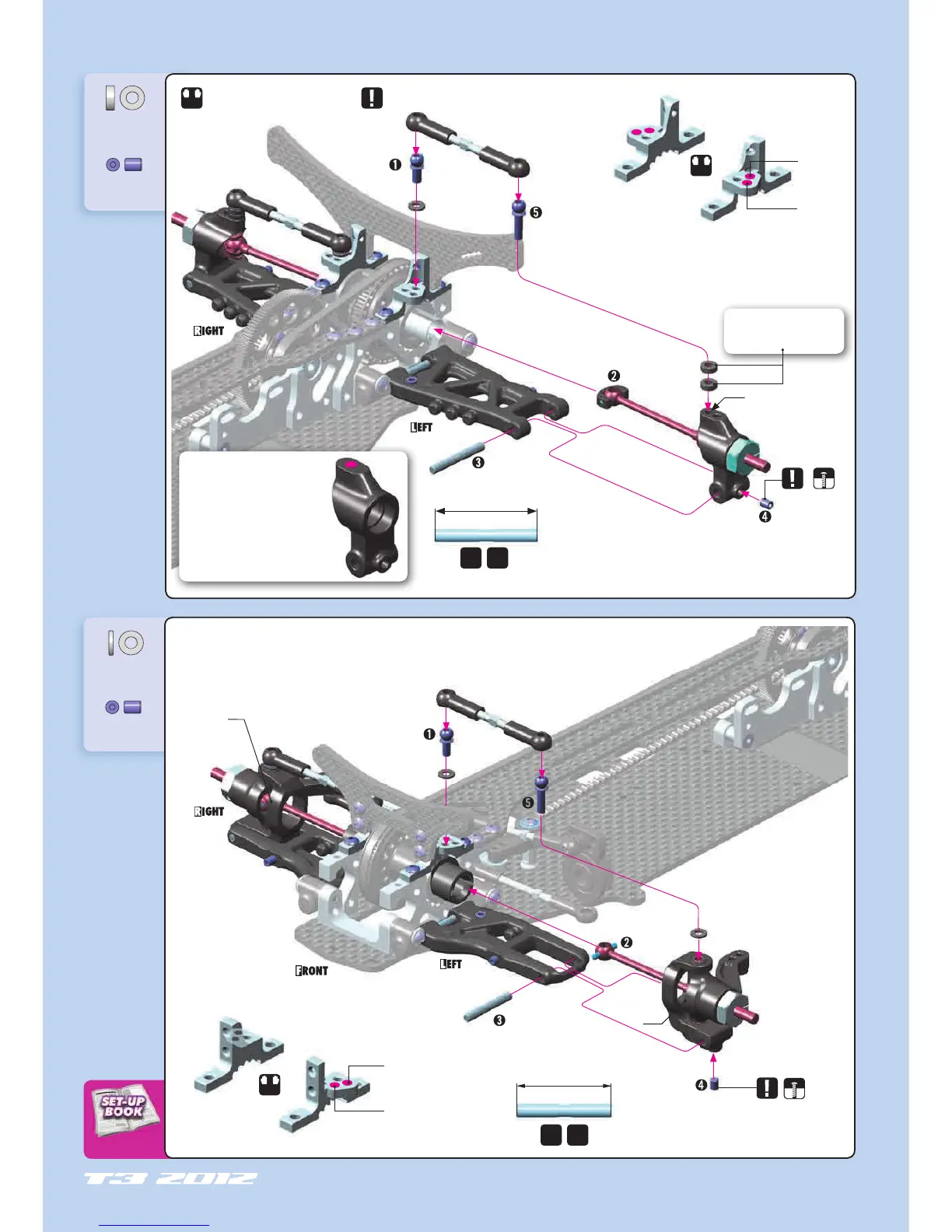

0° OUTBOARD TOE-IN UPRIGHTS
ALU SHIM
3x6x1mm
ALU SHIM
3x6x1mm
ALU SHIM
3x6x1mm
LEFT UPRIGHT = RIGHT UPRIGHT
L=R
4 mm thread
4 mm thread
10 mm thread
CARPET
initial position
CARPET
initial position
FRONT
ALU UPPER
CLAMP
ASPHALT
initial position
ASPHALT
initial position
10 mm thread
L=R
L=R
REAR
ALU UPPER
CLAMP
5. FRONT & REAR TRANSMISSION
"4L"
"4R"
TIGHTEN GENTLY
1:1
23 mm
2x
TIGHTEN GENTLY
Use 2x alu shim 3x6x2mm
on each side
(total thickness = 4mm)
ALU SHIM
3x6x2mm
Use inner hole
An optional 1-hole rear upright is
available for fine tuning. This optional
upright may be used on high-traction
tracks or tracks with long sweepers, since
the position of the center hole will allow
faster driving through those corners
because of better cornering speed.
1:1
25 mm
2x
