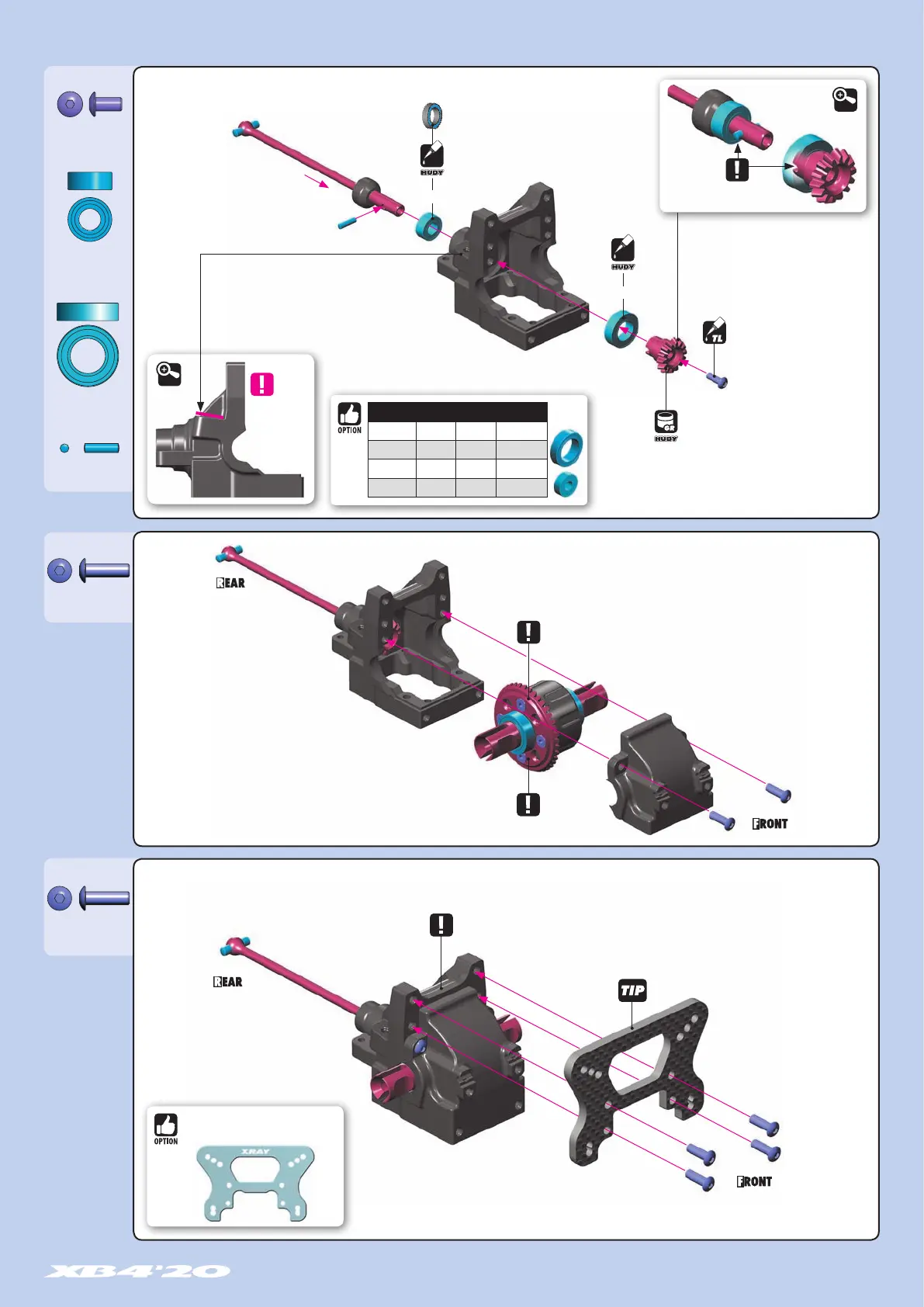

2. FRONT CENTRAL TRANSMISSION
➊
➋
➌
➍
➎
Bearing with BLUE
rubber covers
Follow the TECH TIP on page 5
to prepare graphite parts
940510
BB 5x10x4
940815
BB 8x14x4
902310
SH M3x10
902310
SH M3x10
NOTE ORIENTATION
THREAD LOCK
NOTE ORIENTATION
NOTE ORIENTATION
DETAIL
FRONT BLOCK
IMPORTANT
DETAIL
FRONT DIFF 10.000 cSt
5x10x4mm
OIL
8x14x4mm
OIL
981208
P 2x8
Bearing Oil
(HUDY #106230)
Bearing Oil
(HUDY #106230)
XRAY BALL-BEARING
#359050 5x10x4 GREASE OPTION
#940510 5x10x4 OIL INCLUDED
#940814 8x14x4 GREASE OPTION
#940815 8x14x4 OIL INCLUDED
902306
SH M3x6
GRAPHITE GREASE
(HUDY #106210)
#362085
XB4 ALU FRONT SHOCK TOWER 3.0MM
