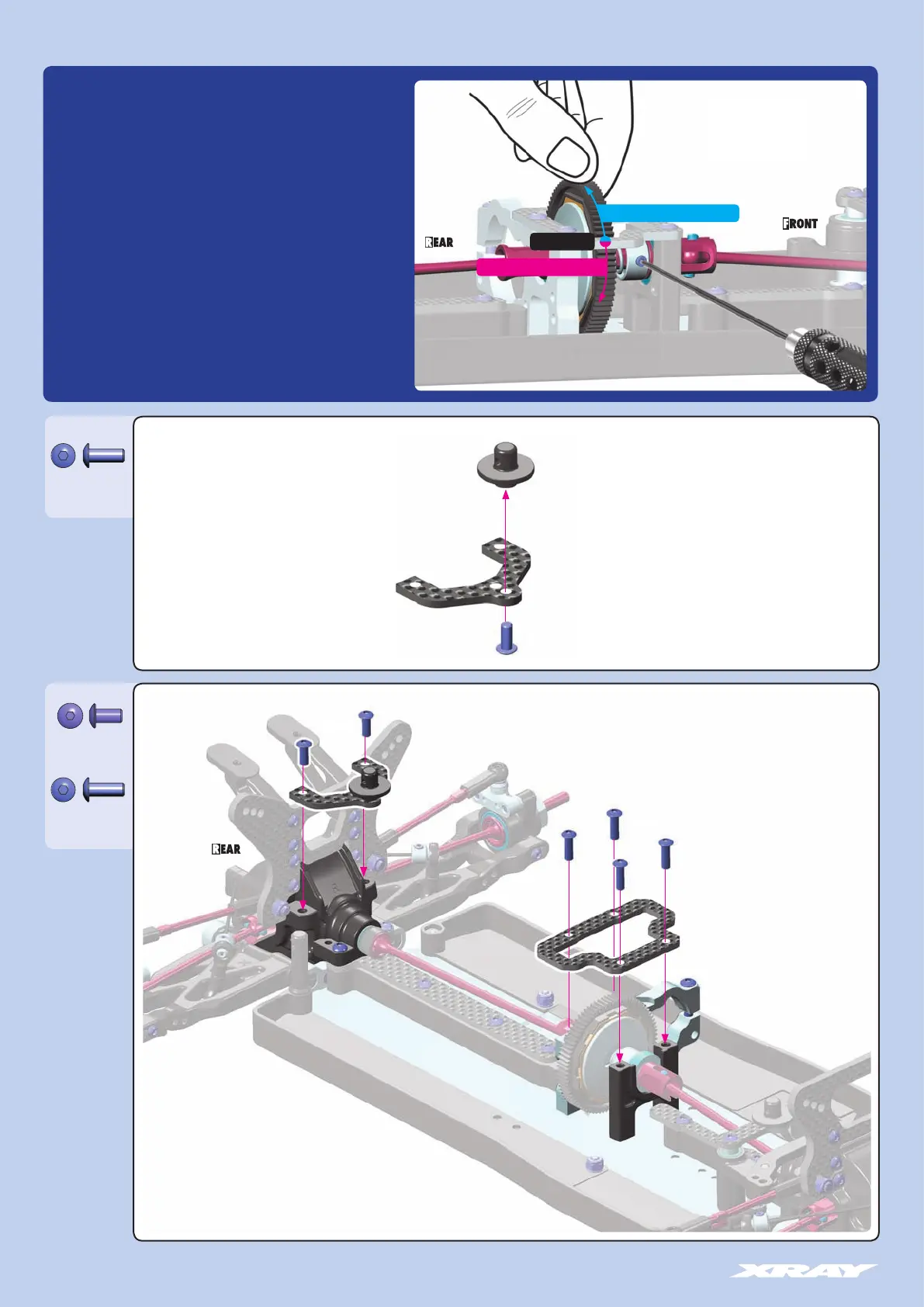

32
6. SLIPPER CLUTCH ASSEMBLY
SLIPPER CLUTCH ADJUSTMENT
The Slipper Clutch can be adjusted by loosening the set-screw and then, while
keeping the tool inside of the set-screw, rotating the spur gear by hand as
indicated in the drawing.
To LOOSEN: Rotate the spur gear in the counterclockwise (CCW) direction.
To TIGHTEN: Rotate the spur gear in the clockwise (CW) direction.
➊
➋
➌
Untighten set-screw
Adjust
Tighten set-screw
➋ ADJUST
TIGHTEN SLIPPER CLUTCH
902308
SH M3x8
902306
SH M3x6
902308
SH M3x8
Allen 1.5mm
LOOSEN SLIPPER CLUTCH
3x6mm
3x8mm
