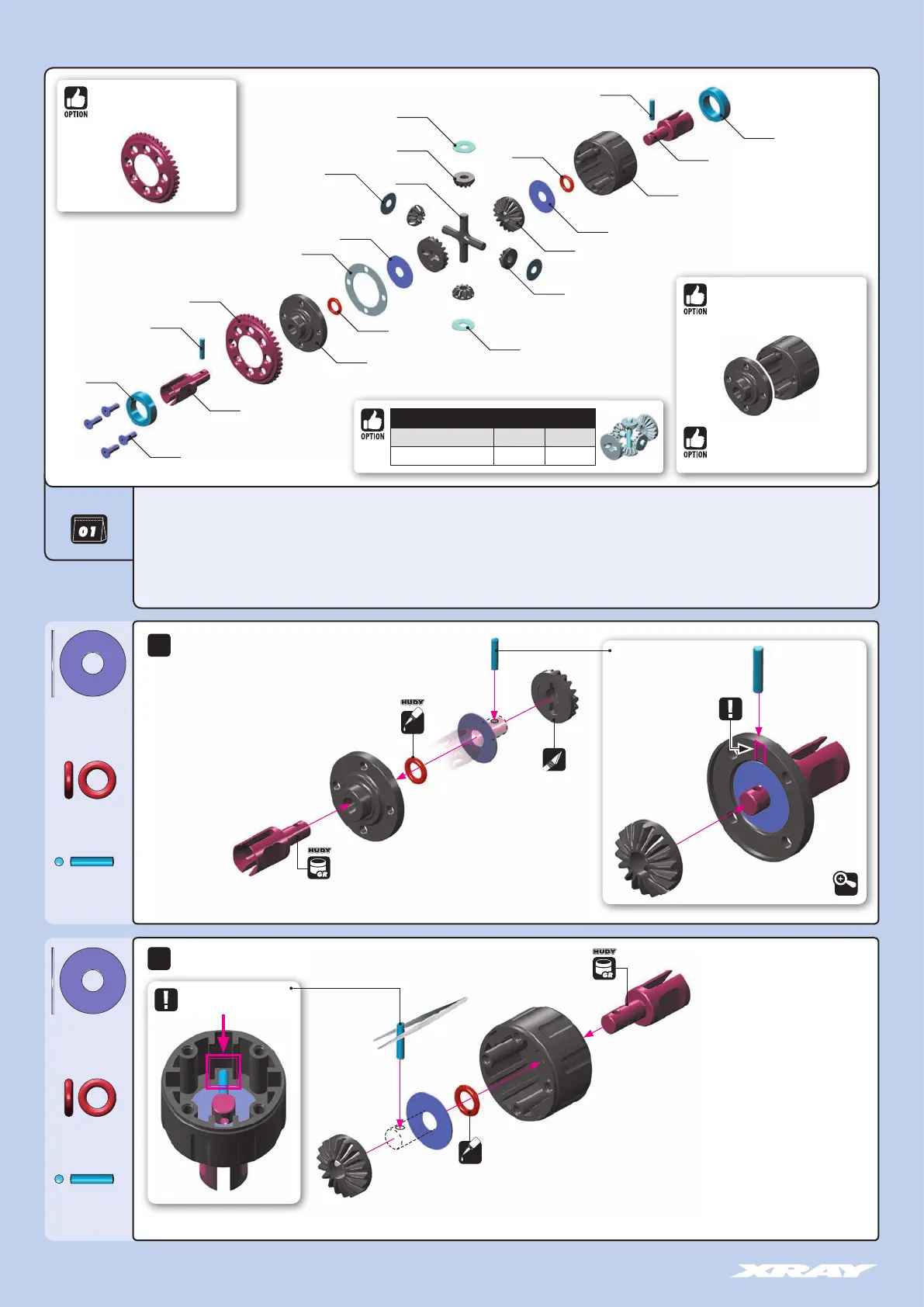

Xray XB4 User Manual

6
BEVEL & SATELITTE GEARS + PINS
#304932 + #304980 GRAPHITE INCLUDED
#335030 + #335080 STEEL OPTION
1. FRONT & REAR DIFFERENTIAL
2x
2x
STEP DETAIL
STEP DETAIL
Use tweezers to
insert pin
➊
➊
➋
➋
➌
➌
➍
➍
➍
➎
➎
➎
➍➎
➍
304932 GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
304980 COMPOSITE GEAR DIFF CROSS PIN
304990 DIFF GASKET (4)
364903 GEAR DIFFERENTIAL - LARGE VOLUME - SET
364912 COMPOSITE GEAR DIFFERENTIAL CASE - LARGE VOLUME
364920 COMPOSITE GEAR DIFFERENTIAL COVER - LARGE VOLUME
364940 STEEL DIFFERENTIAL BEVEL GEAR FOR LARGE VOLUME DIFF 40T
BAG
364962
364912
964050
964031
971050
364920
903258
364962
304932
304932
941014
981210
971050
964031
964031
964050
304990
364940
981210
941014
304932
304980
971050
O 5x1.5
971050
O 5x1.5
964050
S 5x15x0.3
964050
S 5x15x0.3
981210
P 2x10
981210
P 2x10
NOTE ORIENTATION
OIL
OIL
DETAIL
#106210 HUDY GRAPHITE GREASE
#106210 HUDY GRAPHITE GREASE
364962 GEAR DIFF OUTDRIVE ADAPTER FOR LARGE VOLUME DIFF (2)
903258 HEX SCREW SFH M2.5x8 (10)
941014 BALL-BEARING 10x15x4 RUBBER SEALED - GREASE (2)
964031 WASHER S 3.5x10x0.2 (10)
964050 WASHER S 5x15x0.3 (10)
971050 SILICONE O-RING 5x1.5 (10)
981210 PIN 2x10 (10)
NOTE ORIENTATION
#364912-G
GEAR DIFFERENTIAL CASE - LARGE
VOLUME - GRAPHITE
#364920-G
GEAR DIFFERENTIAL COVER - LARGE
VOLUME - GRAPHITE
#364941
STEEL DIFFERENTIAL BEVEL GEAR
FOR LARGE VOLUME DIFF 41T
