30
BAG

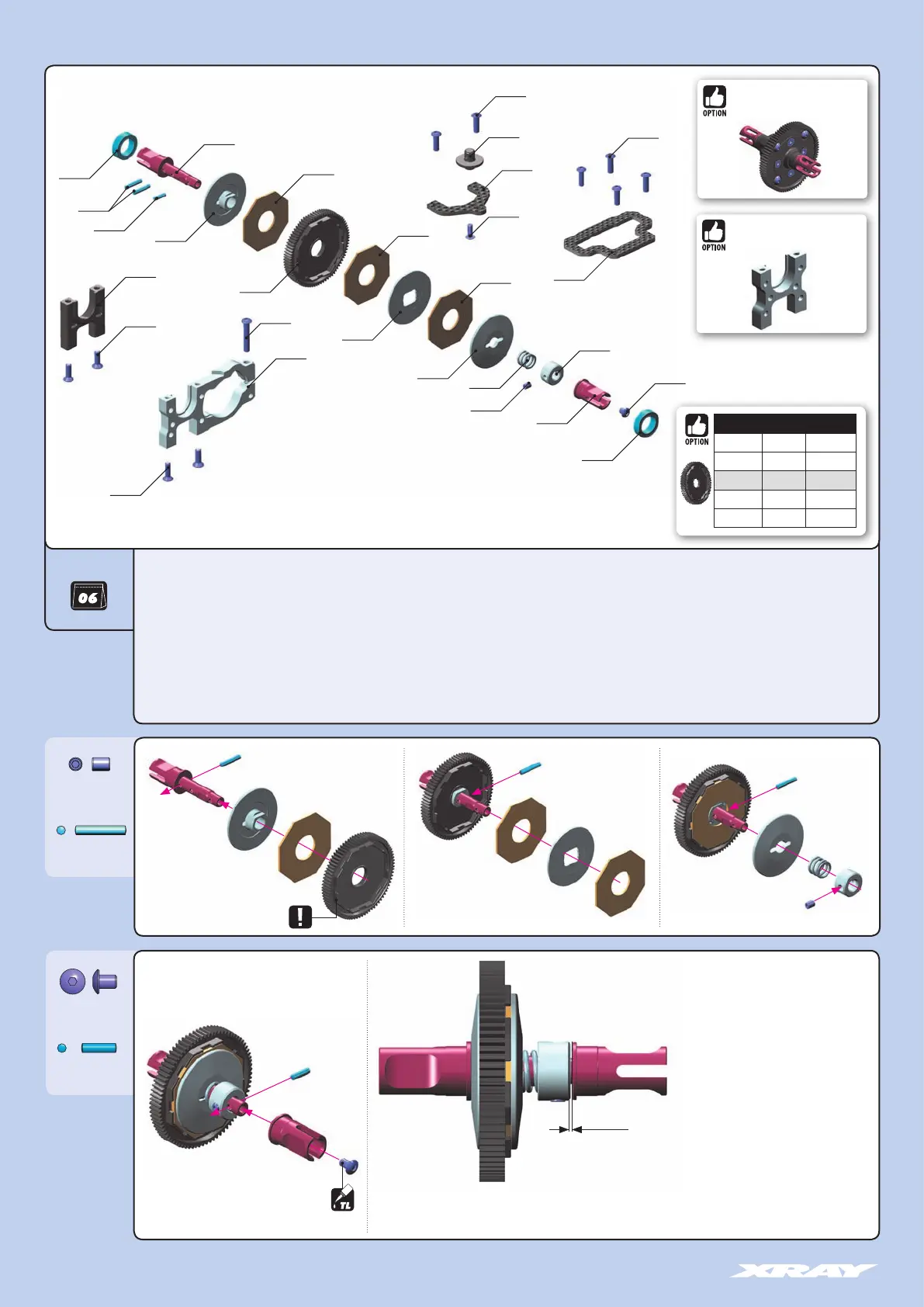

6. SLIPPER CLUTCH ASSEMBLY
➊
➋
➌
➍
➊
➊
➋
➋
➌
➌
➍
➍
➎
NOTE ORIENTATION
361176 XB4’20 GRAPHITE CENTER UPPER DECK 2MM
361188 XB4’20 GRAPHITE REAR UPPER BRACE 2MM
361320 BODY MOUNT, BATTERY MOUNT - V2 & WING SHIM (2)
364013 ALU MOTOR BULKHEAD - LOWER
364023 COMPOSITE CENTRAL BULKHEAD - LOWER
364113 3-PAD SLIPPER CLUTCH SHAFT - NARROW - HUDY SPRING STEEL™
364120 ALU SLIPPER CLUTCH PLATE - 7075 T6 BLACK HARD COATED
364121 ALU 3-PAD SLIPPER CLUTCH PLATE WITH ADAPTER - 7075 T6 HARD COATED
364131 SLIPPER CLUTCH PAD “SLS” (2)
364140 ALU 3-PAD SLIPPER CLUTCH PLATE DISC - 7075 T6 HARD COATED
364172 SLIPPER CLUTCH OUTDRIVE ADAPTER - NARROW - HUDY SPRING STEEL™
364182 SLIPPER CLUTCH SPRING C=46 - BLACK
364190 ALU SLIPPER CLUTCH NUT - V2
365881 COMPOSITE SLIPPER CLUTCH SPUR GEAR 81T / 48 - GRAPHITE
901304 HEX SCREW SB M3x4 (10)
902304 HEX SCREW SH M3x4 (10)
902306 HEX SCREW SH M3x6 (10)
902308 HEX SCREW SH M3x8 (10)
902318 HEX SCREW SH M3x18 (10)
903308 HEX SCREW SFH M3x8 (10)
941015 BALL-BEARING 10x15x4 RUBBER SEALED - OIL (2)
980212 PIN 2x11.6 (10)
981208 PIN 2x8 (10)
941015
941015
364023
902318
364013
903308
903308
364113
364121
364140
361176
364120
364182
901304
364172
902308
980212
981208
364131
364131
902306
364131
365881
364190
902304
361188
902308
361320
➊
➋
➌
VERY IMPORTANT!
It is very important that you NEVER FULLY TIGHTEN the Slipper Clutch. Overtightening
the Slipper Clutch may result in breakage of the diff crown gear and pinion gear.
SLIPPER ADJUSTMENT:
The Slipper Clutch is easily adjusted by the set-screw in the bushing. The more the spring is
tightened (bushing moved more inwards), the more the Slipper Clutch is tightened.
0~0.5mm
INITIAL INSTALLATION POSITION SHOWN
Detailed information on slipper adjustment can be found on page 32.
SLIPPER CLUTCH SPUR GEARS
#365875 75T / 48 OPTION
#365878 78T / 48 OPTION
#365881 81T / 48 INCLUDED
#365884 84T / 48 OPTION
#365887 87T / 48 OPTION
#364904
GEAR CENTER DIFFERENTIAL - SET
901304
SB M3x4
902304
SH M3x4
980212
P 2x11.6
981208
P 2x8
#364024
ALU
CENTRAL BULKHEAD
