Xray XB4 User Manual

36
107872 Velcro Tape

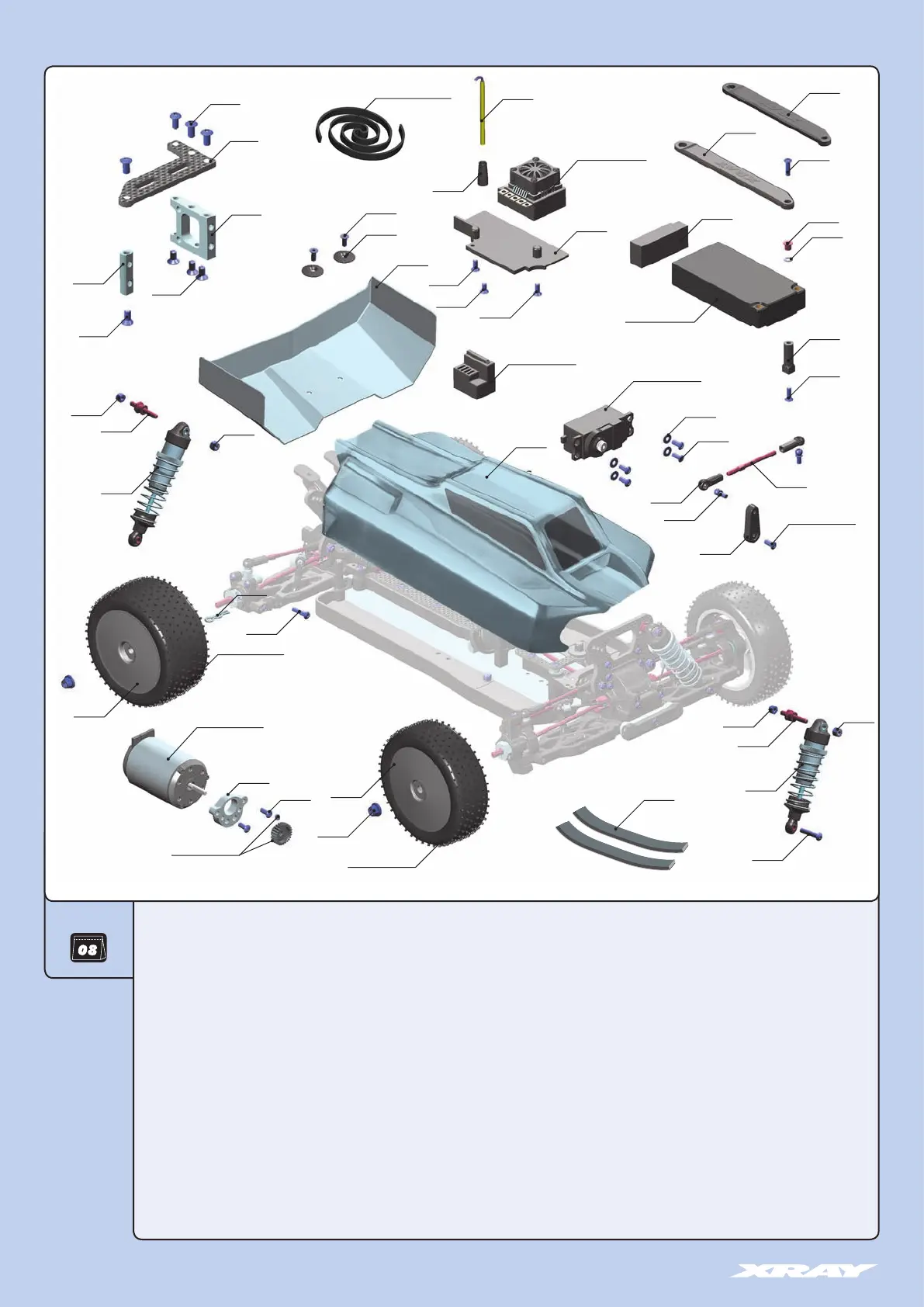

8. FINAL ASSEMBLY
107871 HUDY SELF-ADHESIVE FOAM STRIP (2)
107872 VELCRO TAPE WITH DOUBLE SIDED TAPE 8x500MM
302665 COMPOSITE BALL JOINT 4.9MM - CLOSED WITH HOLE (4)
306208 ALU SERVO MOUNT - BOTH SIDES THREADED
306301 ANTENNA MOUNT - THIN
309402 BODY CLIP FOR 6MM BODY POST (4)
352610 ADJ. TURNBUCKLE M3 L/R 45 MM - SPRING STEEL™ (2)
356200 BRAKE/THROTTLE ARMS & STEERING SERVO ARMS - SET
361320 BODY MOUNT, BATTERY MOUNT - V2 & WING SHIM (2)
362290 STEEL STEERING BUSHING - SHORT (2)
362650 BALL END 4.9MM WITH THREAD 6MM (2)
364090 ALU ECCENTRIC MOTOR BULKHEAD INSERT - V3
365718~38 ALU PINION GEAR HARD COATED 18~38T/48 (OPTION)
366050 COMPOSITE RADIO PLATE - V2
366114 COMPOSITE BATTERY STRAP - LONG
366115 COMPOSITE BATTERY STRAP - LONG XL
366142 COMPOSITE BATTERY HOLDER STAND (2)
366160 FOAM SPACER FOR BATTERY
366220 INDEPENDENT SERVO MOUNT - V2 - SET
368045 STEEL SCREW SHOCK PIVOT BALL WITH HEX (2)
902306 HEX SCREW SH M3x6 (10)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
902312 HEX SCREW SH M3x12 (10)
902316 HEX SCREW SH M3x16 (10)
903306 HEX SCREW SFH M3x6 (10)
903308 HEX SCREW SFH M3x8 (10)
903310 HEX SCREW SFH M3x10 (10)
960030 NUT M3 (10)
961032 WASHER S 3.2 (10)
962030 WASHER S 3x6x0.3 (10)
960240 NUT M4 WITH SERRATED FLANGE (10)
368100 FRONT SHOCK ABSORBERS COMPLETE SET (2)
368200 REAR SHOCK ABSORBERS COMPLETE SET (2)
306310 ANTENNA (2)
363510 LEXAN REAR WING (2)
369705 XRAY XB4 BODY
369912 FRONT WHEEL AERODISK WITH 12MM HEX - WHITE (2)
329913 REAR WHEEL AERODISK WITH 12MM HEX - WHITE (2)
362650
902312
960030
306310
960030
368045
902316
960240
Rear Tires
(NOT INCLUDED)
Front Tires
(NOT INCLUDED)
368100
368200
368045
902312
362290
962030
366142
366115
366160
366114
366050
369705
902310
364090
903310
903310
903310
306301
Receiver
(NOT INCLUDED)
Steering Servo
(NOT INCLUDED)
365718~38
(NOT INCLUDED)
LiPo Battery Pack
(NOT INCLUDED)
Motor
(NOT INCLUDED)
Servo Screw
(NOT INCLUDED)
Speed Controller
(NOT INCLUDED)
960030
902308
961032
107871
302665
960030
356200
352610
903308
363510
369912
329913
BAG
902306
366220
903306
903306
306208
366220
309402
903308
361320

Xray XB4 Specifications

General

Drive	4WD
Suspension	Independent
Type	Buggy
Battery Type	LiPo
Differential	Gear
Motor Type	Brushless
Class	Off-Road
Radio System	2.4 GHz
Scale	1:10
