Xray XB4 User Manual

10

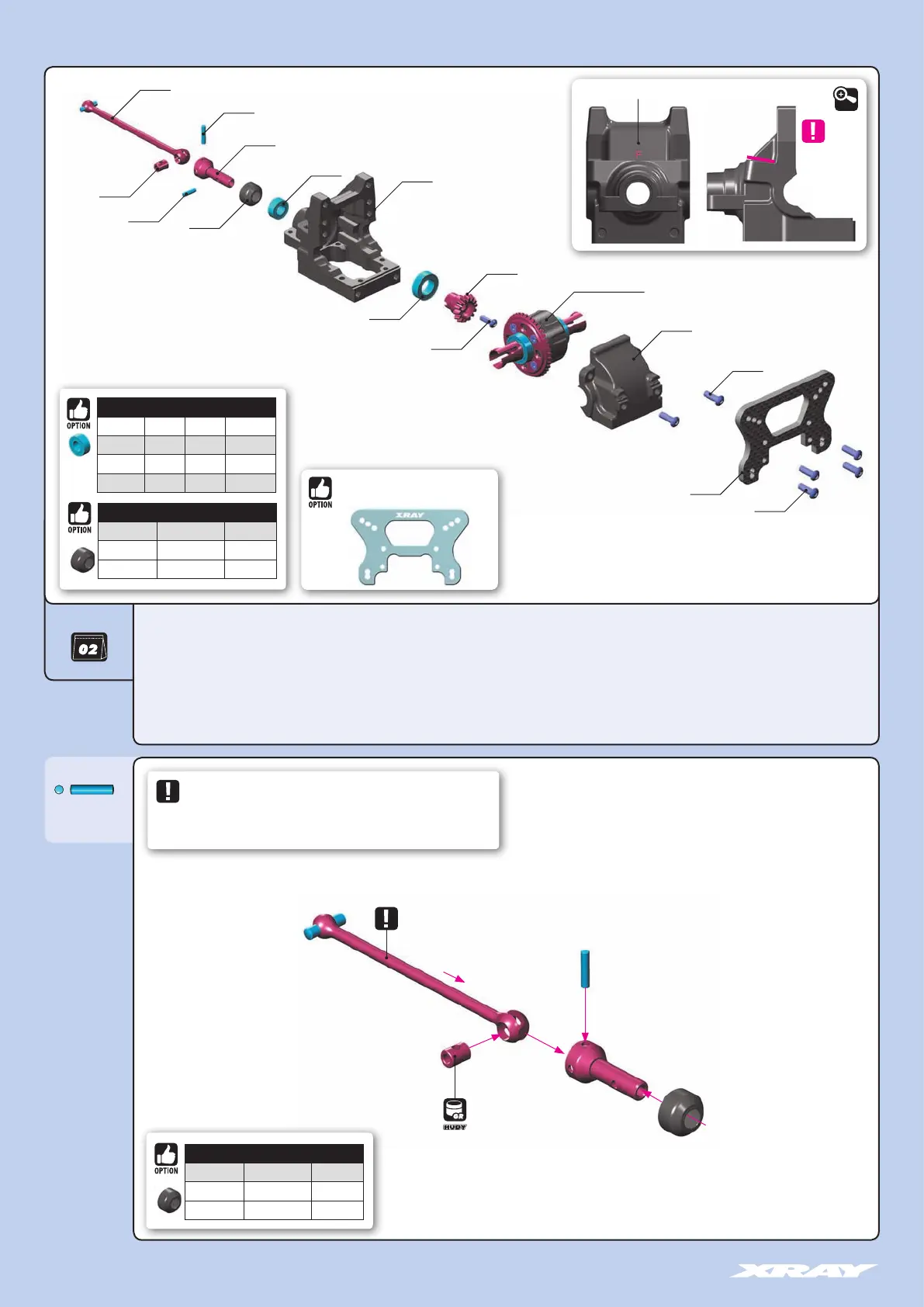

2. FRONT CENTRAL TRANSMISSION
MARKED “F“
DRIVE SHAFT COVER CAPS
Lubricate the drive shaft connecting joint properly so the drive shaft turns
freely. In the event that not enough grease is used, the connecting pin may lock
and may even, in extreme situations, push through the drive shaft cover cap.
#106210 HUDY GRAPHITE GREASE
#106213 HUDY JOINT GREASE - OPTION
DRIVE SHAFT COLLAR
#365470 COMPOSITE INCLUDED
#365471-K ALU - BLACK OPTION
#365471-O ALU - ORANGE OPTION
DRIVE SHAFT COLLAR
#365470 COMPOSITE INCLUDED
#365471-K ALU - BLACK OPTION
#365471-O ALU - ORANGE OPTION
XRAY BALL-BEARING
#359050 5x10x4 GREASE OPTION
#940510 5x10x4 OIL INCLUDED
#940814 8x14x4 GREASE OPTION
#940815 8x14x4 OIL INCLUDED
➊
➋
➌
➍
325324 DRIVE SHAFT 75MM WITH 2.5MM PIN - HUDY SPRING STEEL™
362004 DIFF BULKHEAD BLOCK SET FRONT - NARROW
362083 GRAPHITE SHOCK TOWER FRONT 3.5MM
365126 STEEL BEVEL DRIVE GEAR - CNC-MACHINED - 16T
365230 DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
365442 CENTRAL SHAFT UNIVERSAL JOINT
365470 COMPOSITE DRIVE SHAFT SAFETY COLLAR - V2 (3)
902306 HEX SCREW SH M3x6 (10)
902310 HEX SCREW SH M3x10 (10)
940510 BALL-BEARING 5x10x4 RUBBER SEALED - OIL (2)
940815 BALL-BEARING 8x14x4 RUBBER SEALED - OIL (2)
980210 PIN 2x10 (10)
981208 PIN 2x8 (10)
364903 GEAR DIFFERENTIAL - LARGE VOLUME - SET
364940 STEEL DIFFERENTIAL BEVEL GEAR FOR LARGE VOLUME DIFF 40T
BAG
365230
365470
981208
362004
940815
902306
362083
902310
902310
325324
980210
365442
940510
365126
FRONT BLOCK
362004
IMPORTANT
980210
P 2x10
CENTRAL DRIVE SHAFT (75mm)
DETAIL
364903+364940
#362085
XB4 ALU FRONT SHOCK TOWER 3.0MM

Xray XB4 Specifications

General

Drive	4WD
Suspension	Independent
Type	Buggy
Battery Type	LiPo
Differential	Gear
Motor Type	Brushless
Class	Off-Road
Radio System	2.4 GHz
Scale	1:10
