31
903308
SFH M3x8
902318
SH M3x18

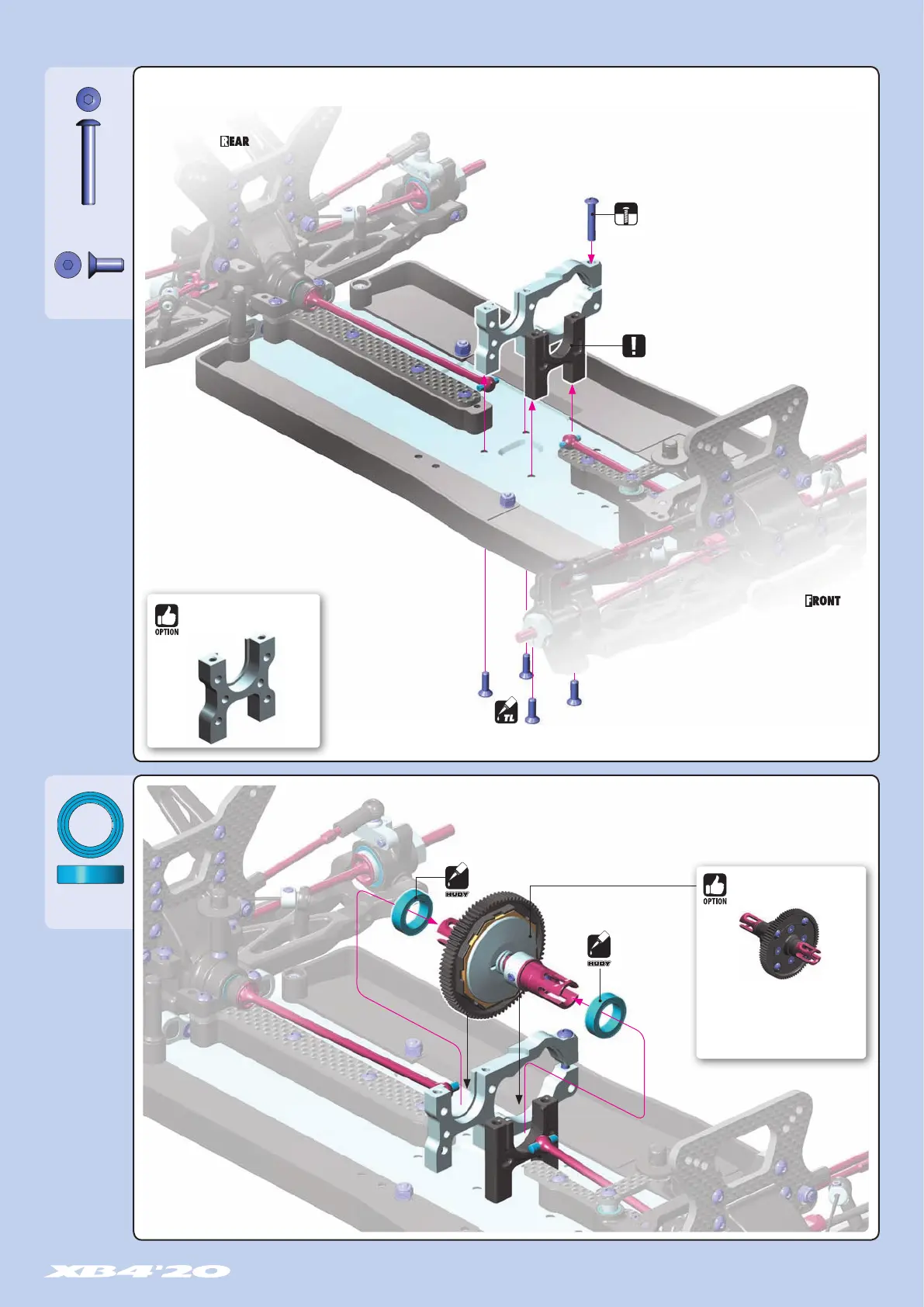

6.
SLIPPER
CLUTCH
ASSEMBL
Y
941015
BB 10x15x4
OI
L
BEARING OIL
(HUDY #106230)
OI
L
NOTE ORIENT
ATION
TIGHTEN GENTL
Y
#364904
GEAR CENTER DIFFERENTIAL -
SET
Increases on-power steering for
nearly all
types of tracks and
is ideal for both carpet
and clay tracks.
We
recommend #106692 HUDY
Pre
-
mium Silicone Oil 1
000 000 cSt - 50ml.
#364024
ALU
CENTRAL BULKHEAD
30
32
Table of Contents
Before You Start
2
Customer Support
2
Safety Precautions
2
Important Notes – General
2
Important Notes – Electrical
3
R/C & Building Tips
3
Symbols Used
4
Tools Required
4
Items Included
4
Equipment Required
4
Not Included
5
Color Indications
5
Xb4 Tech Tips
5
Drive Shaft Pin Servicing
5
Front & Rear Differential
6
Front Diferential
7
Rear Diferential
7
Rear Central Transmission
8
Front Central Transmission
10
Rear Suspension
12
Front Suspension
15
Rear Transmission
18
Front Transmission
21
Front & Rear Assembly
24
Steering
27
Slipper Clutch Assembly
30
Slipper Clutch Adjustment
32
Shock Absorbers
33
Up-Stop Travel Settings
35
Default Shock Rebound Setting
35
Final Assembly
36
Shock Maintenance
42
Bearing Maintenance
42
Suspension & Drivetrain Maintenance
42
Recommended Products
42
