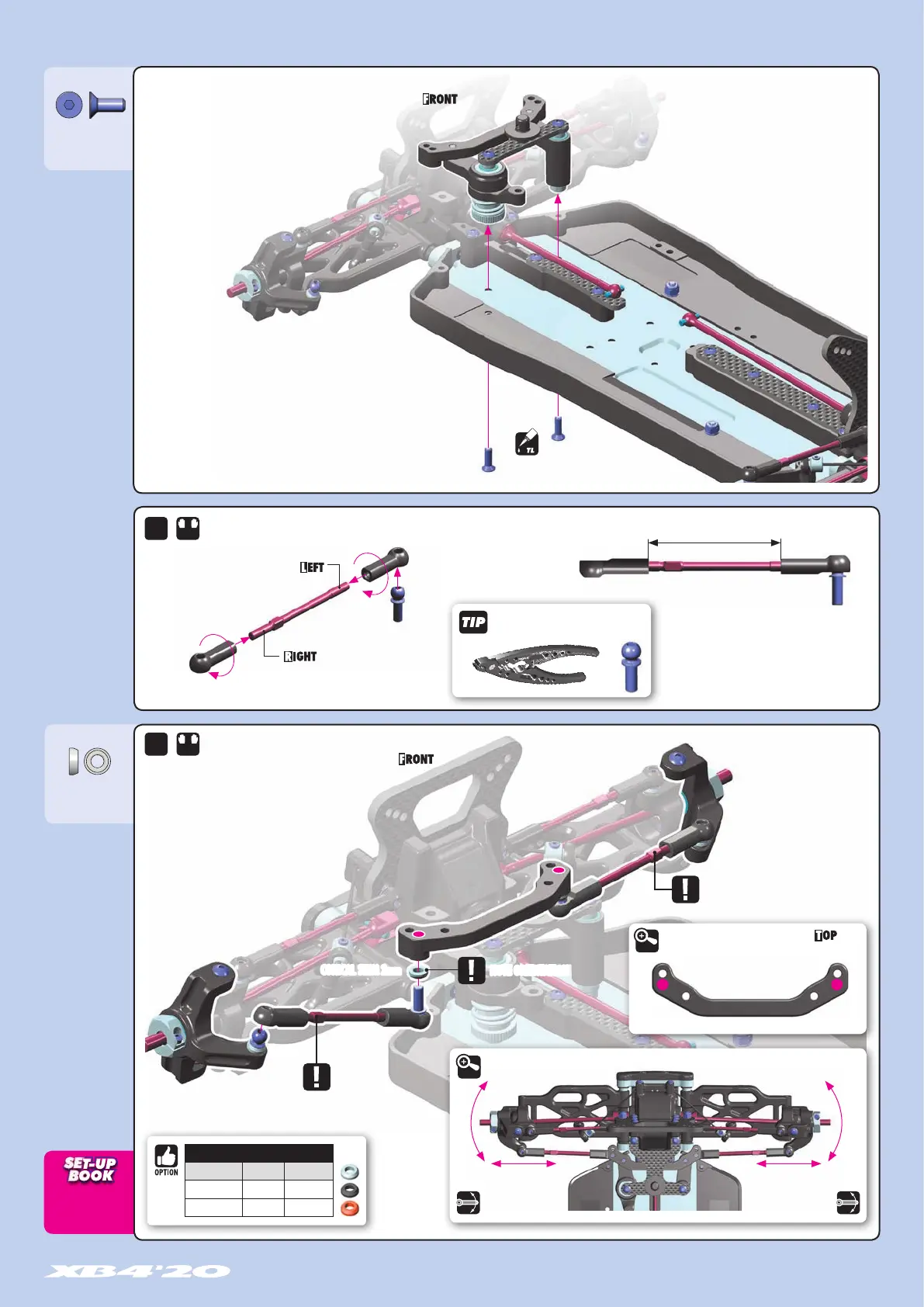

29
ACKERMANN
BUMP STEER
TOE-IN
5. STEERING
31mm
NOTE ORIENTATION
Adjustment block towards outside
NOTE ORIENTATION
2x
2x
L=R
L=R
NOTE ORIENTATION
Adjustment block towards outside
362280
CON. SHIM 3x6x2
Check for free
movement
Check for free
movement
DETAIL
INITIAL POSITION
DETAIL
view
CONICAL SHIM 2mm
ALU CONICAL SHIM
#362280 SILVER INCLUDED
#362280-K BLACK OPTION
#362280-O ORANGE OPTION
903308
SFH M3x8
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
10mm Thread
THREAD
THREAD
