Xray XB4 User Manual

28

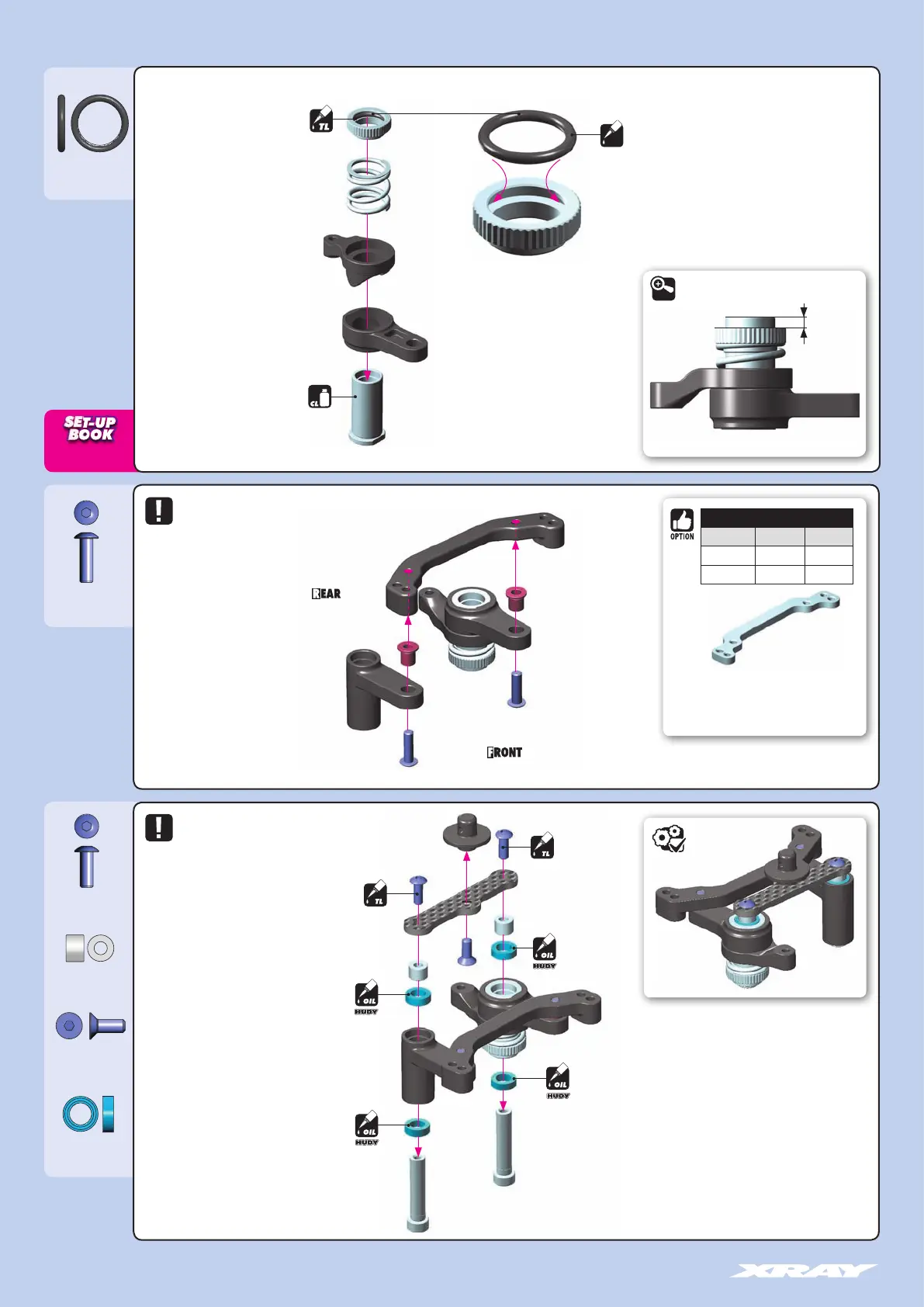

SERVO SAVER
940508
BB 5x8x2.5
970100
O 10x1.5
Bearing Oil
(HUDY #106230)
STEERING PLATE
#362571 HARD INCLUDED
#362571-G GRAPHITE OPTION
#362574 ALU OPTION
5. STEERING
NOTE ORIENTATION
NOTE ORIENTATION
303127-K
SHIM 3x6x4
902310
SH M3x10
902310
SH M3x10
903308
SFH M3x8
Increases steering precision and predictability
and is recommended for use in high-traction
conditions. Includes extra Ackermann positions
for very precise steering adjustment.
3~4mm
INITIAL PRELOAD SETTING
CLEANER
THREAD LOCK
OIL
DETAIL
4mm
4mm
Bearing Oil
(HUDY #106230)

Xray XB4 Specifications

General

Drive	4WD
Suspension	Independent
Type	Buggy
Battery Type	LiPo
Differential	Gear
Motor Type	Brushless
Class	Off-Road
Radio System	2.4 GHz
Scale	1:10
