Xray XB4 User Manual

34
SHOCK DAMPING
SHOCK PISTONS
4x
4x
1mm 2mm 3mm

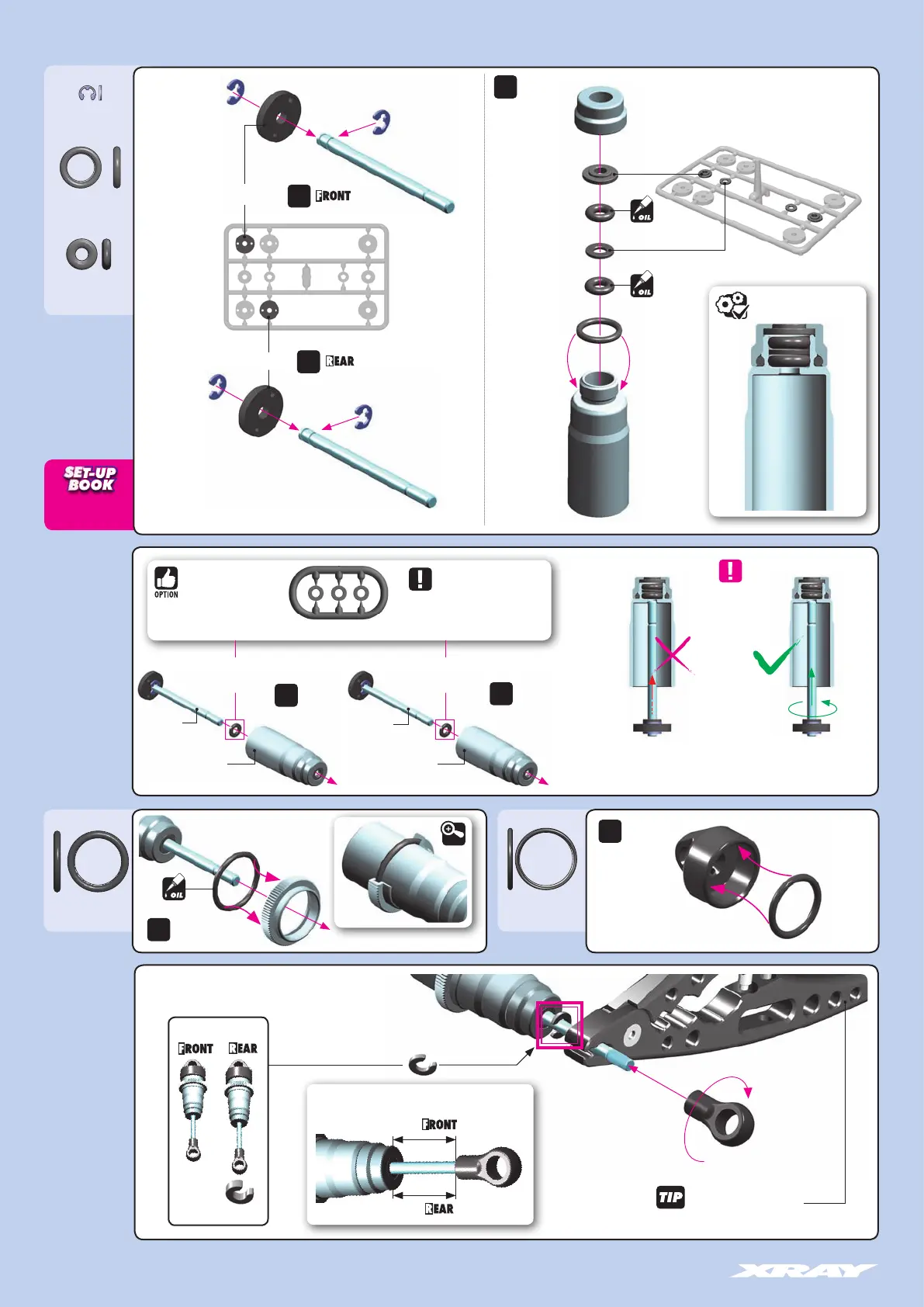

7. SHOCK ABSORBERS
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
There are two different thickness shims, use
them as shown. Use the same procedure when
building both front and rear shocks.
O-ring
THIN Shim
O-ring
THICK Shim
EXTREMELY
IMPORTANT
Do not push the shock rod straight
through the lower shock body
assembly; O-ring damage may result.
Always use same shim thickness
on right and left side to achieve
same downstop.
#306219
DOWNSTOP SHIMS
THICKER shim used, GREATER
downstop is achieved.
IMPORTANT
FRONT SHOCKS
SHORT
SHOCK ROD
SHORT
SHOCK BODY
LONG
SHOCK ROD
LONG
SHOCK BODY
REAR SHOCKS
Twist the shock rod through
the lower shock body
assembly.
4x
INCORRECT
CORRECT
972031
O 3x2.1
965023
C 2.3
970140
O 14x1.5
970120
O 12x1
970080
O 8x1
2x
2x
DETAIL
➊
➊
➋
➋
➌
➌
2 holes (1.6mm)
2 holes (1.7mm)
INITIAL PISTON
SETTING
2x
2x
FRONT - SHORT SHOCK ROD
REAR - LONG SHOCK ROD
INITIAL SETTING
(0mm)
INITIAL SETTING
(0mm)
UP-STOP SHIM
INITIAL SETTING
0mm
UP-STOP "C" SHIMS
2mm
29mm
24mm
INITIAL SETTING

Xray XB4 Specifications

General

Drive	4WD
Suspension	Independent
Type	Buggy
Battery Type	LiPo
Differential	Gear
Motor Type	Brushless
Class	Off-Road
Radio System	2.4 GHz
Scale	1:10
