Page 14 DP224/6 Operators Manual

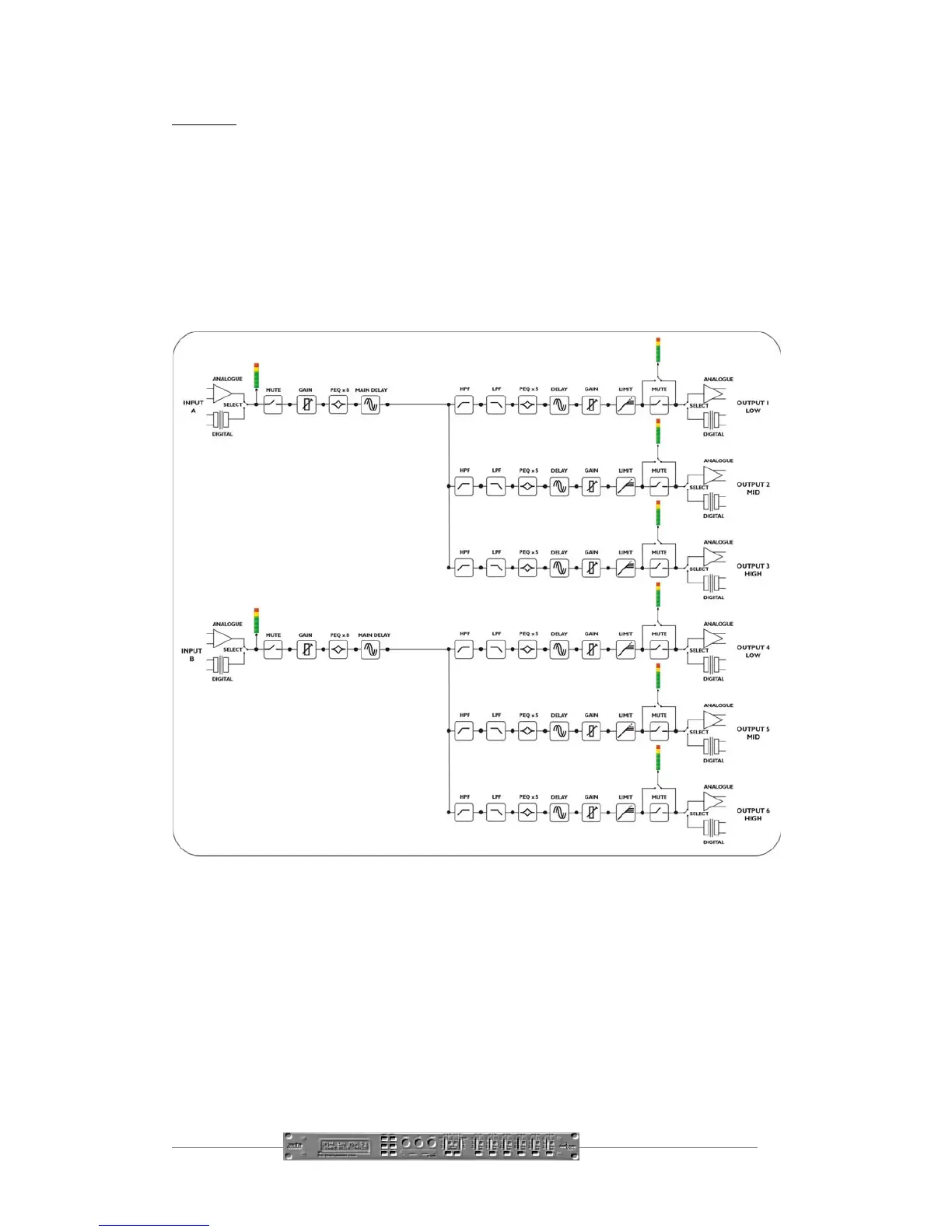

2 x 3 way
This format feeds input A to outputs 1, 2, and 3 designated low, mid, and high
respectively. Input B feeds outputs 4, 5, and 6, as low, mid, and high respectively.
Note that this configuration, as with the 2 x 2 way, can have the outputs ganged for
stereo operation. This gangs outputs 1 & 4, 2 & 5, and 3 & 6, so that they track
identically. It can be selected or modified by entering the ‘Design a Xover’ function
again. Any changes made to the crossover points or EQ will not be affected by
swapping from pre to post or vice versa.
