DP224/6 Operators Manual Page 17

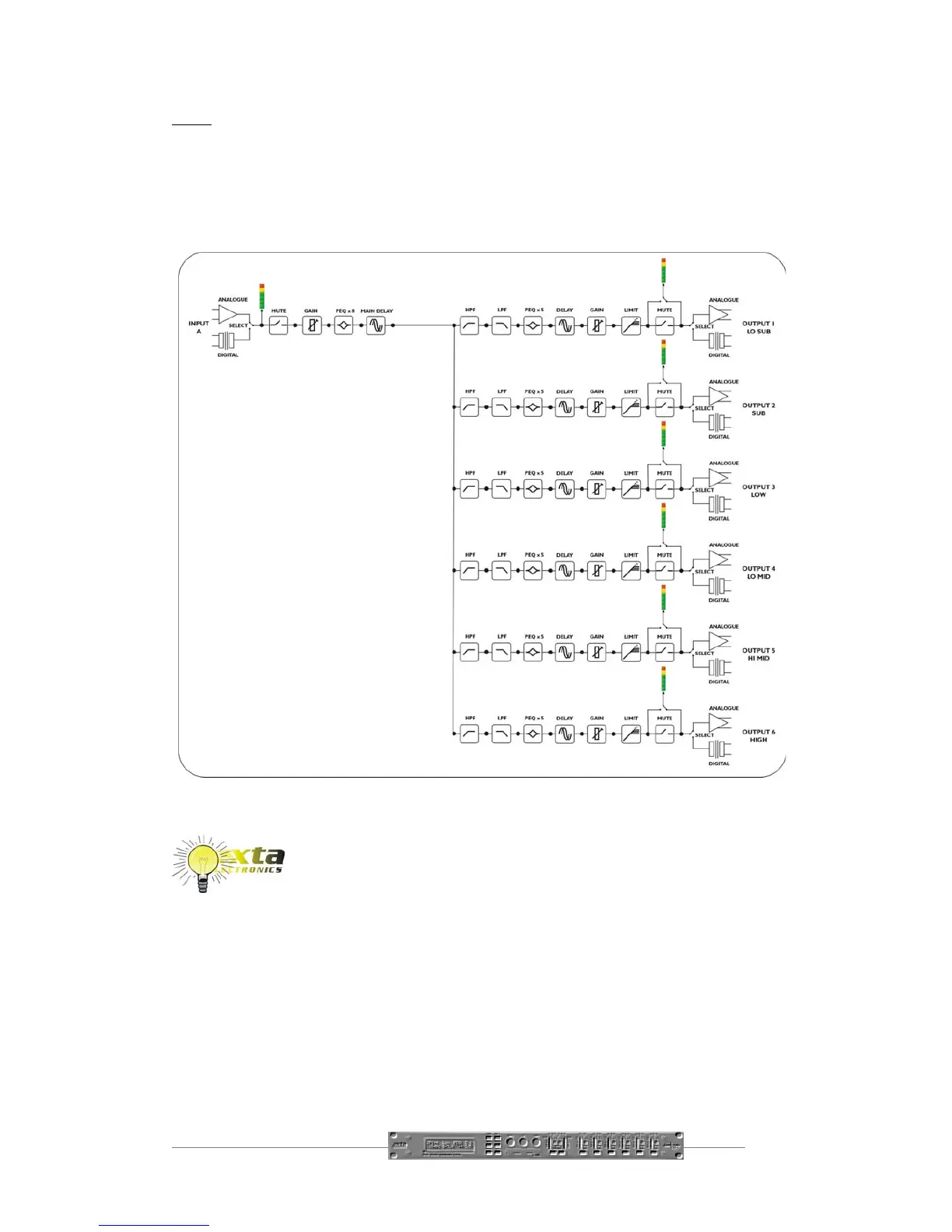

6 way
This format feeds input A to all outputs designated lo-sub, through high, 1 to 6
respectively. This configuration also allows all the input EQ to be moved to input A,
giving 16 bands of fully parametric EQ. If there does not appear to be any EQ on
input B, this will be why.
Note for DP224 Owners: Having four outputs instead of six, the
DP224 does not support the same configurations as the DP226.
The configurations available for the DP224 are given in Appendix 6,
starting on page 58. These configurations have been specially designed to facilitate
the use of a DP224 as either half of a stereo 4-way system, or for use on monitors.
