DP224/6
Operators
Manual
Page
19
Audio
Function
Screens

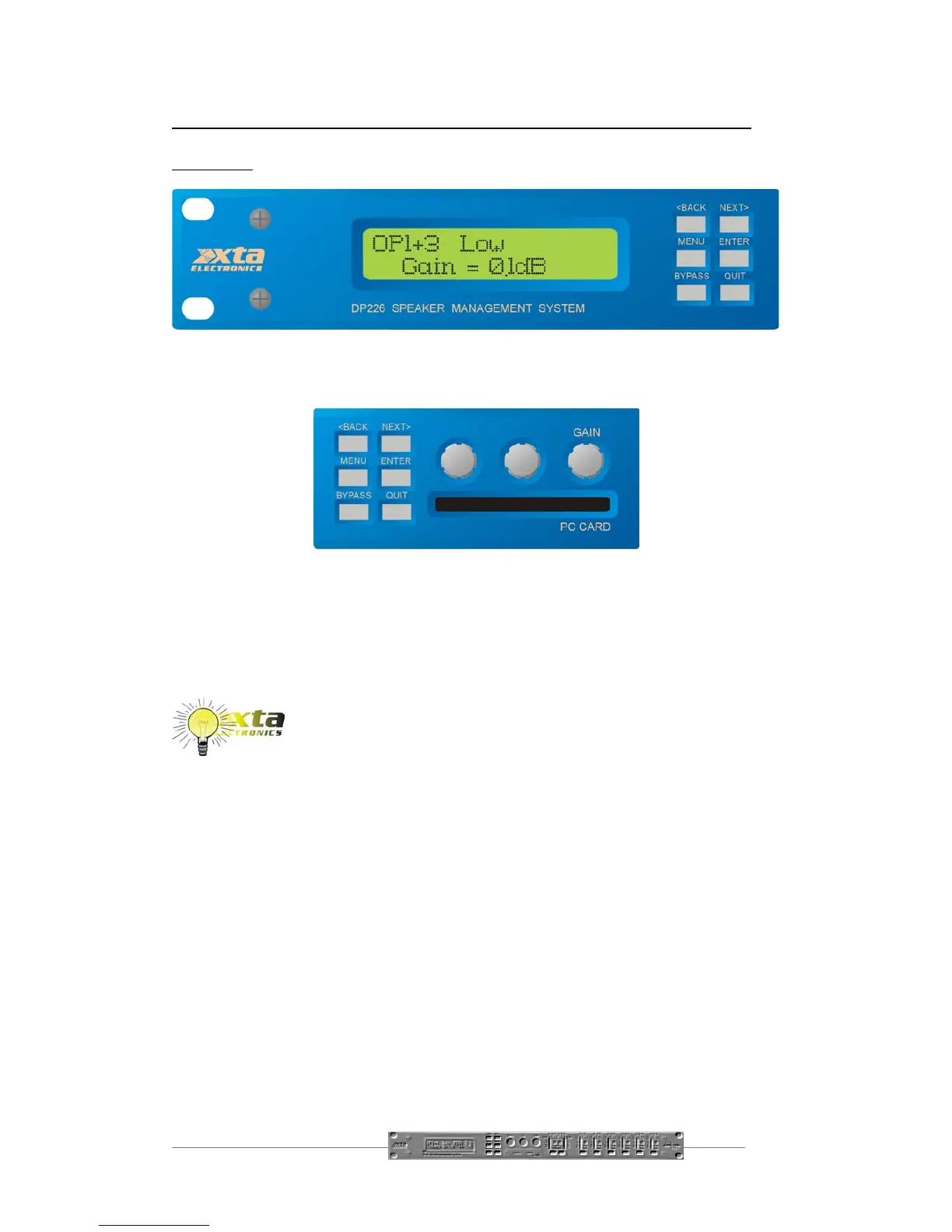

Gain Screen
To adjust the gain:
Use the ‘GAIN’
control.
Each input and output has an individual gain
screen. The inputs have a range of +6dB
to –40dB, adjustable in 0
.
1dB steps and the outputs ha
ve a range of +15dB to –
40dB, again
adjustable in 0
.
1dB steps.
For further details on this topic, see the section entitled
“Operating Level” on page 39.
