DP226 Operators Manual Page 59

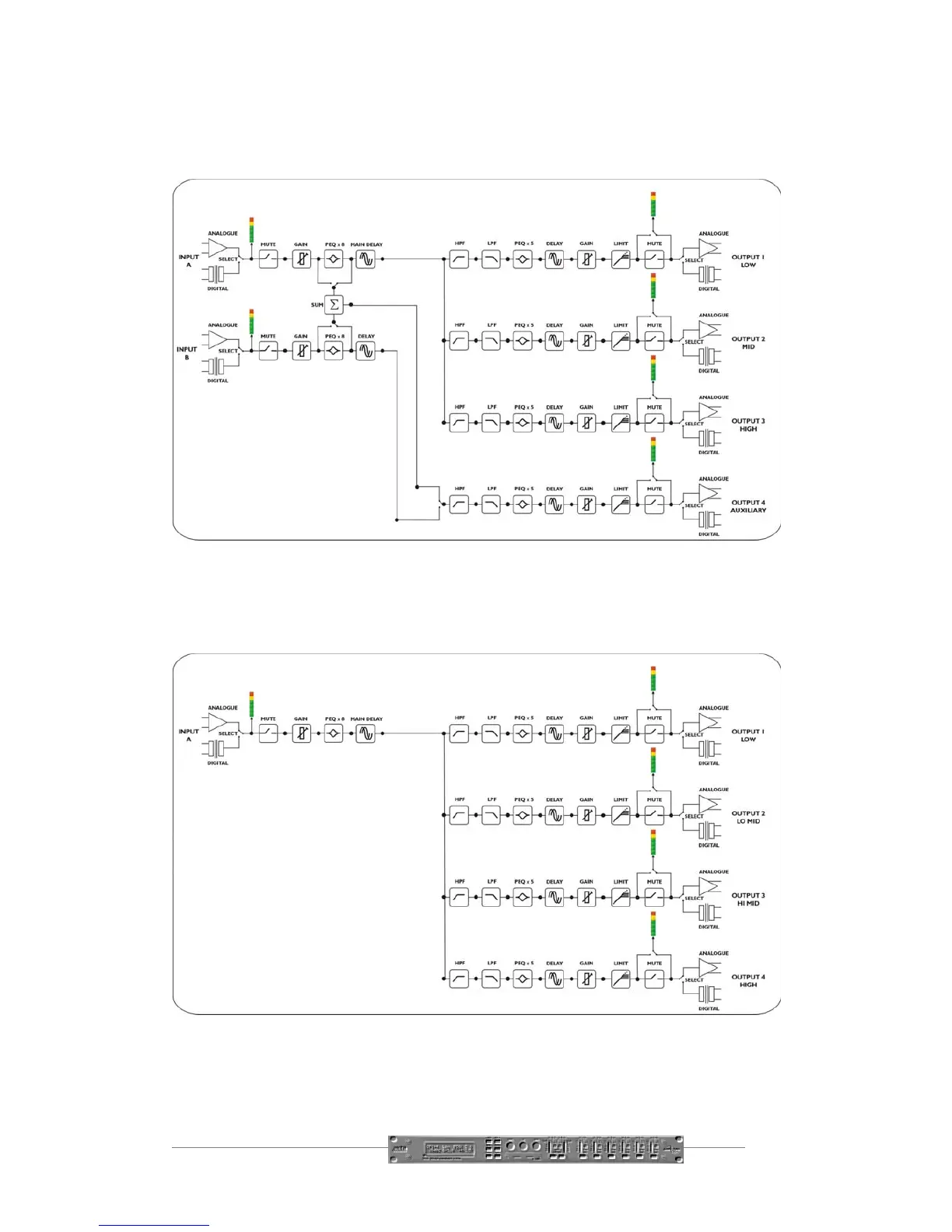

3 way crossover, with one auxiliary which may be fed from input B or A & B summed.

4 way crossover.
