DP6i Operators Manual Page 17
RS485 Connection
To use RS485 communication directly from a computer, a master DP6i must be
configured to receive RS485. You must have a suitable RS485 port on your computer,

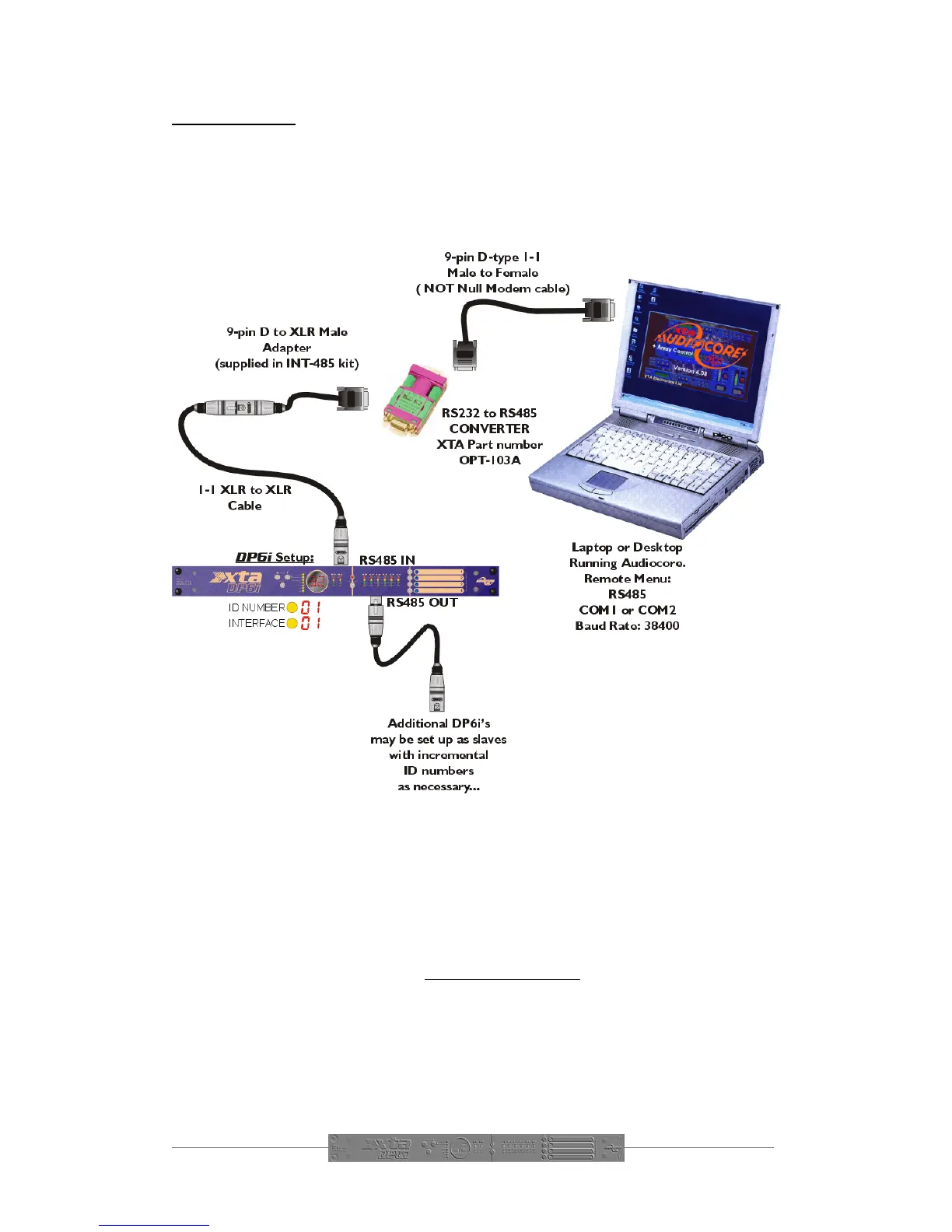

or a converter connected to the serial port in use. This configuration is shown below,
along with the required unit setup.
Both the converter and the required adapter cables are available from XTA.
The converter is part number OPT-103A. The adapter is available in a kit which
includes an RJ-45 adapter; the XLR to 9-pin adapter, and the converter itself. This
complete kit is part number INT-485.
If you need to make up one of the XLR to 9-pin adapters, the pin-out is:
XLR D-type
1 1
2 3
3 8
