DP6i Operators Manual Page 21
DP6i Configurations
Introduction
To simplify the set-up of the DP6i, 5 crossover modes are selectable. These all have
parametric equalisers, high and low pass filters, gain controls, delay and limiters. The
following set of diagrams detail how each of the five modes is internally configured.
Note that the 2 x 3 way and 3 x 2 way modes also offer the option of ganged
parameter adjustment for stereo systems.

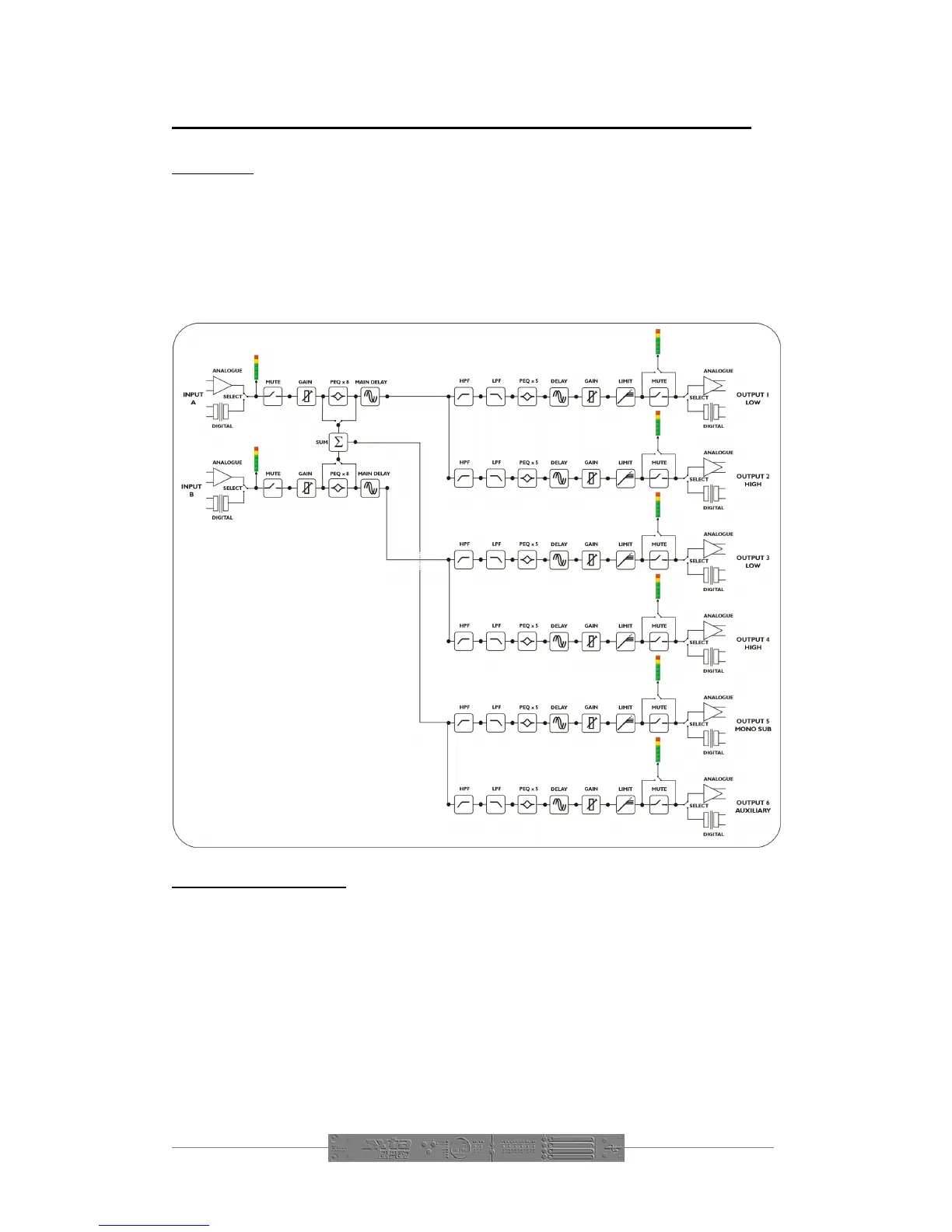

2 x 2 way with Mono Sum
This format feeds input A to outputs 1 and 2, designated low and high respectively.
Input B feeds outputs 3 and 4, low and high respectively. Outputs 5 and 6 are both
fed from the sum of inputs A and B. Output 6 is a full bandwidth output by default,
with output 5 being bandwidth limited as a sub output. The choice of whether this
summed signal is pre or post input EQ is made during the selection of this crossover
configuration. Any changes made to the crossover points or EQ will not be affected
by swapping from pre to post or vice versa.
