Page 24 DP6i Operators Manual

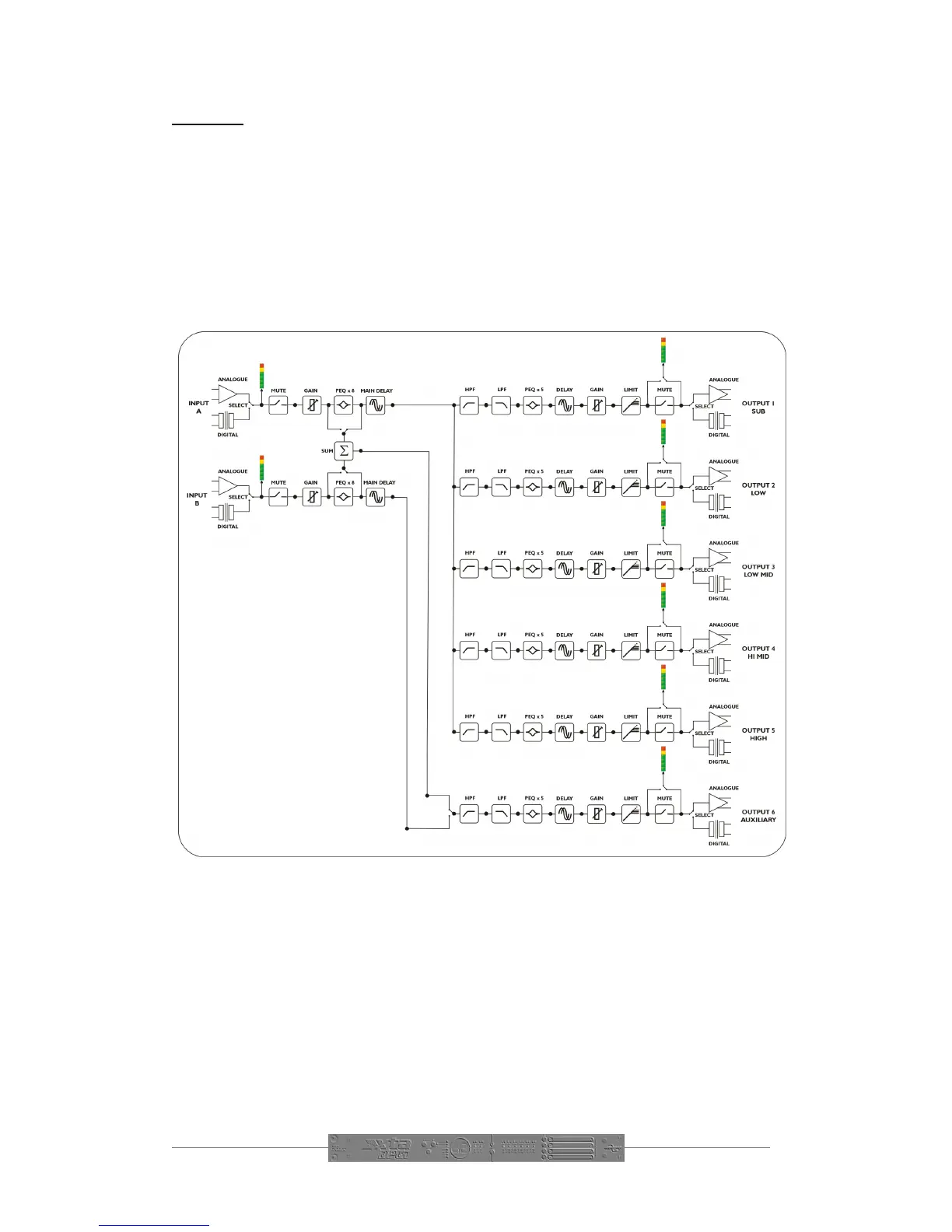

5 way + 1
This format feeds input A to outputs 1, 2, 3, 4, and 5 designated sub, low, lo-mid, hi-
mid and high respectively. Output 6 is configured as an auxiliary, with the source
being either input B, or the sum or inputs A and B. The choice of pre or post input
EQ for the sum signal is only offered if output 6 is chosen to feed form the sum. This
configuration also allows all the input EQ to be moved to input A, giving 16 bands of
fully parametric EQ. If there does not appear to be any EQ on input B, this will be
why.
