2
Connecting & Lower Swing Arms
Hardware Step 2
#102. 5/16” x 15mm
Hex Head Bolt (2 pcs)
#113. 5/16” x 15mm”
Button Head Socket
Bolt (2 pcs)
#122. 8.5 x 26 x 2.0
Flat Washer (4 pcs)

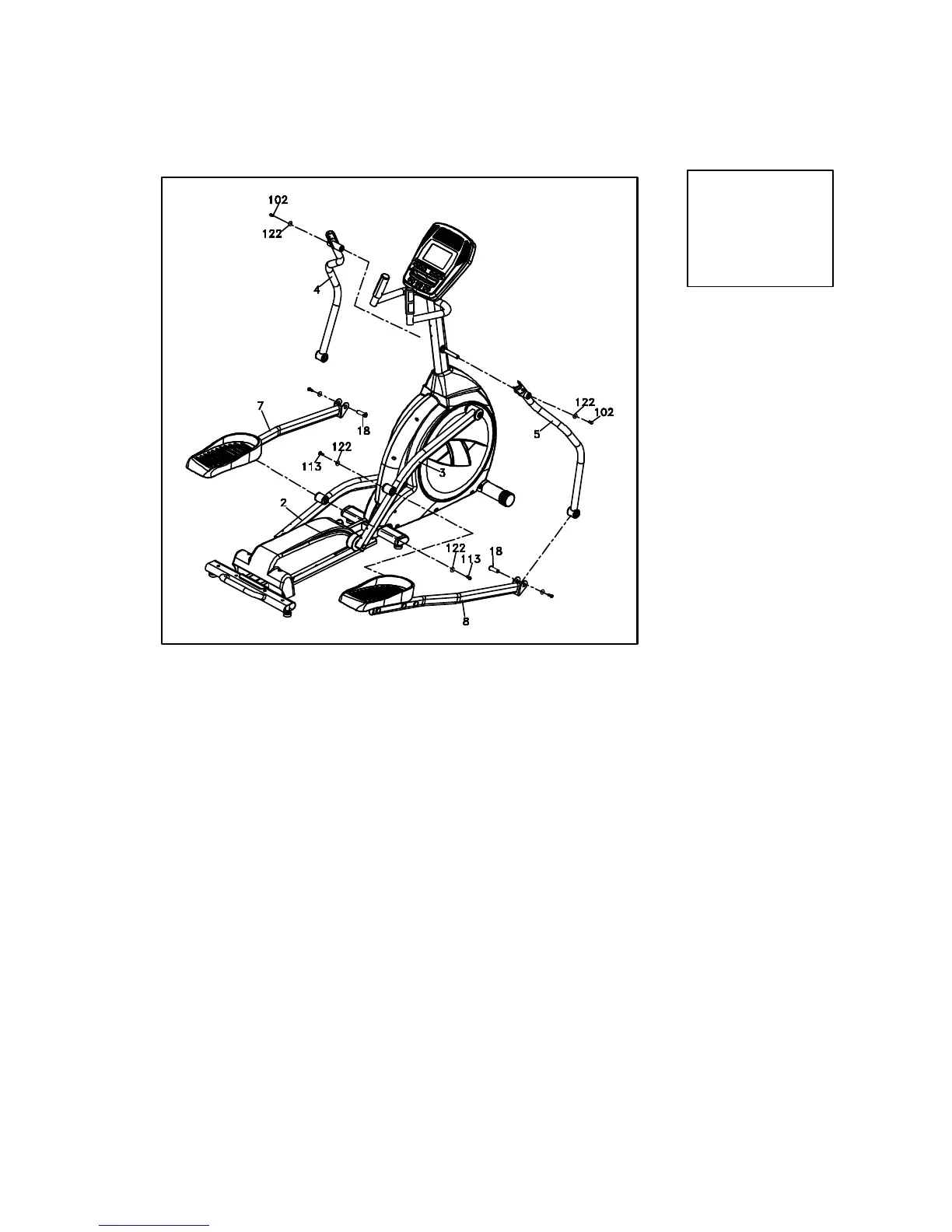

1. Slide the Lower Handle Bars (L) and (R), (4) and (5) onto each side of
the Console Mast Axle. Secure each side with a Flat Washer (122) and a
Hex Head Bolt (102). Tighten with the Wrench (156).
2. Insert the shaft of the left Connection Arm (7) through the bushing
of the left Pedal Arm (2) and secure with a Flat Washer (122) and
Button Head Bolt (113). Tighten with the M5 Allen Wrench (157).
Repeat this step on the right side.
3. With the M5 Wench Allen (157) and the Screwdriver (158) remove the
Rod End Shaft (18) from the Connecting Arm (7) held with two
Hex Head Bolts (102) and two flat washers (142). Slide the
bushing of the Lower Handle Bar (4) into the bracket end of the
Connecting Arm (7). Secure in place with the Rod End Shaft (18),
Washer and Screw that was removed earlier in this step. Tighten
with the M5 Allen Wrench (157) and Screwdriver (158). Repeat
this step on the right side.
