Xterra 164174535US User Manual

CUSTOMER SERVICE 1-888-707-1880 Dyaco Canada Inc.©2014
7

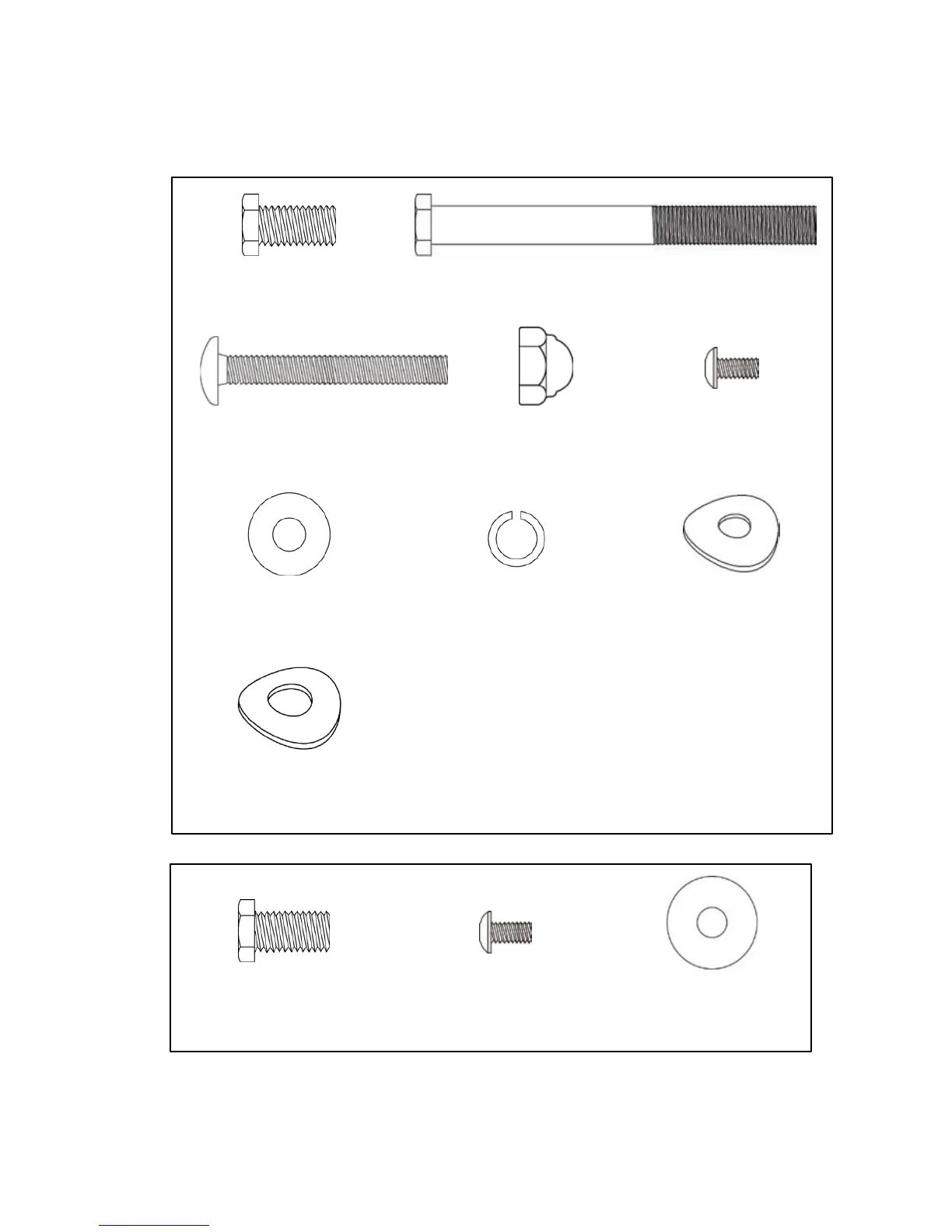

Assembly Pack Checklist
Hardware Step 1 (not shown at actual size)
Hardware Step 2
#102 – 5/16” x 15 Hex
Head Bolt
(6 pcs)
#104. 3/8"x3-3/4"
Hex Head Bolt (2 pcs)
#105. 3/8” x 3”
Carriage Bolt (2 pc)
#106. 3/8”
Cap Nut (2 pcs)
#115. M5 x 10mm
Phillips Head Screw
(4 pcs)
#143. 5/16” x 20 x 1.5T
Flat Washer
(4 pcs)
#146. 3/8” x 2
Split Washer
(2 pc)
#147. 5/16” x 23 x 2
Curved Washer
(2 pcs)
#148. 3/8” x 23 x 1.5
Curved Washer (4 pcs)
#102
. 5/16” x 15mm
Hex Head Bolt
(2 pcs)
#113. 5/16” x 15mm
Button Head Socket
Bolt (2 pcs)
#122
ø8.5 x 26 x 2.0
Flat Washer(4 pcs)
