Xterra EU150 User Manual

10
EU150 Hybrid Elliptical Upright Bike
61
63
18
63
19
62
6060

61
62
30
31
63
18
13
1
20
26
27
28
29
22
19
57

EU150 Assembly Instructions
61
63
18
63
19
62
6060

61
62
30
31
63
18
13
1
20
26
27
28
29
22
19
57

61
63
18
63
19
62
6060

61
62
30
31
63
18
13
1
20
26
27
28
29
22
19
57


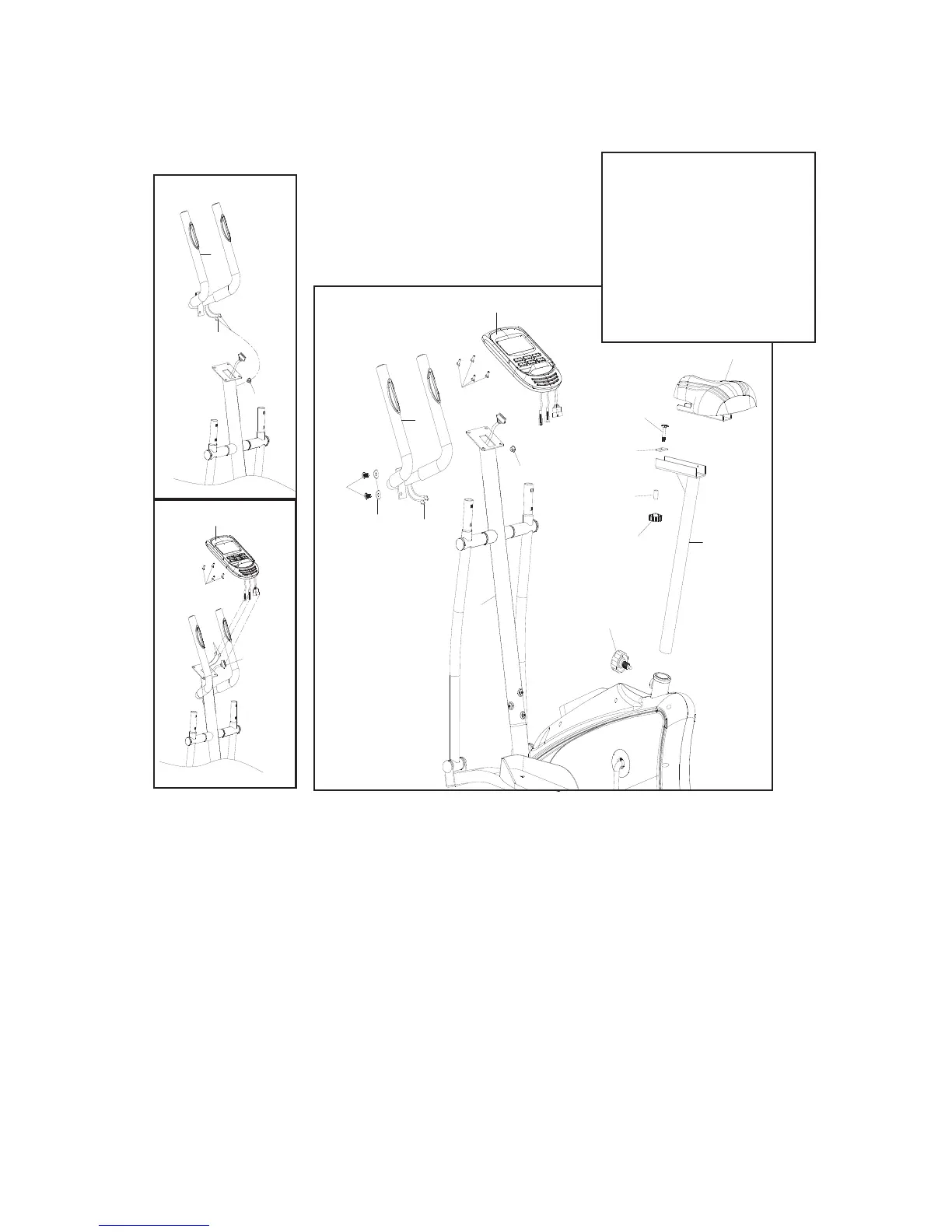

Handlebars and Console
5
Hardware Step 5
2 Allen Screws (#30)
2 Curved Washers (#31)
Pre-assembled on Console:
4 Screws (#62)
Pre-assembled on Seat Post:
1 Carriage Bolt (#26)
1 Quadrate Plate (#27)
1 Sleeve (#28)
1 Lock Knob (#29)
1. Attach the Stationary Handlebar (18) to the Front Post (13). Secure using two Allen Screws (30)
and two Curved Washers (31).
2. Insert the Hand Pulse Wires (63) through the Grommet (61) on the Front Post (13), and then
pull it out from the top of the Front Post (13). Connect Sensor Wire & Hand Pulse Wire (63) with
Computer (19) accordingly.
3. Attach the Computer (19) to the Front Post (13) and fasten with Four Screws (62).
4. Attach the Seat (22) onto the Seat Post (20), line up the holes then tighten with one Carriage Bolt
(26), one Quadrate Plate (27),one Sleeve (28) and one Lock Knob (29).
5. Screw off the Quick Release Knob (57) from the Main Frame (1), insert the Seat Post (20) to the
Main Frame (1). Line up the holes and secure seat in position with Quick Release Knob (57). The
correct height for seat can be adjusted after the upright elliptical is fully assembled.

Xterra EU150 Specifications

General

Brand	Xterra
Model	EU150
Category	Elliptical Trainer
Language	English
