MB550 Indoor Cycle
7
Water Bottle Holder
5
Hardware Step 5
Hardware Step 6
#110. 3/8” x 1-3/4”
Carriage Bolt (1 pc)
#111. 3/8” x 25 x 2T
Flat Washer (1 pc)
Hardware pre-installed

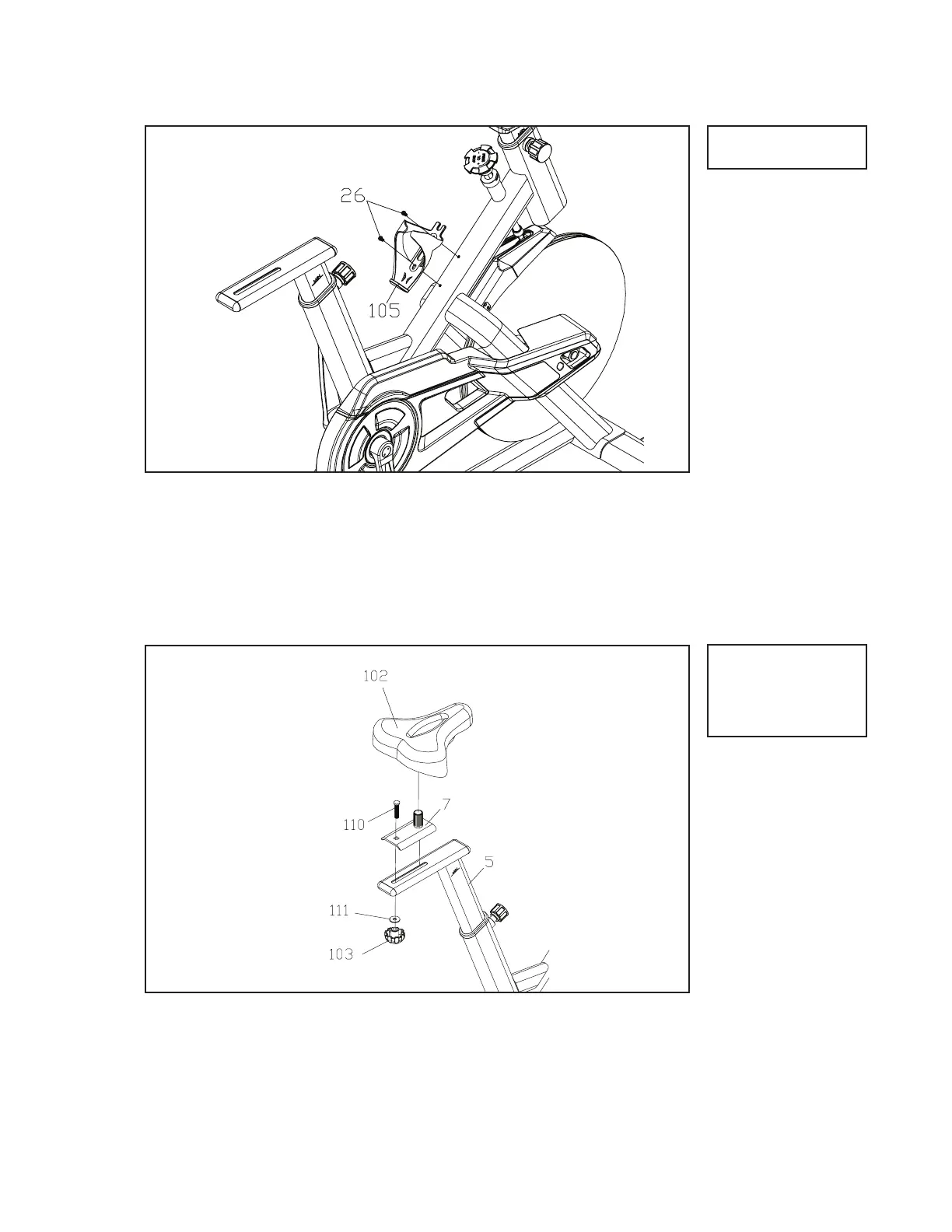

1. Secure Drink Bottle Holder (105) on the Main Frame (1) by using Com-
bination M5 Allen Wrench & Phillips Head Screw Driver (117) to tighten
two Phillips Head Screws (26).
Seat
6
1. Assemble sliding seat mount (7) on top of seat post (5). Slide carriage
bolt (110) from top downwards through sliding seat mount (7), seat post
(5) and at washer (111). Assemble seat fore/aft adjustment knob (103)
and secure tightly.
To Next Page
