Xterra SB120 - Assembly Instructions; Stabilizers and Main Frame Assembly

SB120 Recumbent Bike
9
Stabilizers and Main Frame
1

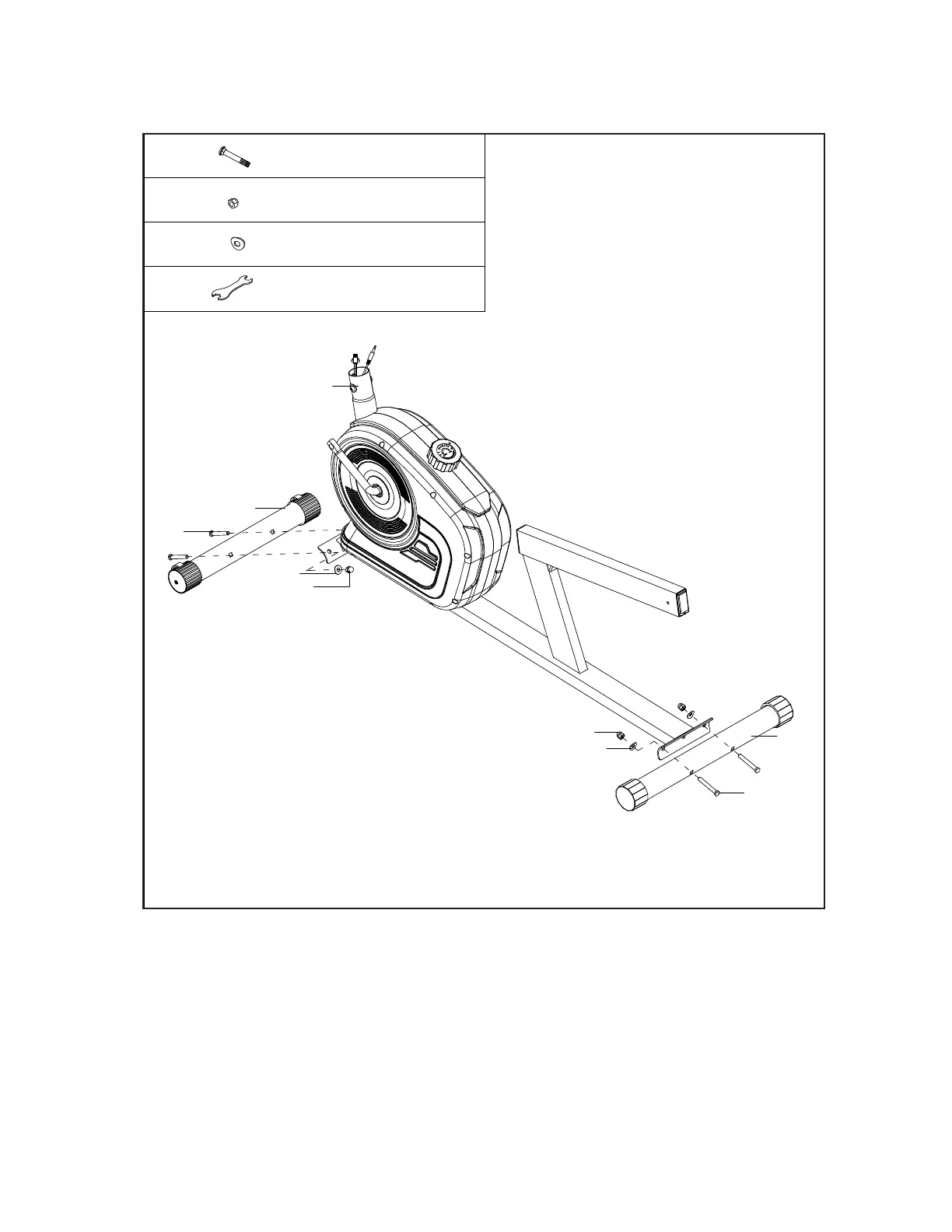

1. Attach the Front Stabilizer (No. 06) to Main Frame (No. 01) using 2 Carriage
Bolts (No. 15), 2 Curved Washers (No. 33) and 2 Domed Nuts (No. 30).
2. Attach Rear Stabilizer (No. 07) to Main Frame (No. 01) using with 2 Carriage
Bolts (No. 15), 2 Curved Washers (No. 33) and 2 Domed Nuts (No. 30).
01
06
15
30
30
33
15
07
33
15
30
33
72
4pcs
4pcs
4pcs
M8 x 60L
M8
8.5 x 20 x 1.5t
Wrench
