Xterra SB120 - Pedal Installation

10
SB120 Recumbent Bike
Installing the Pedals
2

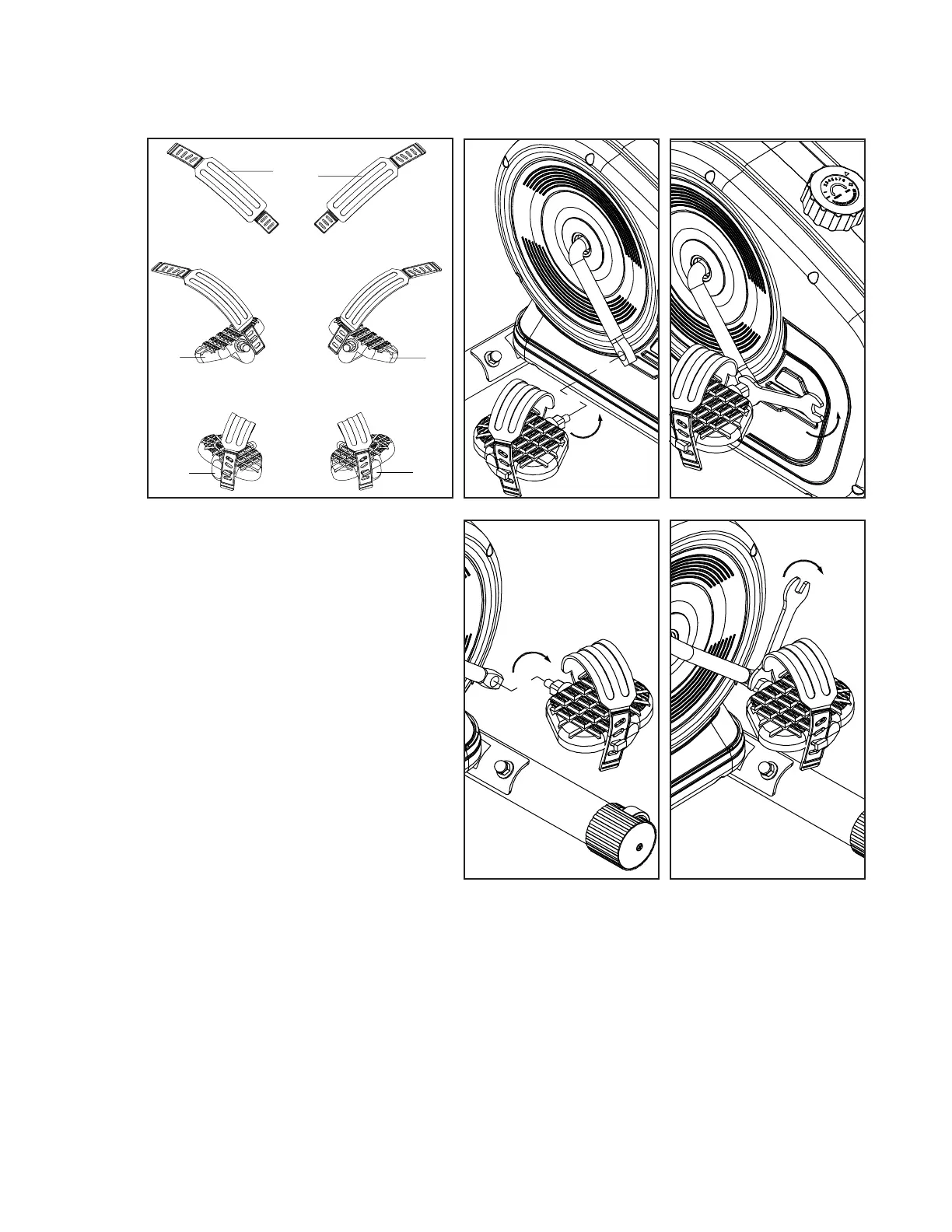

1. Attach the (L) Strap to the Left
Pedal (No. 28), and adjust the
strap to the length you need.
Use the same method to attach
the (R) Strap to the Right Pedal
(No. 29).
2. Connect Left Pedal (No. 28) to
the left side of Crank w/ Pulley
(No. 35), twist it counterclockwise
to tighten.
3. Connect the Right Pedal (No.
29) to the right side of Crank w/
Pulley (No. 35), twist it clockwise
to tighten.
Note that the straps should face outwards and the pedals should be mounted to
their respective sides to be functional.
L
28 29
29
28
R
