Xterra SB120 User Manual

SB120 Recumbent Bike
11
Tension and Pulse Wires
3

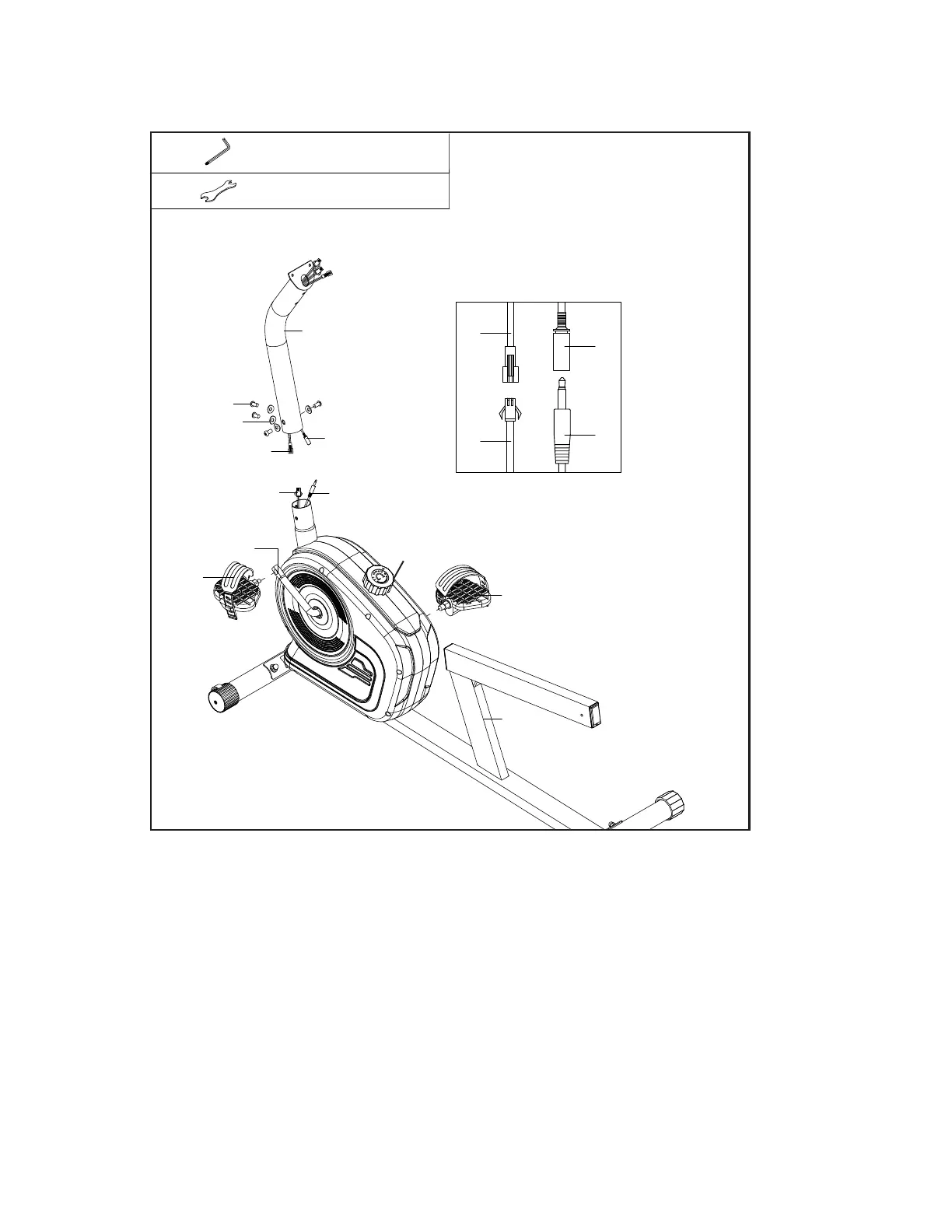

1. Remove the pre-installed 4 Allen Screws (No. 17) & 4 Arc Washers (No. 33) from
Front Post (No. 02) and connect the Upper Sensor Wire (No. 10) with the Lower
Sensor Wire (No. 11) (see g. 3.2).
2. Connect Upper Pulse Sensor Wire (No. 12) with Lower Pulse Sensor Wire (No. 13)
(see g. 3.3).
3. Insert the Front Post (No. 02) into the Main Frame (No. 01) and secure with 4 Allen
Bolts (No. 17) and 4 Curved Washers (No. 33).
Allen Key73
72
Wrench
10
02
12
13
17
33
10
11
35
28
29
01
12
13
11
Fig. 3.2
51
Fig. 3.3
