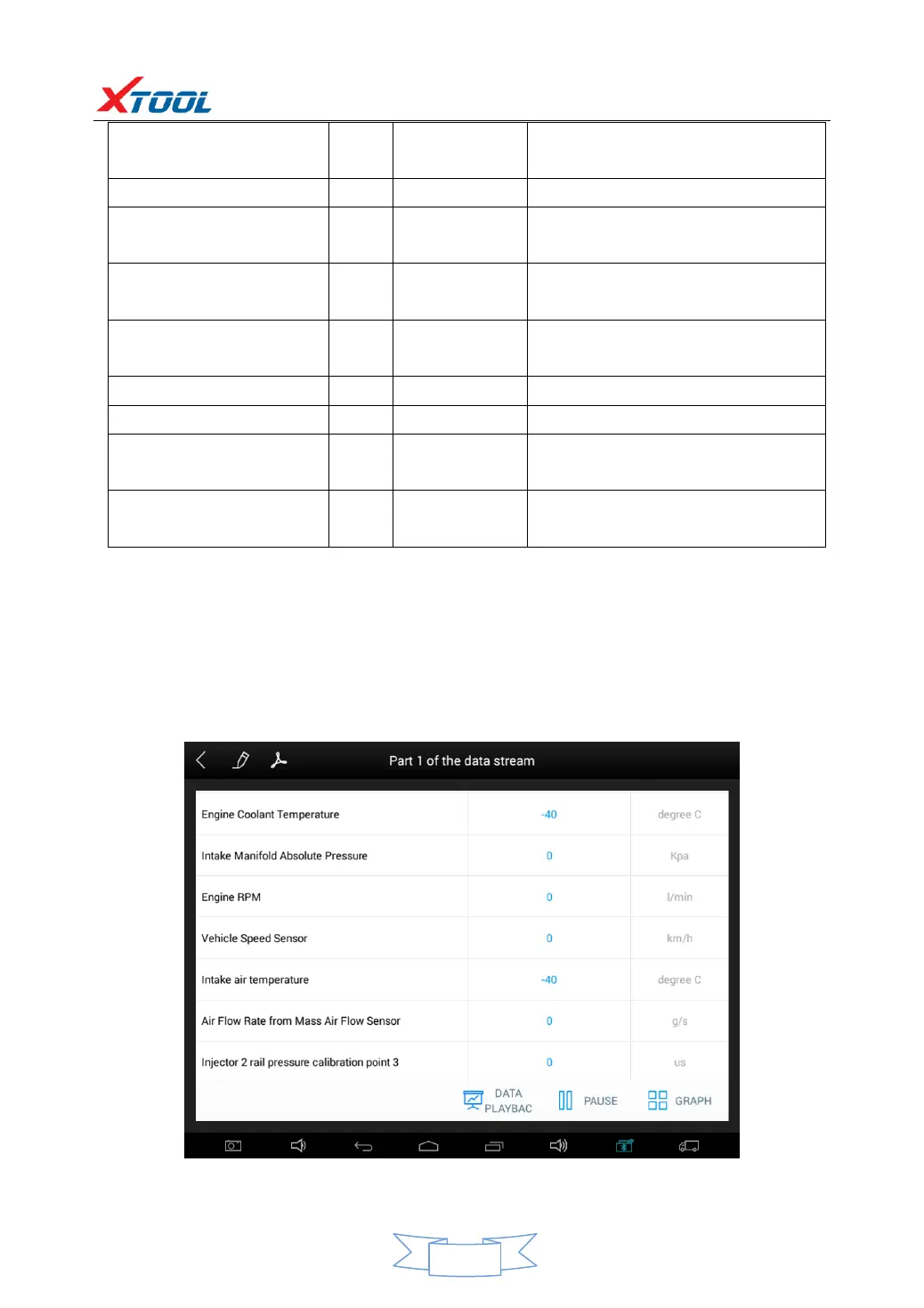

Xtool PS90 User Manual

PS90 Diagnosis System
13
5.Intake Air
Temperature
℃
-40-150
Show value a little higher than
ambient temperature
6.Battery Voltage
v
0-15
Idle speed: 11-13.5V
7.Injection closed-loop
correction
0-1.99
8.Load
ms
0-15
Dependent on throttle position
etc
9. Angle of Ignition
Advance
℃
0-50
Engine warmed-up: 5-15 ℃
variations
10.Air Intake
kg/h
0-255
Engine not started: 0
11.Intake Pressure
hpa
0-1013
Engine not started: 1013hpa
12. Idle-speed
Adjustment Status
0-255
13.Oxygen Sensor
mv
0-1000
Engine warmed-up: 50-960mv
variations
Display Modes:
There are three modes with which to view Live Data, users can choose the optimum
mode according to their own needs and different parameter types.
Digital Mode: Displays parameters in numerical form.
Dashboard Mode: Displays parameters in the form of simulated instrument
graphics.
Graph Mode: Displays parameters in graph form.
