3. Tilt the filter towards the left-hand side of the detector (Figure7-3). The filter has hinge pins at its base
which allow it to be tilted on the chamber manifold.

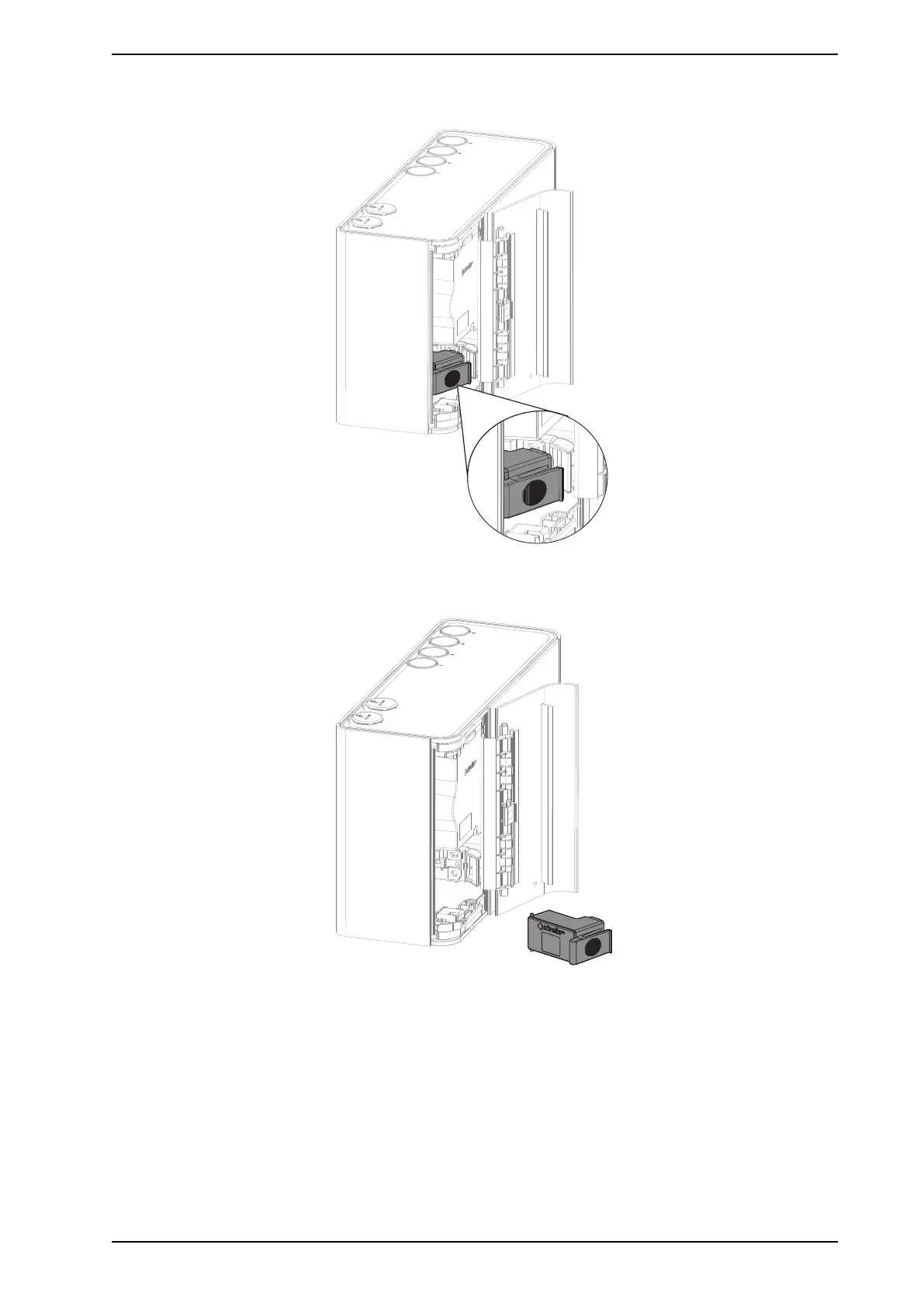

Figure7-3: Tilt Filter towards the left-hand side of the detector
4. Lift the filter out of the detector case (Figure7-4).
Figure7-4: Remove Filter
Reinstall the Filter
Note: Ensure that the new filter is free of lint and dust.
1. Tilt the filter towards the left and position its hinge pins in their recess (Figure7-5).
