VESDA-EVES-A10-P Product Guide
www.xtralis.com 71
5.5.12 Relay Options
The Relay options page provides the ability to determine which alarm or fault condition is assigned to each
relay and whether each condition is latched. In addition, each relay can be configured Normally Energized or
Normally De-Energized.

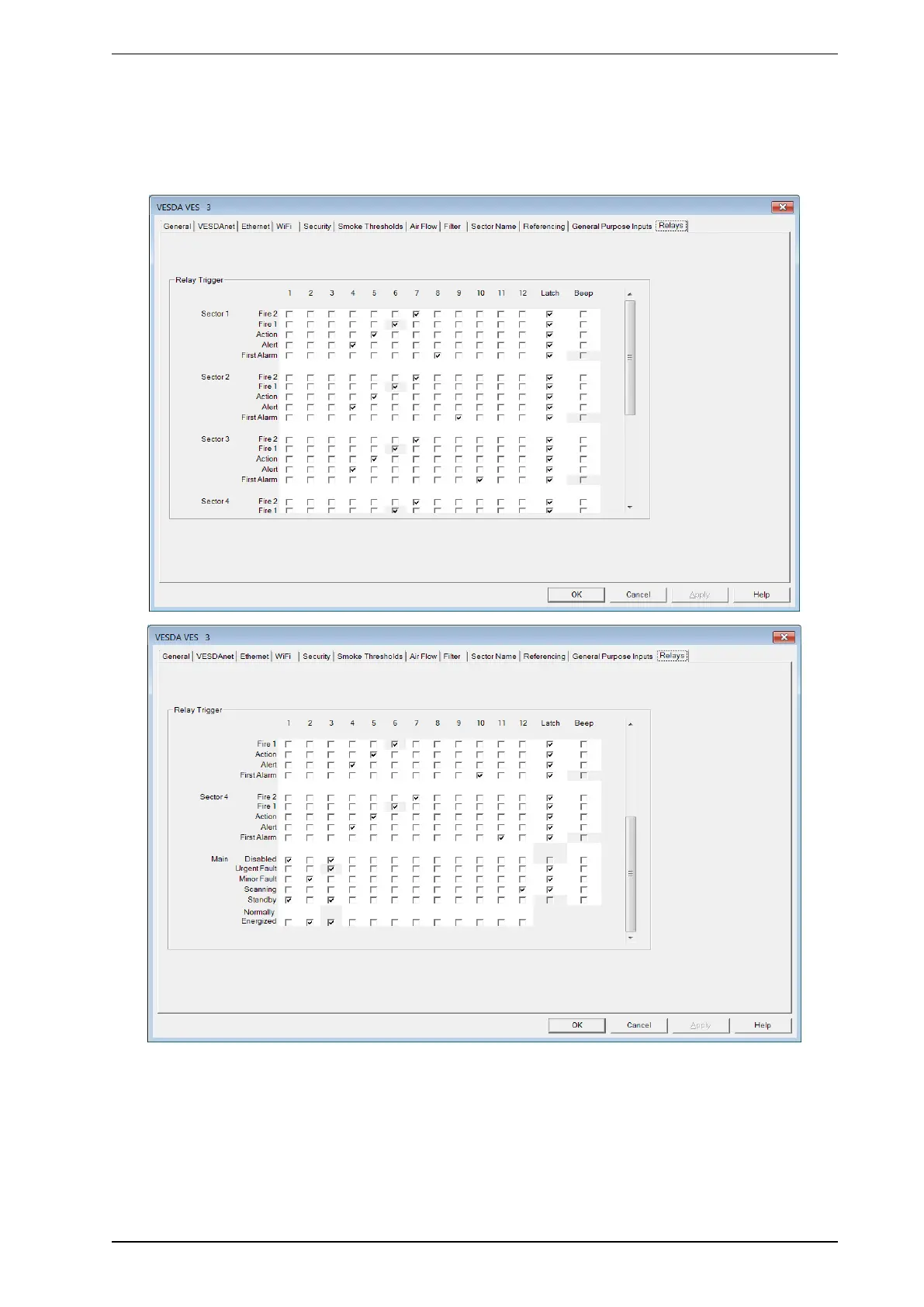

Figure5-23: Relay Options
Relay Assignments: Select the conditions you want to assign to each relay by checking the checkbox(es)
under the relay. The following checkboxes cannot be changed:
l Relay 6 always reports Fire 1
l Relay 3 always reports Urgent Fault and is always Normally Energised.
You can assign more than one condition to a relay.
