Xtralis VESDA-E VES-A10-P User Manual

VESDA-EVES-A10-P Product Guide
www.xtralis.com 3
1 Introduction
The VESDA-E VES-A10-P is a scanning aspirating smoke detector (ASD) that provides very early warning of
fire conditions by drawing air samples through an air sampling pipe network. The VESDA-E VES-A10-P can
monitor and individually report on four sectors in the protected area.

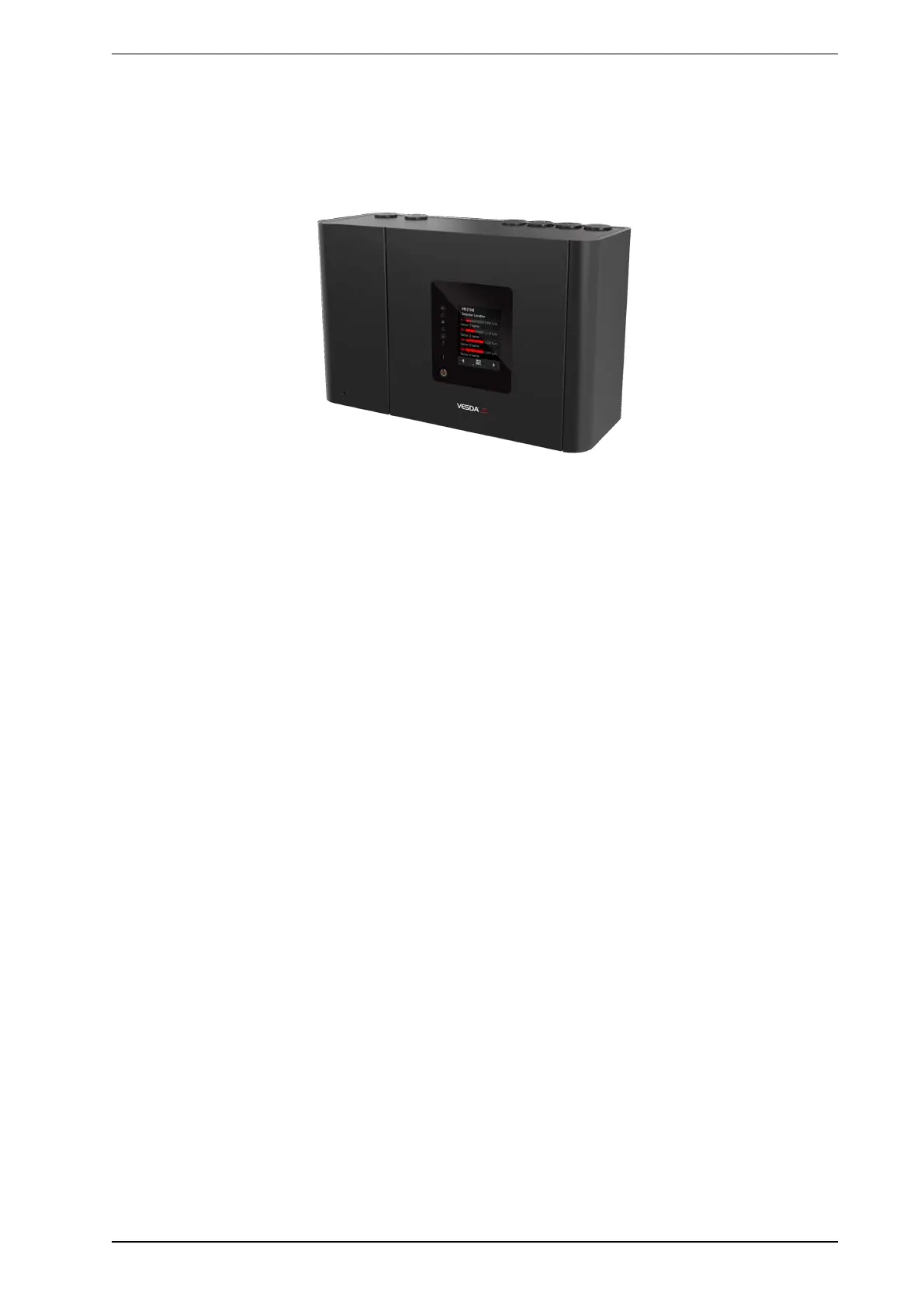

Figure1-1: VESDA-E VES-A10-P Scanning Aspirating Smoke Detector
The detector easily interfaces with fire warning and fire suppression release systems, and can be integrated
into a building management system (BMS).
1.1 Features
The VES-A10-P detector contains the following features:
l Sector addressability for up to four sectors or zones
l Adaptive scan threshold
l Short wavelength laser-based detection
l Inherent absolute calibration
l Clean air barrier for optics protection
l More robust contamination resistance
l Four configurable alarm levels per sector and a wide sensitivity range
l Flow fault thresholds configurable per port
l Long-life, easy-to-replace air sample filter
l 3.5" colour touch screen for status review
l Quiet operation
l Advanced remote diagnostics
l Area coverage: up to 2,000 m² (21,520 ft²) (VES-A10-P)
l Up to four inlet pipes
l Total maximum pipe length: Four pipe VES-A10-P:560 m (1,837ft)
l Referencing
l AutoLearn™ Smoke and Flow
l 12 programmable relays
l Two General Purpose Inputs (GPIs), one monitored and one unmonitored
l Ultrasonic flow sensing
l Xtralis VSC, Xtralis VSM4 and ASPIRE PC software support
l IP 40 enclosure (not UL tested)
l Easy mounting with steel support bracket
l Field replaceable aspirator, sampling module, filter, detection chamber, ultrasonic flow sensing and
scanner module
l VESDAnet networking
l Ethernet 100 base T
l WiFi, 802.11 b/g/n
l Local host mode USB port
l Easy cable termination access
l Event Log (20,000 events)

Xtralis VESDA-E VES-A10-P Specifications

General

Brand	Xtralis
Model	VESDA-E VES-A10-P
Category	Smoke Alarm
Language	English
