ASPIRE Software
VESDA Student Workbook 7-37
Activity
Please complete checklist item 19:
19. Create a Computer Room Ceiling Pipe Network
a. Add a VEP-1P detector
• Rename the detector Computer Room Detector #2
b. Add a Simple pipe
• Rename the pipe Computer Room Pipe
• Configure the number of bends before 1st hole to 4
• Click Finish
• Configure direction of your bends, starting at the top
• Change holes to Capillary
• Add two bends after 3
rd
Capillary
• Add four bends after 6
th
Capillary
• Configure the direction of last four bends
• Change Endcap to Test Point

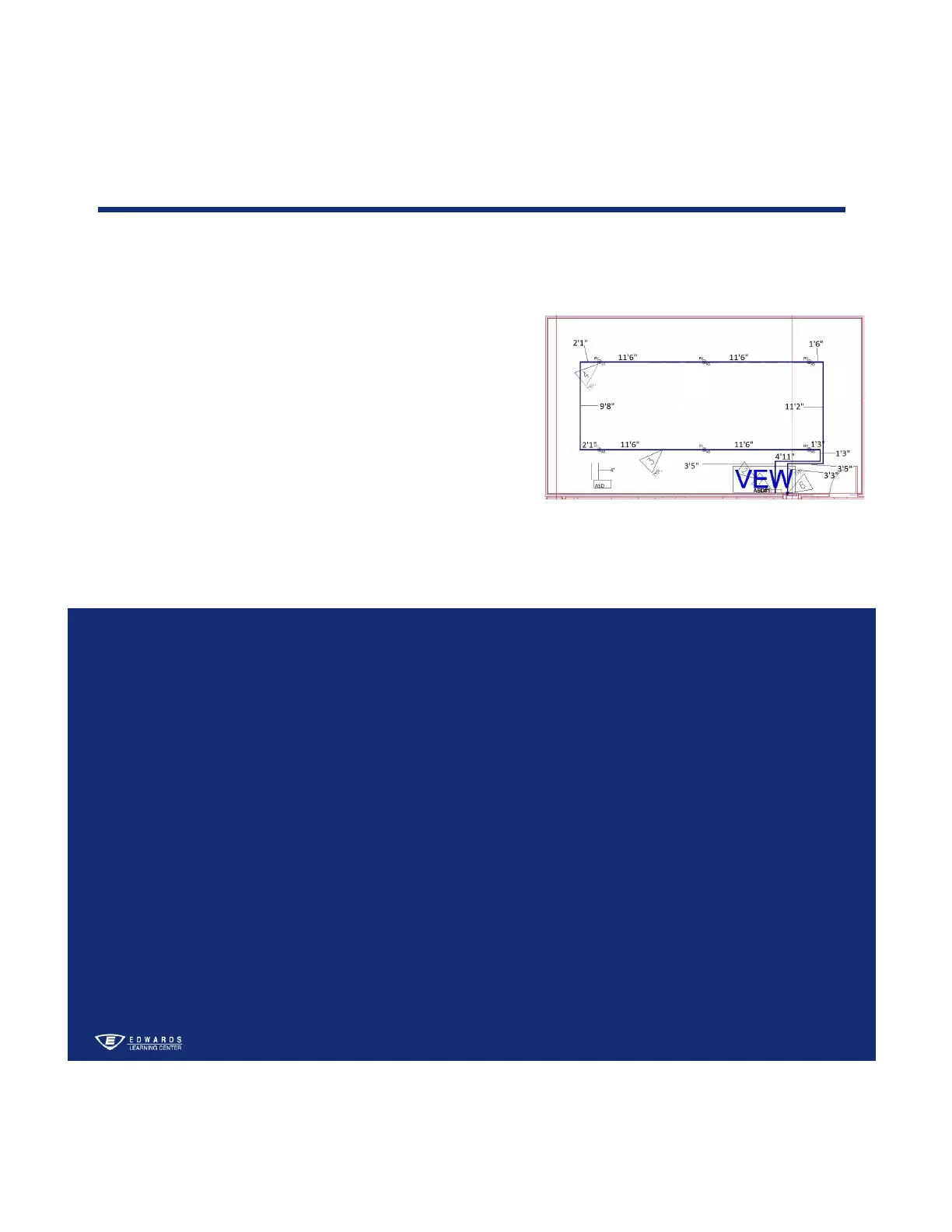

• Set Relative Distance (see drawing)
c. Click Calculate
d. Click Save
Create a Four Air Handler Unit
