4 Air Handler Unit (AHU)

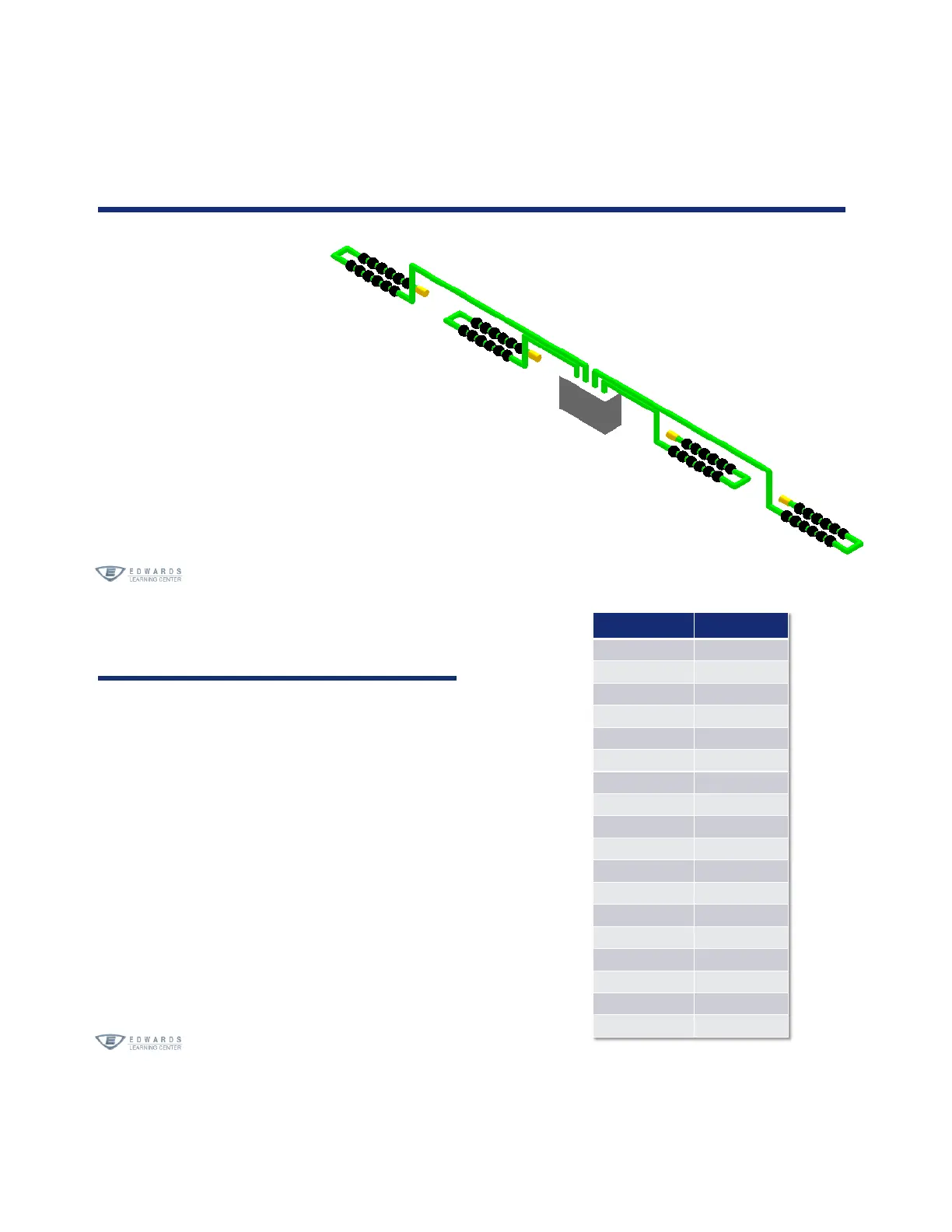

• 3D Isometric view of the 4
AHU design
• When copying pipes, copy 1
to make 2, 2 to make 3, and
3 to make 4
• Deviating from this order
could cause the pipes to
cross at the inlet
4 AHU design
• Add a VEP detector
• Rename the detector AHU
• Add simple pipe 5 bends
• Click Finish
• Direction elbows R D R F L
• Add 6 holes between the R & F 90s
• Add 6 holes between the L and the Endcap
• Close the Endcap
• Set Relative Distance (see drawing)
Pipes 1 & 4 Pipes 2 & 3
2 3
6 20
3 3.5
2 2
1 1
1 1
1 1
1 1
1 1
2 2
1.5 1.5
2 2
1 1
1 1
1 1
1 1
1 1
2 2
