ASPIRE Software
VESDA Student Workbook 7-39
A
B
C
D
EF G
A 2
B 3
C 3
D 20
E 6
F 2
G 1.5
H 3.5
4 3 2 1
H
182

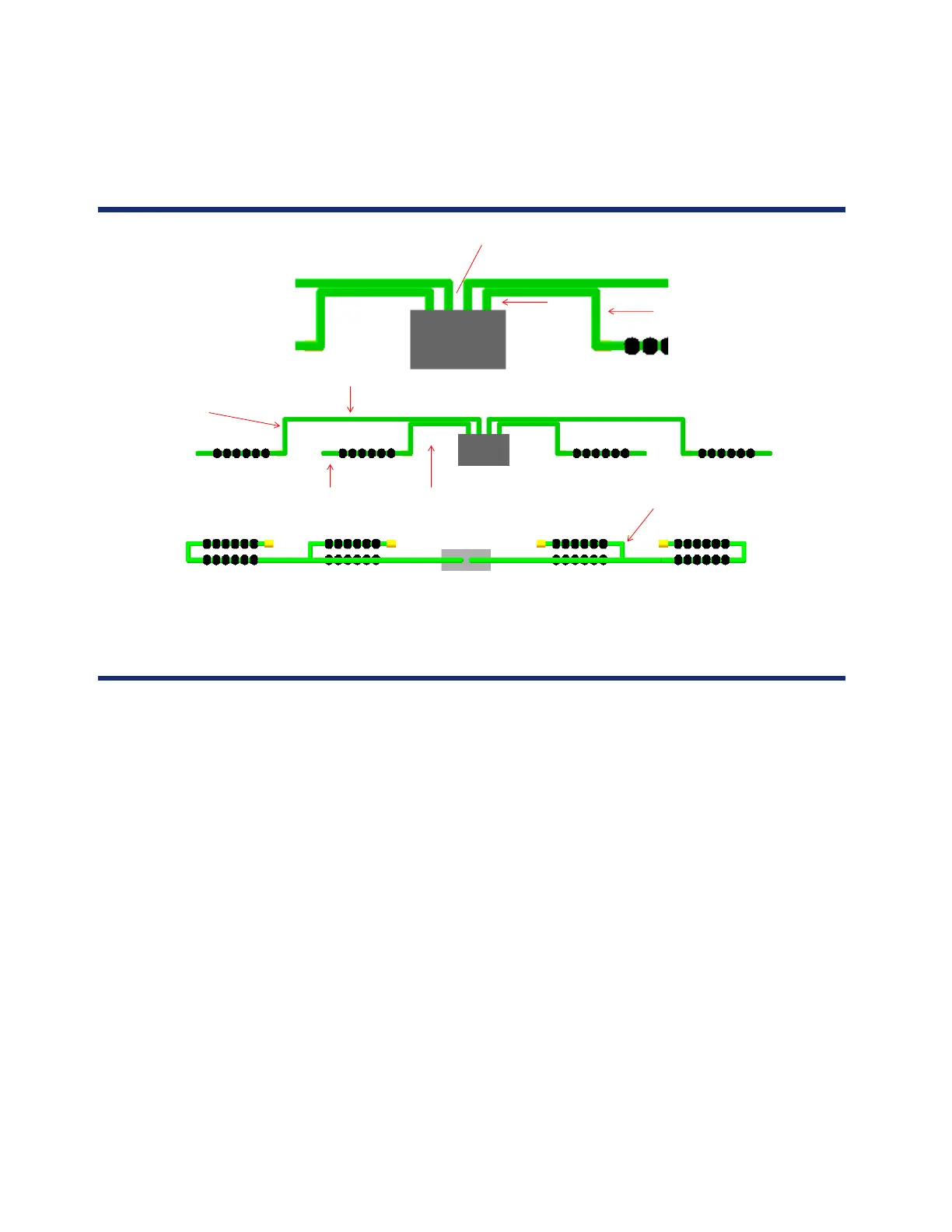

4 AHU design
Activity
Please complete checklist item 20:
20. Create a 4 AHU design
a. Add a VEP detector
• Rename the detector AHU
b. Add simple pipe
• Set Number of bends before 1
st
hole to 5
• Click Finish
• Direction elbows R D R F L
• Add 6 holes between the R & F 90s
• Add 6 holes between the L and the Endcap
• Close the Endcap
• Set Relative Distance (see drawing)
