XtremepowerUS 75117 - Replacement Parts; Parts Diagram

19
REPLACEMENT PARTS
REPLACEMENT PARTS

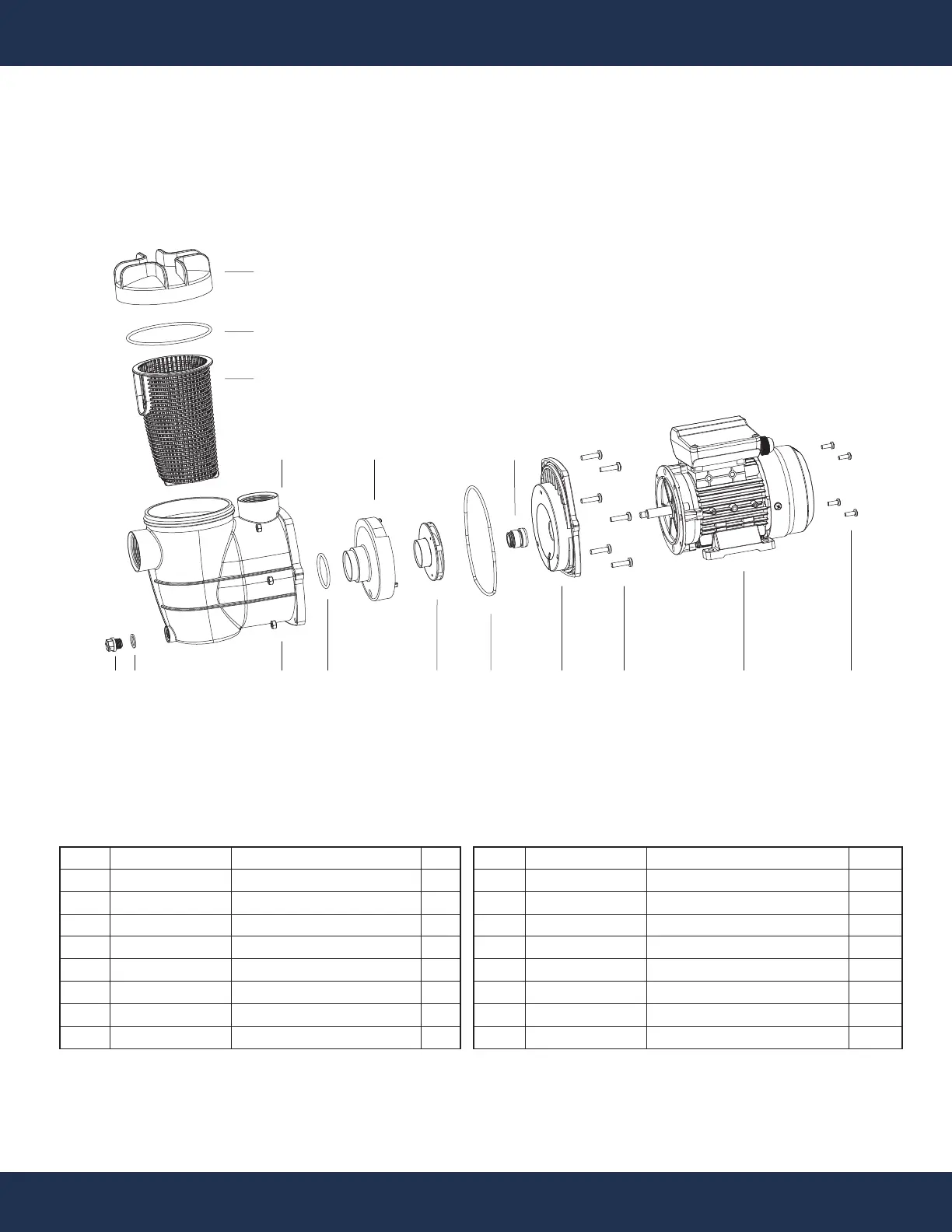

PARTS DIAGRAM
ITEM
1
2
3
4
5
6
7
8
REFERENCE #
647251503000
65431071080
647251507001
647251501080
65431070080
647251504080
647251271000
65431037080
DESCRIPTION
COVER
O-RING Φ107.54*Φ3.53
BASKET
PUMP HOUSING
O-RING Φ40.87*Φ3.53
DIFFUSER
IMPELLER
O-RING Φ134*Φ3.5
QTY
1
1
1
1
1
1
1
1
ITEM
9
10
11
12
13
14
15
16
REFERENCE #
65028013000
647251502080
65224004000
65023018000
65224025000
65231002000
65432002080
88601007
DESCRIPTION
SEAL ASSEMBLY
PUMP COVER
SCREW M6X25
MOTOR
SCREW M5X14
NUT M6
GASKET Φ19*Φ13*1.57
DRAIN PLUG
QTY
1
1
6
1
4
6
1
1
1
2
3
4
5
6
7
8
9
10
11 12 131516 14
