INSTALLATION
Installation of the pump should be carried out exclusively by a qualified plumbing professional. For
further installation and safety information, please refer to the IMPORTANT SAFETY INSTRUC-
TIONS section. These instructions are crucial in ensuring the proper and safe installation of the
pump, thereby safeguarding against potential hazards, and ensuring optimal performance.
INSTALLATION
SWIMMING POOL
POOL FILTER
POOL PUMP
POOL
OUTLET PORT
VLALVE
INLET PORT
VLALVE
OUTLET PORT
POOL
INLET PORT
PUMP
INLET PORT
PUMP
OUTLET PORT
FILTER
INLET PORT
FILTER
OUTLET PORT
SIDE MOUNT VALVE

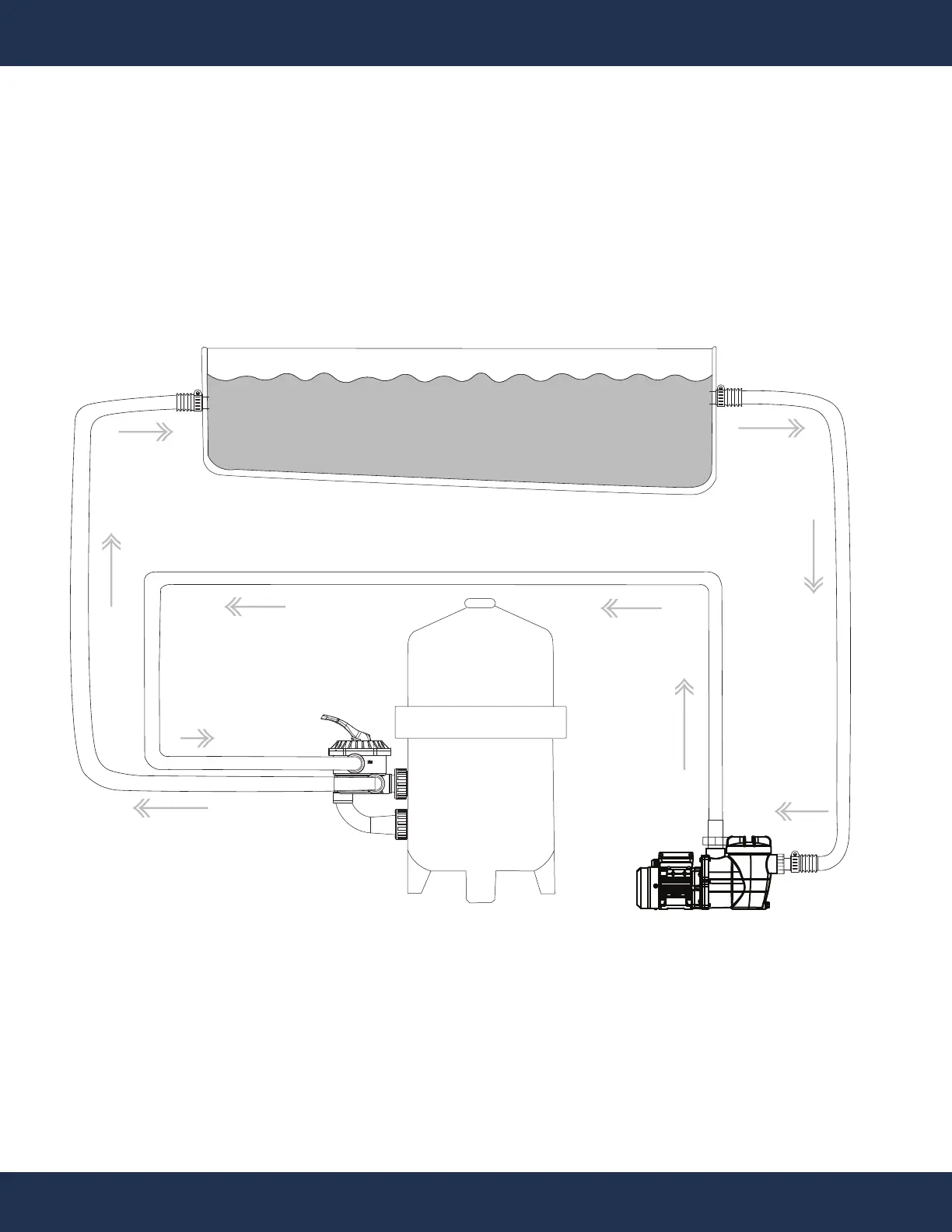

INSTALLATION LAYOUT DIAGRAM
