4. Check the functionality of the monitoring equipment:
a) Check that the signals and the tripping function work correctly.
b) Check that the relays, lamps, fuses, and connections are intact.
Replace any defective equipment.
4.9.6 Cable charts
Description
This topic contains general connection information. It also provides cable charts that show
connection alternatives for use with different cables and power supply.
WS000509E
L2
L3L1
L1
L3L2
T1
T2
Figure 15: Phase sequence

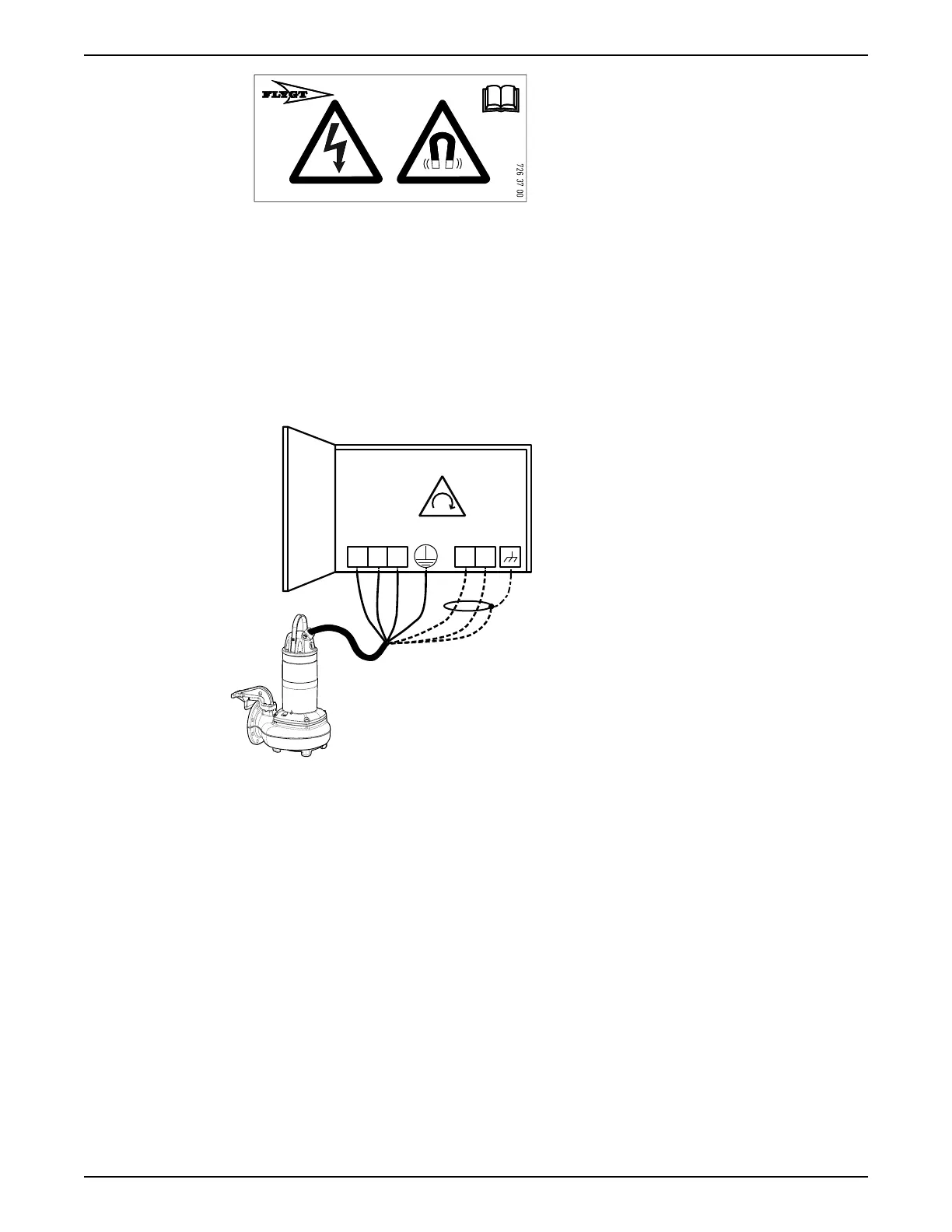

Connection locations
The figures in this section illustrate how to interpret the connection strip symbols.
4 Installation
Flygt 3102 Installation, Operation, and Maintenance Manual 31
