[ Levell]

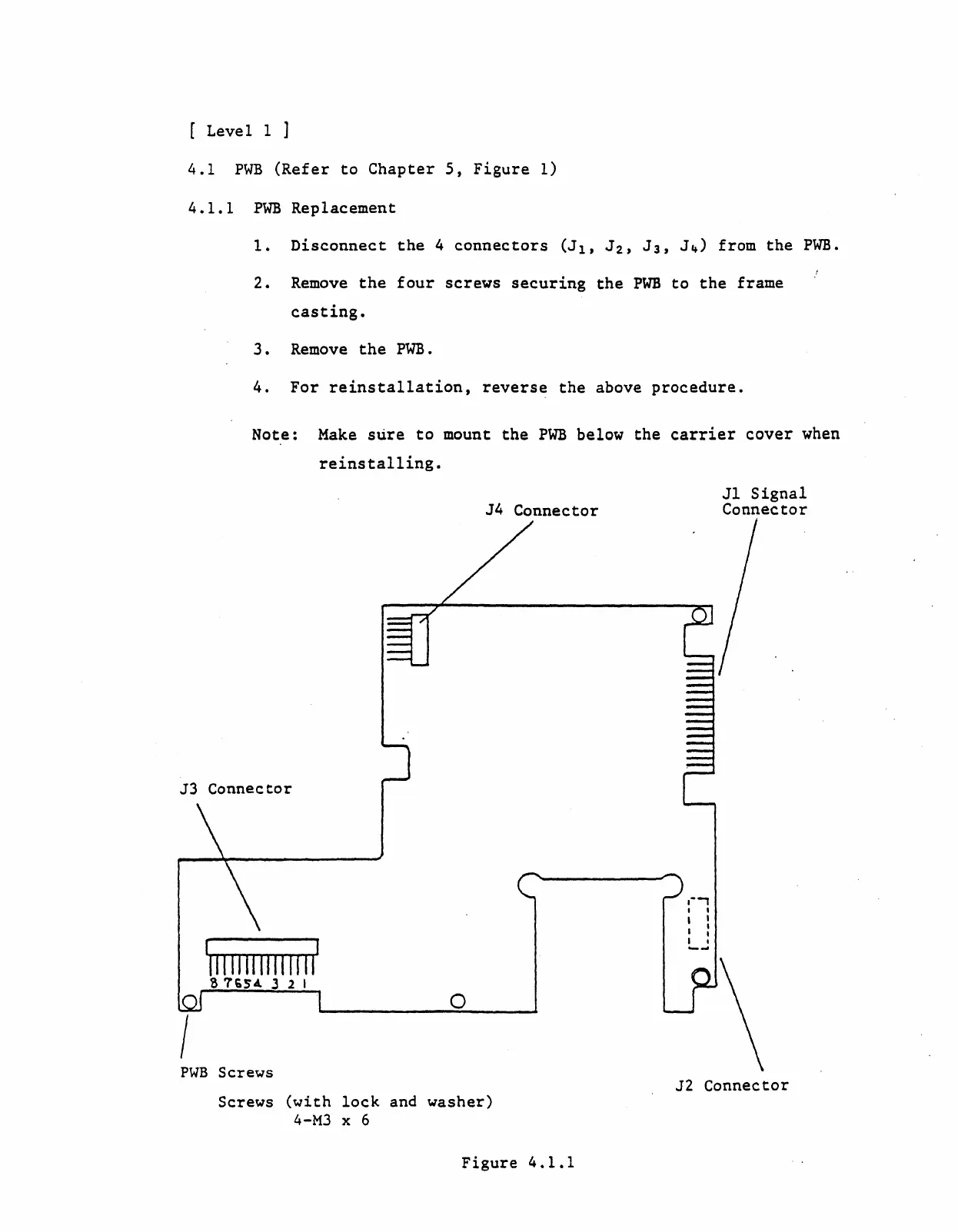

4.1 PWB (Refer to Chapter 5, Figure 1)
4.1.1 PWB Replacement
1. Disconnect the 4 connectors (J1, J2' J3, J4) from the PWB.
2. Remove the four screws securing the PWB to the frame
casting.
3. Remove the PWB.
4. For reinstallation, reverse the above procedure.
Note: Make sure to mount the PWB below the carrier cover when
reinstalling.
J4 Connector
J3 Connector
o
I
PWB Screws
Screws
(with lock and washer)
4-M3 x 6
Figure 4.1.1
Jl Signal
Connector
,--,
I ,
, I
, :
I ,
--
J2 Connector
