EN 23

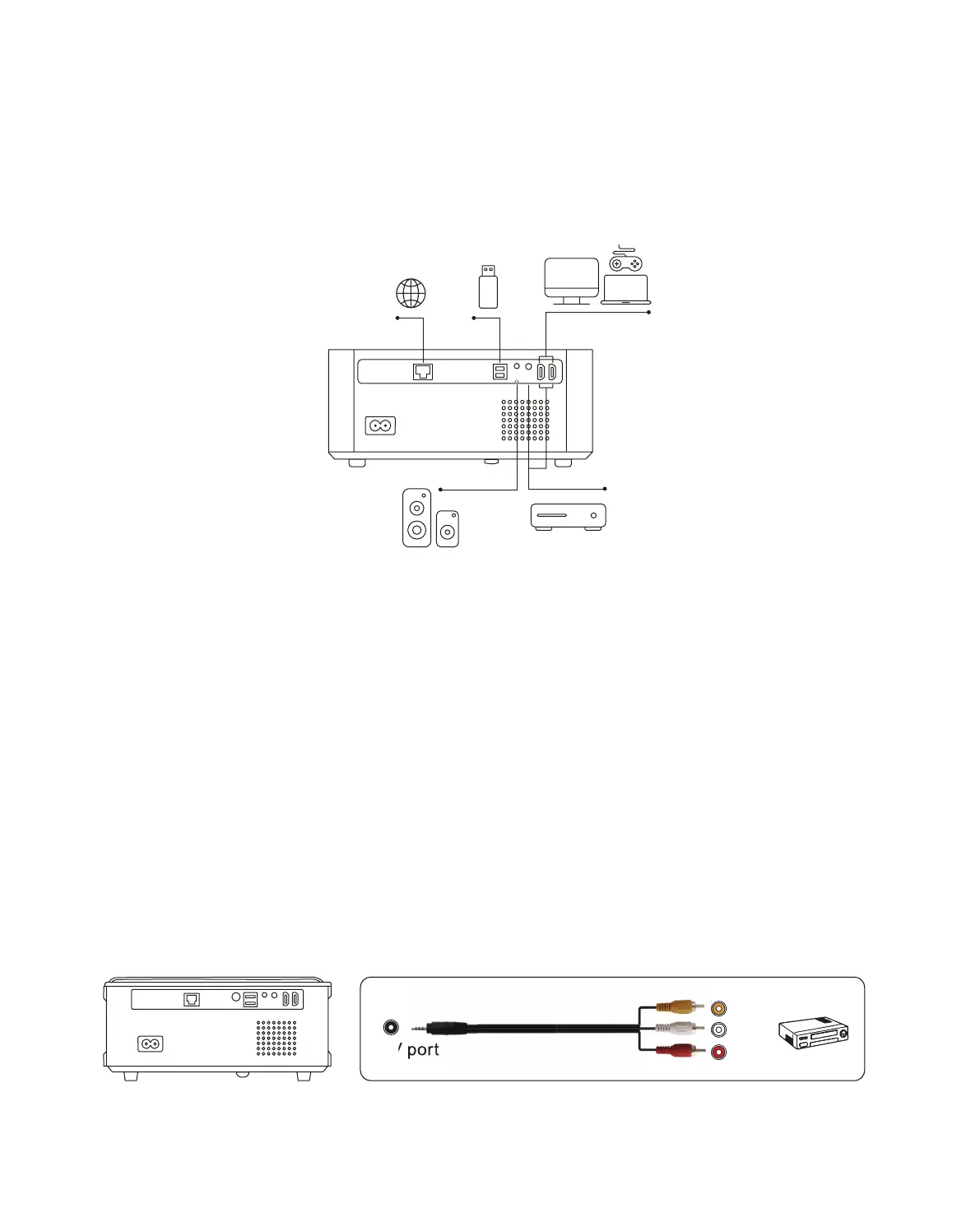

Signal Lines Connection
YABER Pro U6 projector has 7 interfaces, HDMI ports*2/ USB ports*2/ 3.5mm headphone
output/ AV in/ RJ45(Ethernet port). Please select the correct connecting port to connect
your device (PC, Phone, DVD Player, Sound bar, USB, PS4 etc.)
1. Connect your TV stick or laptop to any HDMI port of the projector.
2. Enter the home page to select the corresponding HDMI1 or HDMI2 as the signal source.
Use the 3-in -1 AV cable in the package
1. Connect your TV stick or laptop to any HDMI port of the projector.
2. Connect the colorful female connectors to your DVD player's RCA cable with the 3-in-1 AV
cable in the package.
3. Connect the black connector to the AV port of the projector, enter the home page to
select [ AV ] as the signal source.
1. Connect the Devices via the HDMI ports
2. Connect to the DVD Player
DVD
IR
AV
USB
HD1 HD2
Video
Left
AV port
Right
Or connect to the DVD Player with the HDMI cable in the package.
