Yaesu FT3DE User Manual

5

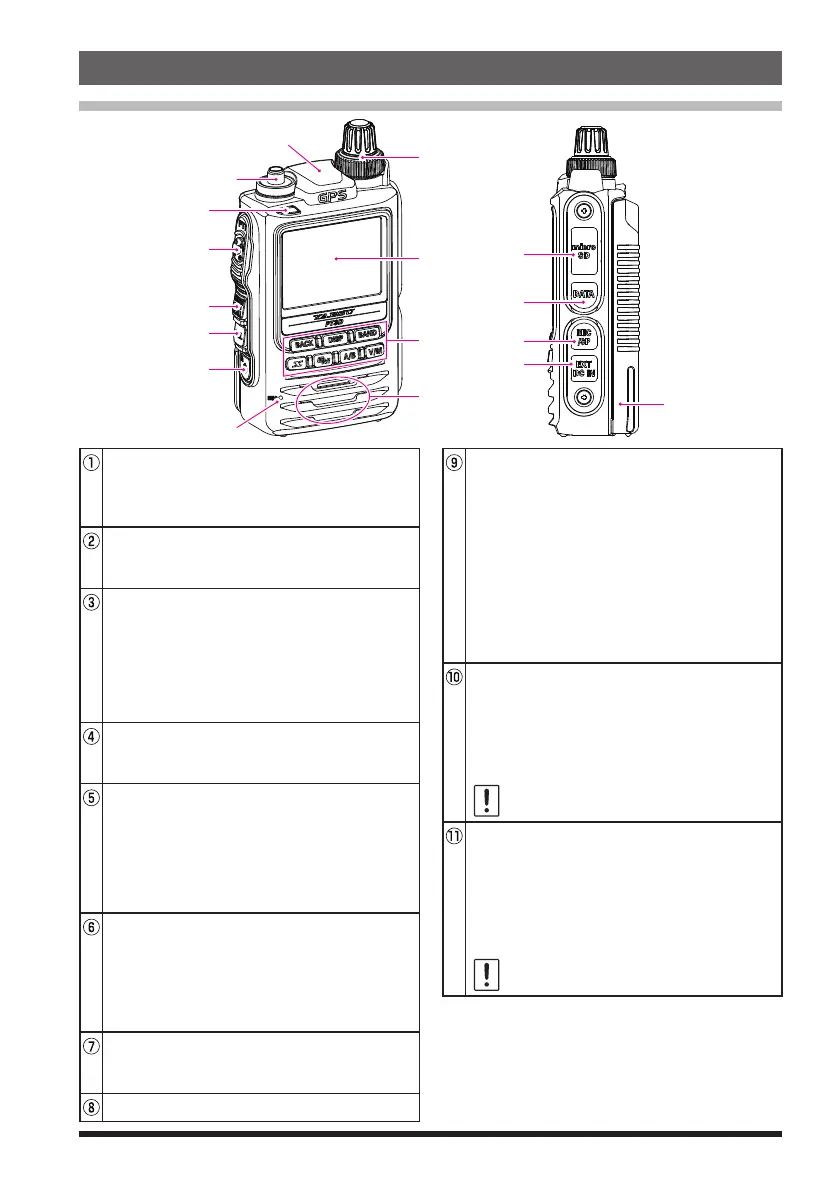

Controls & Connections
Transceiver
TX/BUSY LED
Lights green on A-band receive, blue on
B-band, and blue on A-band and B-band
receive. Lights red during transmit.
PTT Switch
Press and hold the PTT switch to transmit,
and release it to receive.
MONI/T-CALL Switch
USA/Asian version
Press the MONI/T-CALL switch to open
the squelch.
European version
Press the MONI/T-CALL switch to acti-
vates the T-CALL(1750 Hz).
SQL Switch
Press the SQL switch, then rotate the VOL
knob to adjust the squelch level.
Power (Lock) Switch
•When the power is OFF, press and hold
this switch to turn the Power ON.
•When the power is ON, press and hold
the switch again to turn the Power OFF.
•When the power is ON, press this button
briefly to engage, or release the key lock.
DIAL knob
Rotate the DIAL Knob to change the fre-
quency or select a memory channel.
VOL knob
Rotate the VOL Knob to adjust the audio
volume level.
Full Color Touch screen display
Touch to set the frequency and various
other settings.
MicroSD Memory Card slot*
DATA Terminal*
•Connect the optional camera-equipped
microphone (MH-85A11U) to this terminal.
•To use the clone function, connect to an-
other FT3DR/DE with an optional clone
cable (CT-168).
•When updating the firmware, connect to
a PC using a USB cable.
* For instructions to update the firmware,
access the Yaesu Website.
•An external GPS may be connected to
this terminal.
MIC/SP jack*
Connect the optional speaker microphone
or earpiece microphone to this jack.
When an external microphone or cable is
connected, the dust and splash protection
does not function.
Do not connect any microphone which
is not specified by Yaesu.
EXT DC IN jack*
•To charge the battery pack, connect the
battery charger (SAD-25) to this jack.
•Connect an external power supply adapt-
er with a cigarette lighter plug (SDD-13)
or an external power cable (E-DC-6) to
this jack.
Do not connect any battery charger
which is not specified by Yaesu.
* When the included antenna and battery pack
are installed and the MIC/SP jack, DATA
terminal, micro SD card slot and EXT DC IN
jack are securely covered with rubber caps,
the FT3DR/DE meets the IPX5 waterproof-
ing specifications.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
GPS Antenna
Speaker
Operation keys
Microphone
Battery Pack
Antenna Jack (SMA)

Yaesu FT3DE Specifications

General

Frequency Range	144-148 MHz, 430-450 MHz
GPS	Yes
Bluetooth	Yes
Waterproof Rating	IP54
Memory Channels	1000
Modulation	FM
Display	color TFT
Battery	2000 mAh Li-ion
Battery Life	Approx. 12 hours
Operating Modes	VFO, Memory
