EXPLODED VIEW-2
FT
DX
3000 Technical Supplement

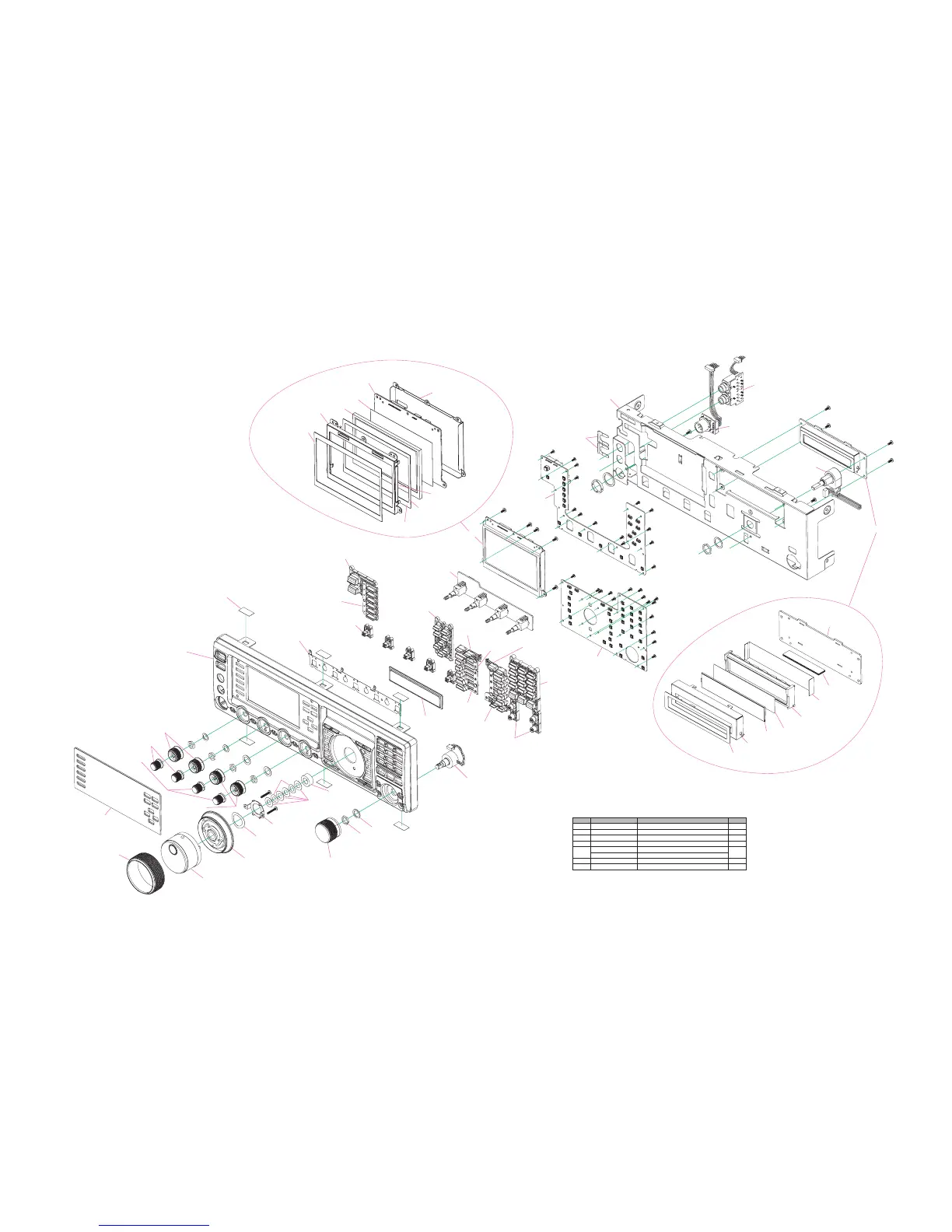

Exploded View
RA1385800
RUBBER RING(MAIN)
RA1381900
WINDOW(TFT)
RA1385200
ENCODER KNOB(OUT)
RA138150A
FRONT PANEL(PRT)
RA1385100
ENCODER KNOB(IN)
RA1384900
VOLUME KNOB(IN)
RA1385000
VOLUME KNOB(OUT)
RA0744600
SLEEVE
RA1382100
WINDOW(LCD)
RA1382300
SHIELD CASE COVER
RA1382400
PUSH KNOB(PWR)
RA1384600
SPACER(TFT)
DISPLAY-1-UNIT
RA1384500
SHIELD CASE COVER
DS7001
RA1384400
SHIELD CASE(TFT)
RA1384700
GASKET (8x48) (3 pcs)
RA1480300
DOUBLE FACE(TFT)
RA138430B
SPONGE RUBBER(TFT)
RA1382500
PUSH KNOB(ANT)
RA1398000
KNOB ASSY (MOX) (5 pcs)
RA1382600
PUSH KNOB(MENU)
S5000329
FITTING MET41-0191
RA1384800
PANEL FRAME
VR-A-UNIT
DISPLAY-1-UNIT
SW-B-UNIT
RA1383000
PUSH KNOB(STO)
RA1382900
PUSH KNOB(TRXB)
RA1382800
PUSH KNOB(TRXA)
RA1383100
PUSH KNOB(MAINL)
RA1383200
PUSH KNOB(MAINR)
RA1383300
PUSH KNOB(10KEY)
RA1384100
REFLECTOR SHEET
RA1384200
INTER CONNECTOR
RA1384000
LIGHT GUIDE(LCD)
RA1436400
DIFFUSER SHEET(LCD)
RA1383900
SPONGE RUBBER(LCD)
RA1383800
LCD HOLDER
DS7501
RA1383500
KNOB ASSY(VFO)
S0002
S0001
R7155600
HIMERON (6 pcs)
RA0729400
WASHER (POLYSLIDER)
RA1385900
ROTARY KNOB(CLAR)
RA138540A
KNOB BASE(ASSY)
RA1385700
KNOB SKIRT
RA0979300
HOLDER(SPRING)
①
②
③
③
④
⑤
⑥
⑥
⑥
⑥
⑥
⑥ ⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
SW-A-UNIT
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
⑥
MIC-UNIT
DISPLAY-2-UNIT
DISPLAY-2-UNIT
JACK-UNIT
⑦
⑦
⑦
⑦
⑦
⑦
⑦
⑦
⑦
⑦
⑦
REF. YAESU P/N Description Qty.
①
U9900192 WAVE WASHER WW-6012(SUS) 2
②
U9900211 WAVE WASHER WW-16011(SUS) 1
③
U24216001 BIND HEAD TAPTITE-B M2.6X16 2
④
U62009001 VOLUME NUT 9X12X2 1
⑤
U9900292 (Lot. 1~2) TOOTHED LOCK WASHER AW-9103(3)
1
U70015001 (Lot. 3~) PLAIN WASHER FW9X14X0.5
⑥
U24105001 BIND HEAD TAPTITE-B M2X5(3) 29
⑦
U24206001 BIND HEAD TAPTITE-B M2.6X6 11
Non-designated parts are available only as psrt of a designated assembly.
