Yaesu VX-7R - TECHNICAL - AF Unit Parts Layout

34

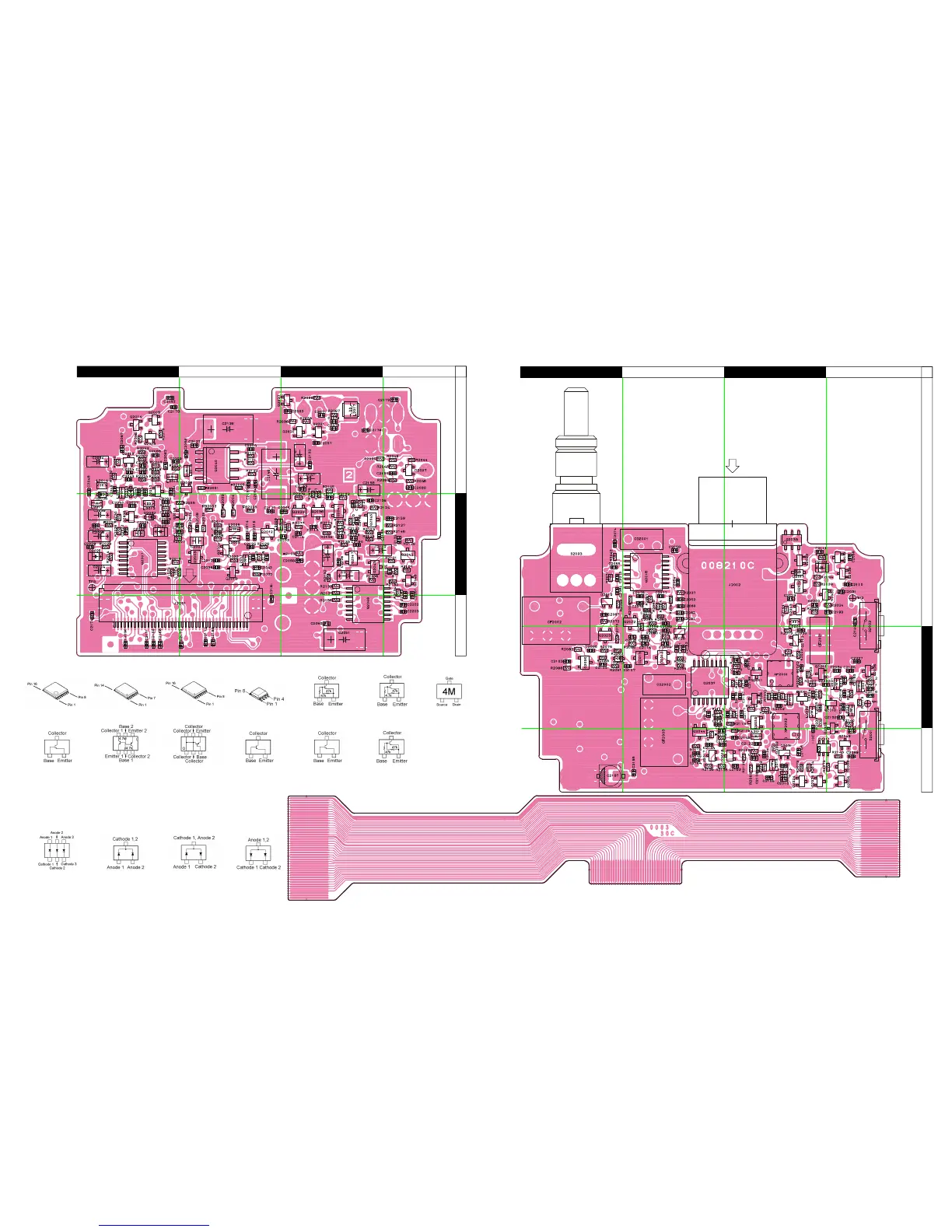

AF Unit
Parts Layout
TDA7233D
(Q2040)
BU4094BCFV-E2
(Q2048)
DTC143ZE (E23)
(Q2039)
UMB3N (B3)
(Q2003)
DAP222 (P)
(D2001)
2SC5374 (NA)
(Q2017, 2018, 2019,
2031)
2SJ364-R(4M)
(Q2029, 2036, 2042,
2043, 2047)
D
Side A
A C
1
2
3
B
Side B
da cb
1
2
3
DA221 (K)
(D2003, 2017, 2018)
MC2850 (A7)
(D2012, 2013, 2016)
DAN222 (N)
(D2004, 2007, 2008,
2009, 2010)
HN2D01FU (A1)
(D2011)
DTC144EE (26)
(Q2001, 2005, 2015,
2027, 2028, 2035,
2046)
2SC4154E (LE)
(Q2003, 2012, 2022,
2023, 2030, 2032,
2041, 2044, 2045)
2SC4915 (QY)
(Q2002, 2004, 2006,
2010, 2011, 2013,
2038)
MB15A01PFV1
(Q2007)
DTA144EE (16)
(Q2008, 2034)
2SA1774 (FR)
(Q2009, 2014, 2020,
2021, 2024, 2025,
2026, 2049)
TA31136FN
(Q2016, 2037)
CPH6102 (AB)
(Q2033)
