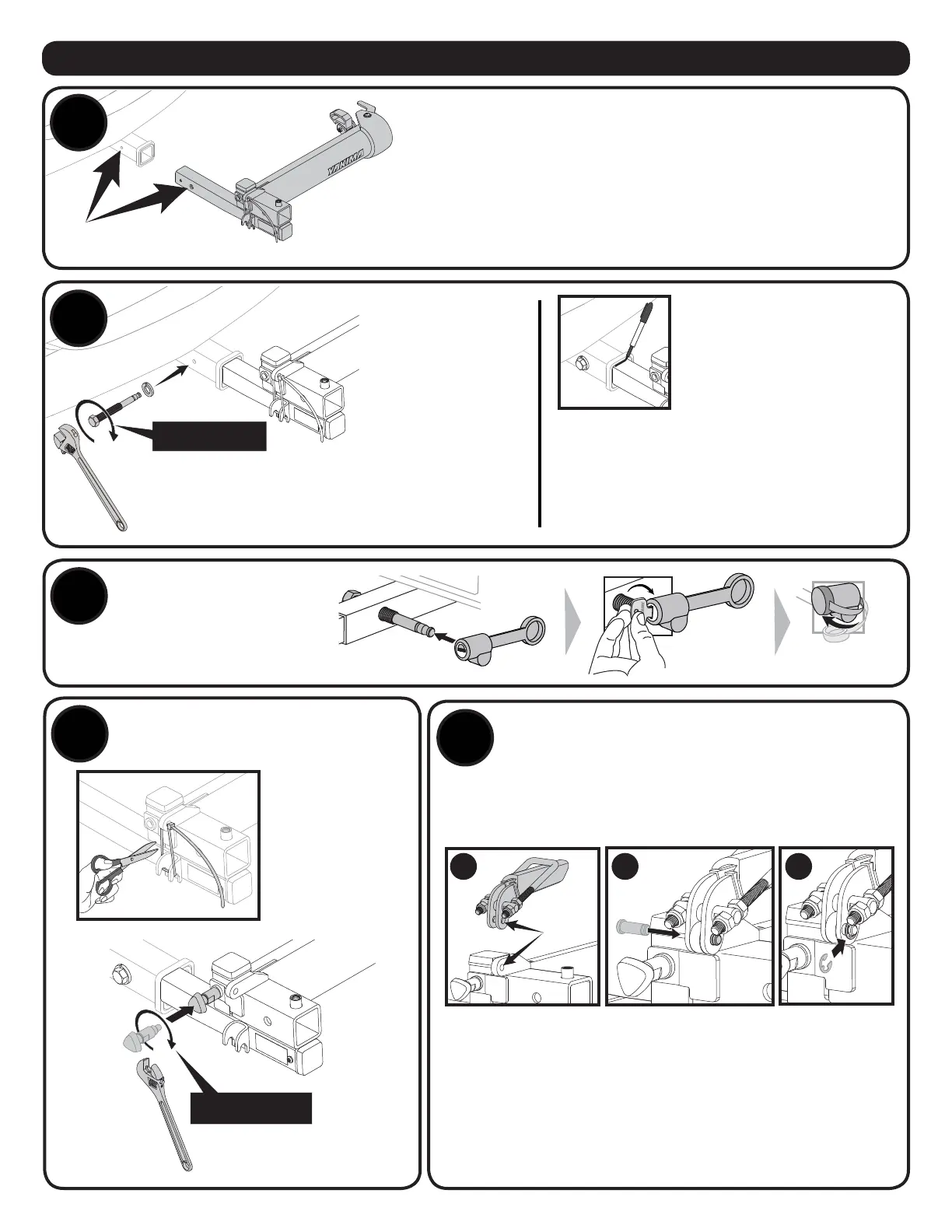

Yakima BackSwing - Installation; Insert BackSwing into Hitch Receiver; Install Hitch Bolt and Lock Washer; Install HitchLock

,167$//$7,21

ALIGN
1
t Insert BackSwing
into hitch receiver.
t The BackSwing
hole must align to
the hole in the hitch
receiver.
3
Install HitchLock.
Lock with key.
Tip: Use a permanent
marker to draw a line on
the tongue, so that you
know how far to insert
the tongue next time you
install your carrier.
4
t Cut the zip tie.
t Install spring pin with a wrench.
50 ft-lbs
t Install hitch bolt
and lock washer.
t Fully tighten with
a wrench.
2
100 ft-lbs
A. Orient the latch as shown, and
align the latch and BackSwing.
B. Insert the latch pin.
C. Secure with the e-clip clip. Note:
the second clip is a spare.
5
A
C
ALIGN
B
