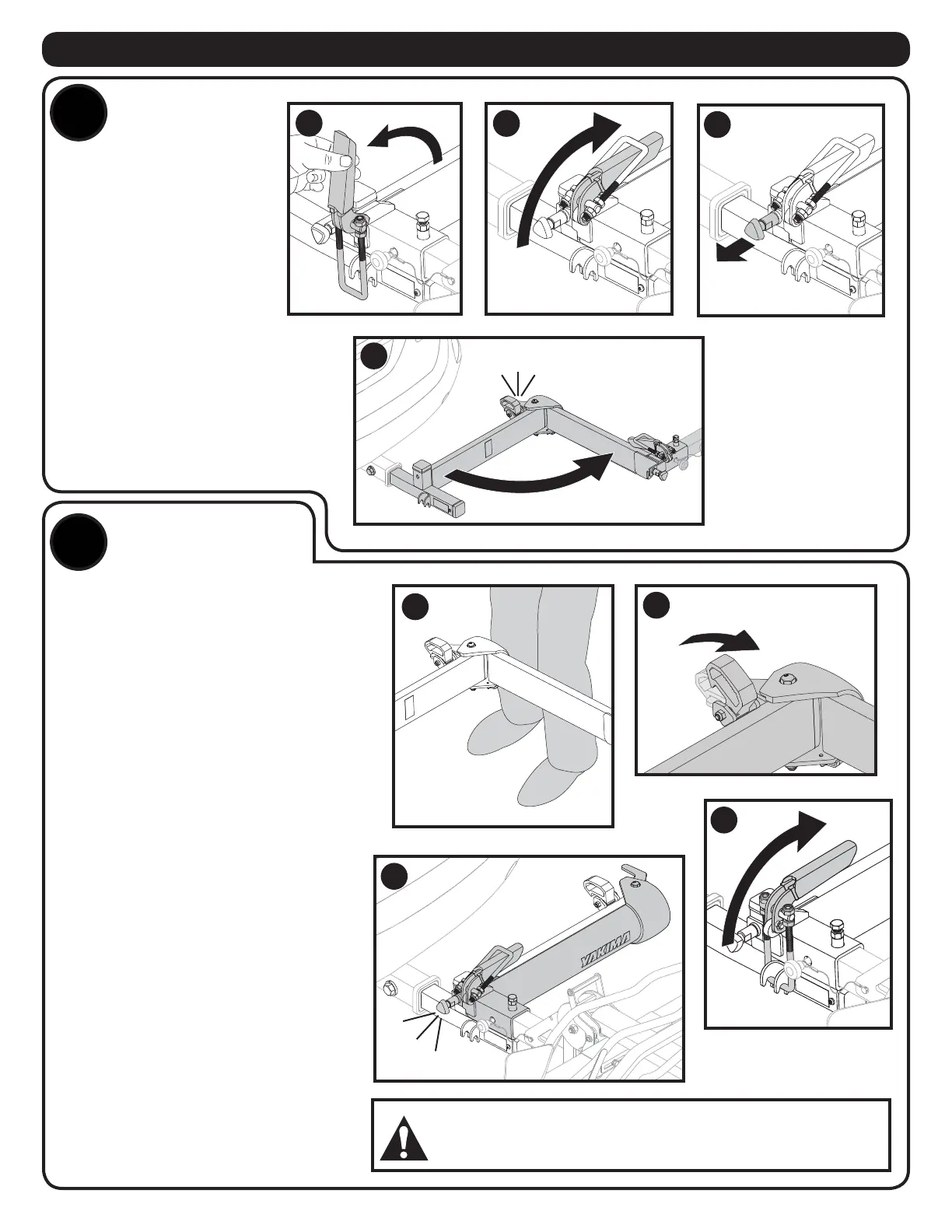

Yakima BackSwing - Operation; Open BackSwing; Close BackSwing

23(5$7,21
B
C
“click”
“clic”
D
A. Lift lever to release.
B. Open the latch.
C. Pull Spring Pin.
D. Swing open BackSwing
until it locks open. Listen
for a click.
A. Stand on the outside of the
BackSwing to stay clear of
your gear and the BackSwing.
B.
Lift the release lever.
C. Swing the BackSwing until
it closes, and the spring pin
locks into place.
D. Close the latch.
1
2
5
PPQFO#BDL4XJOH
5PDMPTF#BDL4XJOH
1PVSGFSNFSMF#BDL4XJOH
5PDMPTF#BDL4XJOH
B
Note: Release lever will be more
difficult to operate when the
product is heavily loaded.
A
“click”
“clic”
C
D
A
Latch must always be closed for safe transport.
Note: BackSwing
will operate more
smoothly when parked
on a level surface.
