Yakima DoubleHaul - PLACE ON CROSSBARS; ATTACH MOUNTING HARDWARE; TEST THE INSTALLATION

Instruction #1035940D - Page 3 of 9
Do not allow DoubleHaul to tip
and damage your vehicle!
Front and rear clamps must
remain on opposite sides of
the center couplers!
cen
t
er coup
l
er
raccords centraux
acoplador de centro
2X

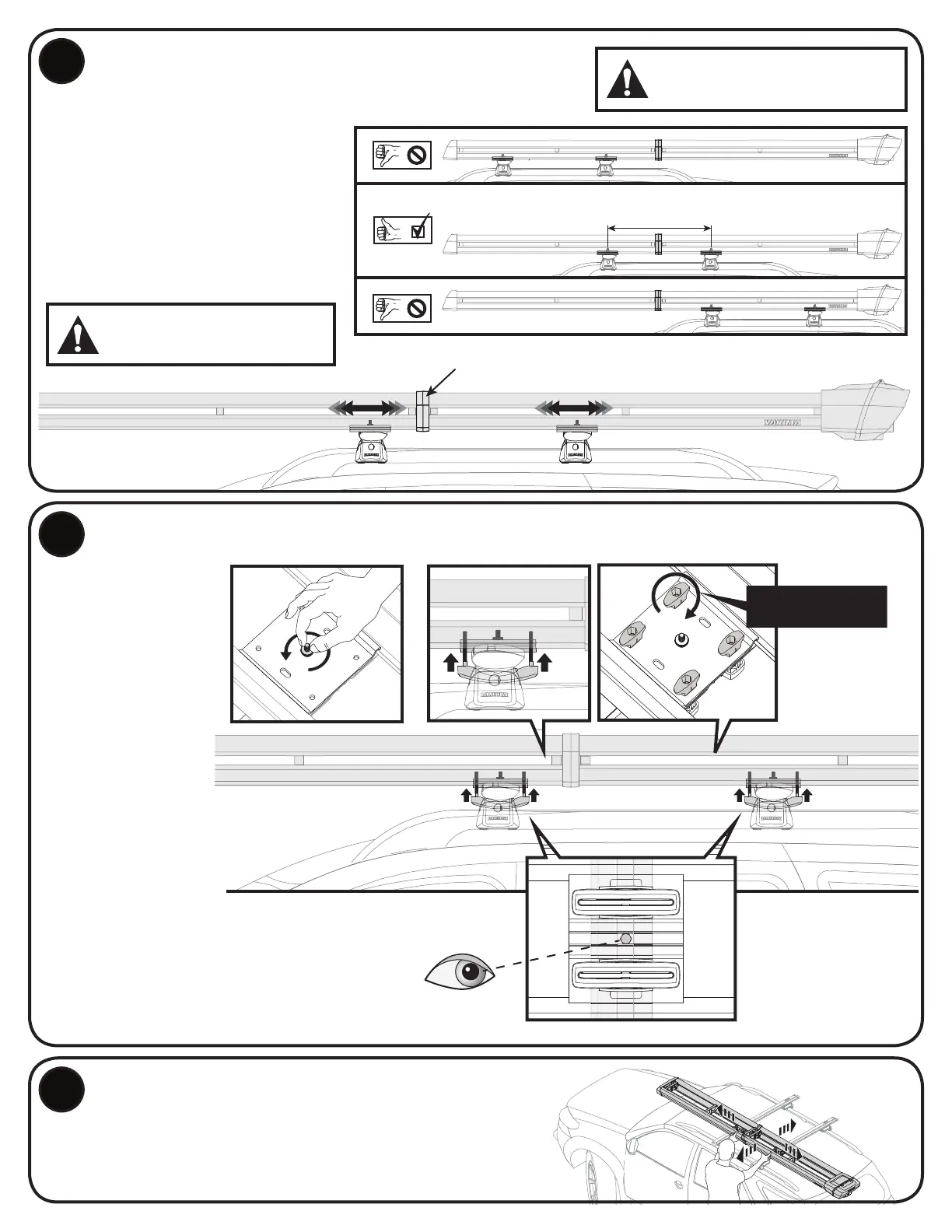

PLACE DOUBLEHAUL ONTO YOUR CROSSBARS.
• Consider rear-hatch access when
choosing your position.
• With assistance from a friend,
carefully place and position
DoubleHaul on your crossbars.
• Slide the plates so they are
centered over your crossbars.
• Continue to support DoubleHaul
as necessary until the mounts have
been fully tightened in the next step!
3
ATTACH THE MOUNTING HARDWARE.
4
2X
4X2X
8X
Guide the clamps
around the crossbar
and up through the
mounting plates,
then attach and
tighten the knobs
to 2 Nm. The
knobs must be
oriented as shown.
Then tighten the
thumbscrew (make
sure the bolt is
captured in the
underside channel).
2 Nm
27” (686 mm) Minimum
TEST THE INSTALLATION.
5
Test the installation by pulling and pushing in all
directions. The DoubleHaul should not slide or move
on the crossbars. Re-tighten the knobs if necessary.
Note: For mounting on 2"
round or 2" square steel tubing,
remove the plastic bails from
the U-bolts before assembling
the clamping system.
