Yakima DoubleHaul - INSTALLATION; JOIN THE TWO HALVES TOGETHER; LOOSEN THE MOUNTING PLATES

Instruction #1035940D - Page 2 of 9

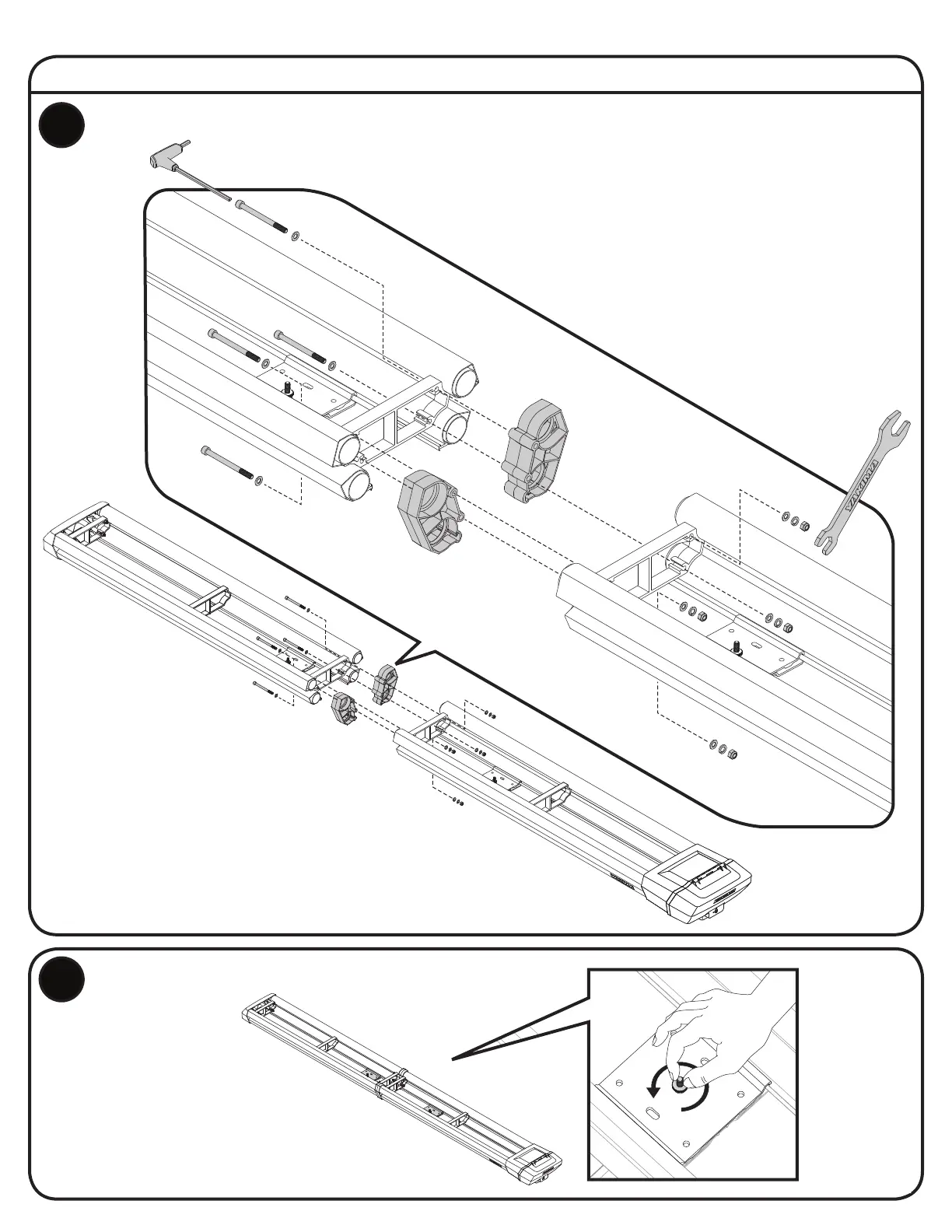

JOIN THE TWO HALVES TOGETHER.
1
INSTALLATION • INSTALLATION • INSTALACIÓN
Join the front and rear halves
together with the couplers. Using the
6 mm hex wrench and the 13 x 19mm
open wrench. Install the hardware as
shown. Tighten to 10 Nm.
Turn the thumbscrews
on the mounting
plates a few turns to
allow the mounting
plate to slide freely.
4X
2X
LOOSEN THE MOUNTING PLATES.
2
NOTE: If you wish to use DoubleHaul in its half-sized coniguration, proceed to page 5.
