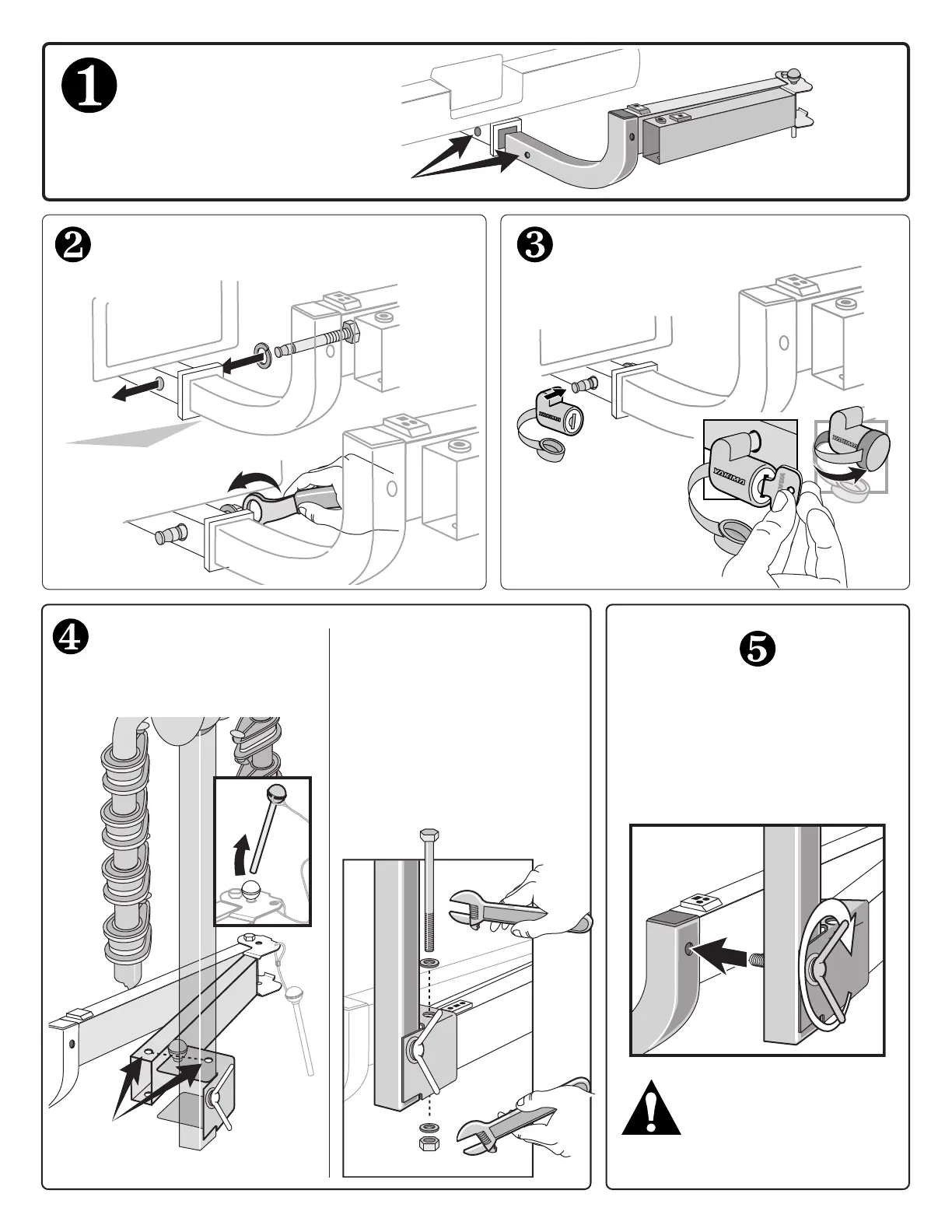

Align the holes in the receiver
to the holes in the base.
INSERT TONGUE INTO
VEHICLE'S HITCH.
LOCK THE TONGUE TO THE HITCH.
Install large bolt and lock-washer.
Install bolt from right side of receiver.
TIGHTEN with
hitch wrench.
• Insert the key and
lock the lock.
• Close the cap.
• Attach hitch lock to
end of bolt.
SECURE MAST TO
TONGUE ASSEMBLY.
• Align the mast to the tongue.
• Tighten the large wing bolt
completely.
IF SPARE TIRE CAUSES
INTERFERENCE,
DO NOT USE THIS
PRODUCT!
REMOVE BALL-PIN.
LIft the mast into position
(a friend could help).
• Insert bolt with washer;
wiggle mast until holes
align.
• Attach another washer with
nut.
• Use adjustable-end
wrenches or 3/4” wrenches.
• Turn wrench until tight, then
LOOSEN THE NUT 1/4 TURN.
ALIGN
HOLES
