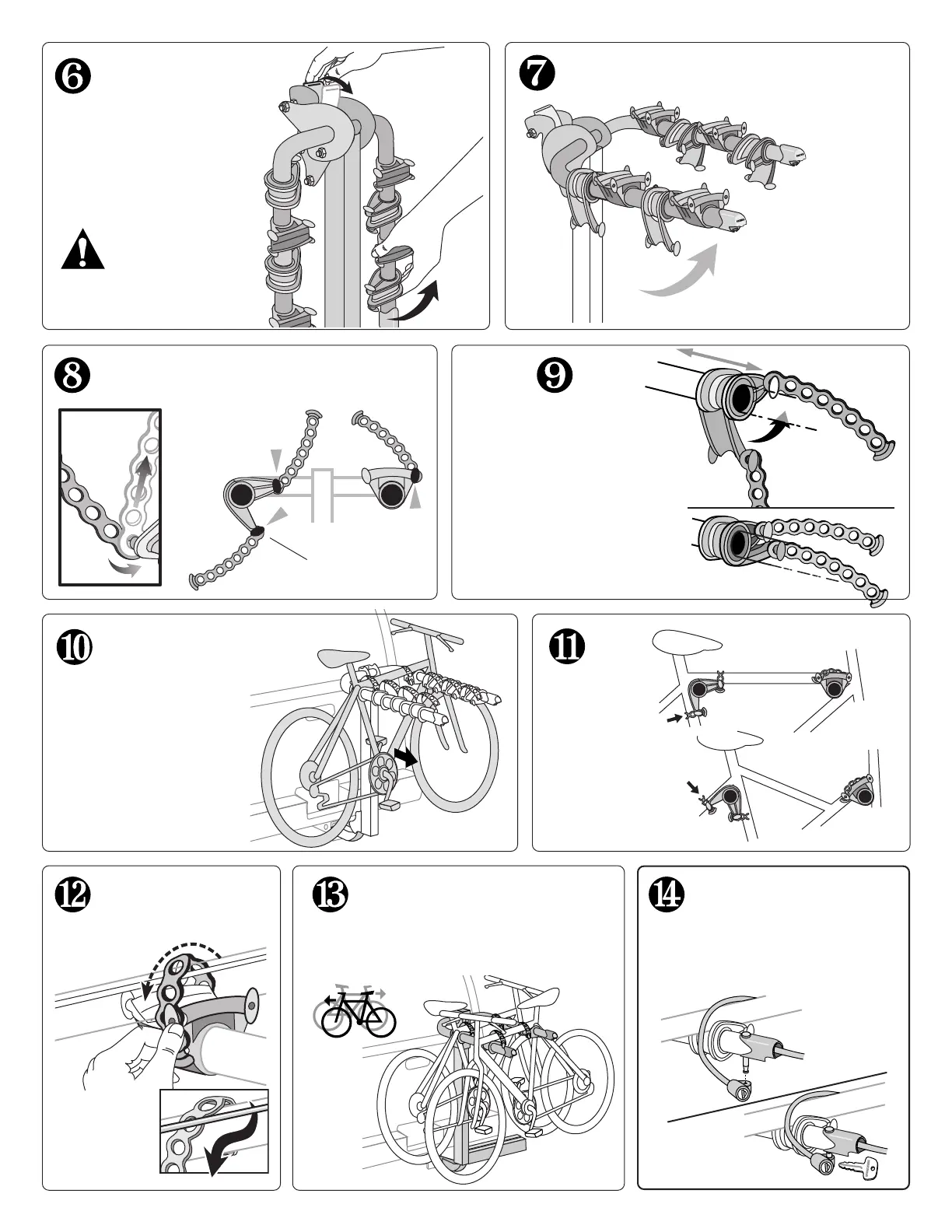

Extend arms:
LOAD LARGEST OR
HEAVIEST BIKE FIRST.
Pull straps tightly
over frame, hook
into place.
Stabilize
the bike
frame in
the cradle.
Arrange
bikes for best
stabilization.
• Always load first
bike with chain
away from vehicle.
• Compress cradles
against stabilizer.
RAISE ARMS COMPLETELY.
Arms will remain
in position.
Pull the cam lever
toward you and
lift the arms.
The straps can
be routed
under the
cables.
• Alternate bike directions to avoid
interference.
• Stabilize bike, secure all straps.
LOAD REMAINING BIKES.
LOCK BIKES TO
CARRIER.
• Pass cable through bike frame.
• Attach lock to pin.
• Lock the lock.
CRADLE
POSITIONING
To slide cradles along the
carrier arms, close cradle
and stabilizer.
Close cradles while
loading bikes.
CAUTION
Keep fingers away from
ALL moving parts!
Attach one rubber strap to each
cradle and stabilizer.
stabilizer
